Modular 1-Port Vector Network Analyzer

MS46131A

경량, 소형, 1포트 VNA. 동일한 PC에서 최대 2개의 VNA를 제어하여 Return Loss 테스트 처리량(throughput) 향상. 8/20/43.5GHz 모델로 5G 디바이스를 측정합니다.

견적 요청

다운로드

개요
Applications
Options
라이브러리

Overview

설명
Features
Calibration and Verification Kits and Components
Cables and Adapters
Accessories
Third Party Solutions
기술

ShockLine^TM MS46131A 시리즈는 1 MHz ~ 8/20/43.5 GHz 범위의 3개의 모듈식 1 포트 벡터 네트워크 분석기(VNA)로 구성됩니다. Anritsu의 특허받은 NLTL(Non-Linear Transmission Line) 기술 VNA-on-Chip 기술은 내부 VNA 아키텍처를 단순화하여 계측기의 크기와 비용을 절감하는 동시에 정확성과 측정 반복성을 향상시킵니다. ShockLine MS46131A 시리즈는 VNA 포트를 테스트 대상 장치(DUT)로 가져올 수 있을 정도로 작고 휴대성이 좋으며, 테스트 포트 케이블을 제거하여 측정 안정성을 높이고 테스트 구성을 단순화합니다.

ShockLine MS46131A 시리즈는 엔지니어링, 제조 및 교육 분야의 1 포트 RF 및 마이크로파 애플리케이션에 이상적입니다. 세 가지 VNA 모델은 모두 빠른 스위프 속도와 우수한 보정 지향성을 가지고 있어 수동 5G mmWave 부품 측정을 포함한 다양한 1 포트 디바이스 테스트 애플리케이션에 적합합니다.

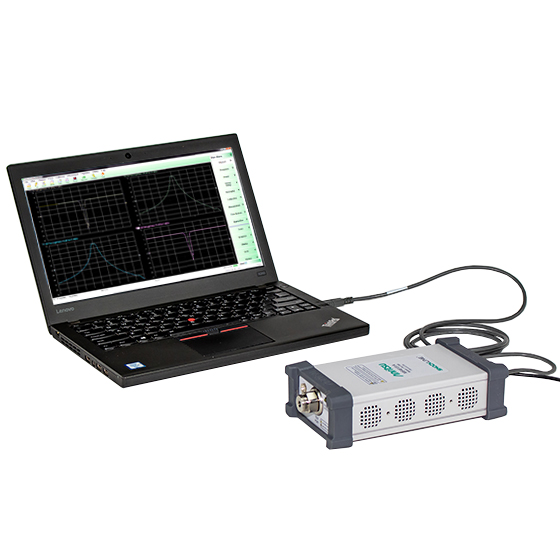

두 개의 독립형 ShockLine MS46131A VNA는 USB를 통해 외부 사용자가 제공하는 PC에서 제어 할 수 있습니다. 이 시리즈에는 온-보드(탑재된?) 메모리가 없으므로 보안 애플리케이션에서 사용이 간편합니다.

휴대성과 성능의 조합으로 ShockLine MS46131A VNA 시리즈는 모듈식 수동(패시브) 디바이스 테스트 애플리케이션에 이상적입니다.

1 MHz ~ 8 GHz / 20 GHz / 43.5 GHz의 주파수 옵션이 있는 1 포트 VNA
Extended-KTM 포트를 통해 43.5 GHz의 성능 보장
PC 제어로 외부 컴퓨터 처리 능력 및 가능
작고 가벼운 패키지로 DUT에 직접 연결가능
내장 데이터 스토리지가 없으므로 안전한 애플리케이션에서 데이터를 삭제할 필요 없음
모든 ShockLine VNA는 GUI 및 프로그램 호환성을 지원하는 공통 소프트웨어를 공유
타임 게이트 옵션이 포함된 타임 도메인으로 쉽고 빠른 결함 식별 가능

Precision Automatic Calibrator Modules

Model Number	Description
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for 36585 AutoCal module if control PC does not have a serial port)

Mechanical Calibration Kits

Model Number	Description
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Cables and Adapters

Model Number	Description
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number	Description
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number	Description
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

Tools

Model Number	Description
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.

Material Measurements

	Compass Technology Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more. Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more. Anritsu and Keycom Material Measurement Solution
	SWISSto12 Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more. Anritsu and SWISSto12 Material Measurement Solution

Shockline NLTL

Applications

RF 패시브 부품 테스트 및 문제 해결

1포트 테스트에서 43.5GHz까지
단일 PC에서 최대 2개의 1포트 VNA 제어

케이블 테스트

결함까지의 거리 (Distance to fault)
Return Loss
위상(Phase) 측정

안테나 테스트

VSWR / Return Loss
대역폭 (Bandwidth)

보안 영역 애플리케이션

장비에 데이터 스토리지 없음
직접 USB 연결을 통한 외부 컴퓨터 제어 보안

Frequency Options (select one frequency option only)

Option	Description
MS46131A-010	1 MHz — 8 GHz, type N(f) ports
MS46131A-020	1 MHz — 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
MS46131A-043	1 MHz – 43.5 GHz, type ruggedized Extended-K™ (m) ports (compatible with standard K, 3.5 mm, and SMA connectors)

Other Options

Option	Description
MS46131A-002	Time Domain with Time Gating
