Economy 벡터 네트워크 분석기

MS46322B

견적 요청

다운로드

개요
적용 분야
옵션
라이브러리

개요

설명
특징
Calibration and Verification Kits and Components
Cables and Adapters
Accessories
Third Party Solutions

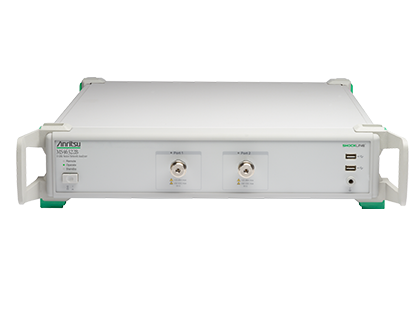

MS46322B™는 1MHz부터 8/20/43.5GHz까지의 주파수 범위를 갖는 Economy ShockLine 벡터 네트워크 분석기 시리즈입니다. 높은 주파수에서 내부 VNA 아키텍처를 간소화하고, 기기 비용을 절감하고, 정확도와 측정 반복성을 향상시키는 특허받은 ShockLine VNA 온칩 기술을 이용합니다.

MS46322B는 작고 튼튼한 2U 새시에 담긴 2포트 VNA입니다. 모든 시리즈는 스위프 속도가 초당 130 마이크로초이고 100dB 동적 영역이 43.5GHz보다 우수하여 엔지니어링, 제조 그리고 비용에 민감한 교육 분야에서 수동 장치를 시험하는 데 적합합니다.

ShockLine™ VNA는 크기가 작고 원격 프로그램이 가능하기 때문에 랙 장착 시험 시스템에 쉽게 통합됩니다. 가장 일반적인 프로그램 환경용 SCPI 지령 프로그램과 소프트웨어 드라이버를 지원합니다. 전체 제품군은 원격 제어용 산업 표준 LAN 통신을 사용합니다. ShockLine™ VNA는 장치 수동 시험을 위해 강력한 그래픽 사용자 인터페이스를 제공합니다. 사용자가 제공한 터치스크린 모니터, 키보드 그리고 마우스를 연결하여 완벽한 기능을 갖춘 사용자 인터페이스가 가능합니다.

Guaranteed performance to 43.5 GHz with Extended K™ ports
RF 및 마이크로파 장치 시험에 이상적입니다
빠른 스위프 속도와 넓은 동적 범위가 시험 횟수를 최소화하고 처리량을 극대화합니다
우수한 정정 방향성으로 측정 불확실성을 줄일 수 있습니다
시간 게이팅 옵션이 있는 시간 도메인을 사용하면 더욱 쉽고 빠르게 결함을 식별할 수 있습니다
원격 제어용 LAN 인터페이스는 USB보다 견고하고 GPIB보다 빠릅니다
표준 착탈식 하드 드라이브가 군과 정부 연구원에게 추가 안전을 제공합니다
ShockLine™ 제품군
USB 포트로 사용자 제공 모니터, 키보드 그리고 마우스에 손쉽게 연결할 수 있습니다
소형 2U 패키지로 랙 공간을 효율적으로 사용할 수 있습니다
Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction

Precision Automatic Calibrator Modules

Model Number	Description
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f)
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for use with 36585 AutoCal module

Mechanical Calibration Kits

Model Number	Description
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Verification Kits

Model Number	Description
3663-3	N Connector Verification Kit
3668-4	43.5 GHz K Connector Verification Kit

Cables and Adapters

Model Number	Description
N120-6	RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
NS120MF-6	RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NN50A	Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50	Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number	Description
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number	Description
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

External Hard Drives

Model Number	Description
2000-1858-R	Extra external hard drive with preloaded software (For MS46322B only)

Transit Case

Model Number	Description
760-269	ShockLine VNA Transit Case, Hard plastic with wheels

Tools

Model Number	Description
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.

Material Measurements

	Compass Technology Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more. Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more. Anritsu and Keycom Material Measurement Solution
	SWISSto12 Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more. Anritsu and SWISSto12 Material Measurement Solution

적용 분야

RF 및 마이크로파 수동 소자 시험 및 문제 해결

RF 및 자동차 커넥터 및 케이블
전자 기계식 스위치
감쇠기
커플러
필터
분리기
서큘레이터
위상 변환기

시스템 통합 애플리케이션

시스템 보정
경로 손실 특성화
일반 s-매개변수 및 시간 도메인 측정

무선 전력 전송 애플리케이션

KQ 제품
최대 효율

주파수 옵션(한 개의 주파수 옵션만 선택)

옵션	설명
MS46322B-010	1MHz — 8GHz, 유형 N(f) 포트
MS46322B-020	1MHz — 20GHz, 유형 고내구성 K(m) 포트(3.5mm 및 SMA 커넥터와 호환)
MS46322B-043	1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors)

기타 옵션

옵션	설명
MS46322B-001	랙 마운트, 핸들을 추가하고 피트를 제거하여 19인치 범용 랙에 장착
MS46322B-002	시간 게이팅 옵션을 가진 시간 도메인
MS46322B-024	Universal Fixture Extraction
