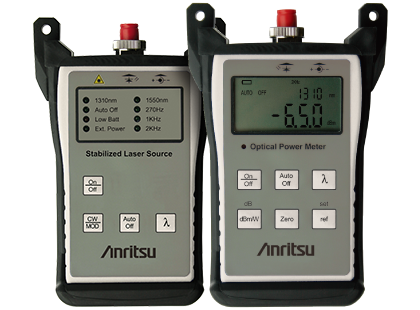

Optical Light Source / Optical Power Meter

CMA5

REQUEST A QUOTE

Downloads

Overview
Library

Overview

Features
Description

Supports MM model (850 nm / 1300 nm), SM model (1310 nm / 1550 nm)
Lightweight at only 250 g
Measures up to +23 dBm optical power (Power Meter)

The CMA5 series (Optical Light Source / Optical Power Meter) supports measurement of optical power and loss of wavelengths used by MM and SM fiber installations.

Model	5L83	5L35
Emitter type	LD	LD
Wavelength	850 nm/1300 nm ±20 nm	1310/1550 nm ±20 nm
Output power	-7 dBm(MM fiber)	-7 dBm(SM fiber)
Spectrum width	＜5 nm	＜5 nm
