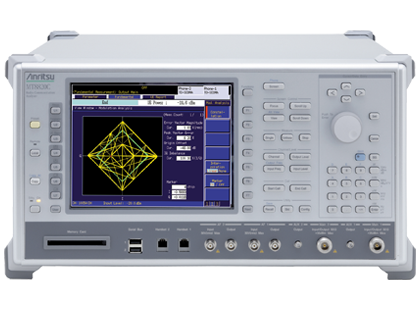

Radio Communication Analyzer MT8820C

Radio Communication Analyzer

MT8820C
This product has been discontinued Replacement Model(s) : MT8821C
Downloads
Overview
  • RF tests for LTE-Advanced DL CA and LTE terminals
  • Batch measurements for key measurement items for RF Tx tests
  • One unit supports key measurement items for RF Rx tests
  • Excellent operability cuts test and maintenance times on manufacturing lines
  • Backwards compatibility with MT8820A/B
  • Parallelphone™ measurements

One MT8820C supports high-speed batch measurements of RF TRx characteristics and call connection tests for 2G/3G/4G mobile terminals. In addition, installing the MX882012C/13C supports RF TRx tests required for manufacturing LTE FDD/TDD terminals and data cards. The MX882012C/13C supports 2x2 MIMO DL LTE Rx throughput tests too.



Communication System Software Model No.
LTE* LTE FDD Measurement Software MX882012C
LTE-Advanced FDD DL CA Measurement Software MX882012C-021*1
LTE TDD Measurement Software MX882013C
LTE-Advanced TDD DL CA Measurement Software MX882013C-021*1
LTE FDD Measurement Software Lite MX882042C*2
LTE TDD Measurement Software Lite MX882043C*2
W-CDMA W-CDMA Measurement Software MX882000C
W-CDMA Call Processing Software MX882050C*3
MX882051C*3
W-CDMA Ciphering Software MX882070C*3
MX882071C*3
HSDPA Measurement Software MX882000C-011*3
HSUPA Measurement Software MX882000C-021*3
HSPA Evolution Measurement Software MX882000C-031*3
DC-HSDPA Measurement Software* MX882000C-032*3, *4
DC-HSUPA Measurement Software* MX882000C-033*3, *5
4C-HSDPA Measurement Software* MX882000C-034*3, *6
TD-SCDMA TD-SCDMA Measurement Software MX882007C
TD-SCDMA HSDPA Measurement Software MX882007C-011*7
TD-SCDMA HSDPA Evolution Measurement Software MX882007C-012
TD-SCDMA HSUPA Measurement Software MX882007C-021*7
GSM/GPRS/EGPRS GSM Measurement Software MX882001C
EGPRS Measurement Software MX882001C-011
PHS/ADVANCED PHS PHS Measurement Software MX882005C
ADVANCED PHS Measurement Software MX882005C-011
LTE* Parallelphone Measurement Software MX882010C
W-CDMA
TD-SCDMA
GSM/GPRS/EGPRS
*: Supported by the MT8820C.
*1: For LTE-Advanced FDD/TDD CA terminal connection, contact your Anritsu sales representative for configuration.
*2: The MX882042C and MX882043C are non-Call Processing products.
*3: For supported W-CDMA terminal connections, contact your sales representative for configuration.
*4:

 DC-HSDPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011,
MX882000C-021, MX882000C-031, MX882000C-032, MX882010C and MX882050C (as well as one MT8820C).
*5:


 DC-HSUPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011,
MX882000C-021, MX882000C-031, MX882000C-032, MX882000C-033, MX882010C and MX882050C
(as well as one MT8820C).
*6:


 4C-HSDPA measurements require the MT8820C-012, MT8820C-001 (2 sets), MX882000C, MX882000C-011,
MX882000C-021, MX882000C-031, MX882000C-032, MX882000C-034, MX882010C and MX882050C
(as well as one MT8820C).
*7: For supported TD-SCDMA HSDPA/HSUPA terminal connections, contact your sales representative for configuration.
