The Signal Analyzer MS2850A is a spectrum analyzer/signal analyzer with a maximum analysis bandwidth of 1 GHz and a frequency range of 9 kHz to either 32 GHz or 44.5 GHz. It helps cut R&D and manufacturing costs for microwave and millimeter-wave wideband communications systems, such as 5G mobile and broadcast satellites, which are expected to see increasing future deployment.
1 GHz Analysis Bandwidth
The 1 GHz analysis bandwidth supports wider bands for microwave and millimeter-wave communications systems, such as 5G mobileand broadcast satellites.
The signal analyzer function using FFT (Fast Fourier transform) analysis supports spectrum displays, spectrogram displays, and applications where frequency and phase change with elapsed time. In addition, frequency bands required for 5G measurements are covered and all-in-one evaluation of multicarrier signals is supported by the 5G measurement software.
255 MHz (Standard)
510 MHz (option), 1 GHz (option)
Excellent Flatness Performance

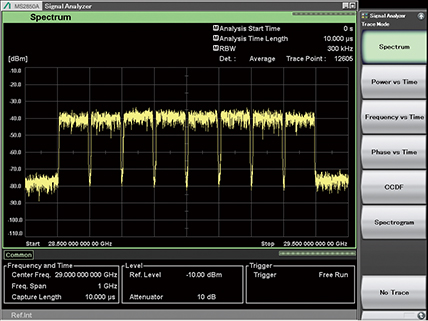

Spectrum of eight 100 MHz bandwidth carriers at 29 GHz center frequency
The amplitude and phase flatness performance*1 over a wide analysis bandwidth of 1 GHz exceed that of other signal analyzers*2. With this performance, the MS2850A supports high-accuracy amplitude and phase measurements for each carrier in wideband communications systems, such as 5G mobile, to play a key role in improving the quality of radio communications equipment.
Center Frequency: 28 GHz, at Center Frequency ±500 MHz
In-band Frequency Characteristics: ±1.2 dB (nom.)
In-band Phase Linearity: 5 deg. p-p (nom.)
*1: Stipulated as In-band Frequency Characteristics and In-band Phase Linearity in Anritsu specifications
Wide Dynamic Range
High ADC*3 Clipping Level
*2: Anritsu test at May 2017
Wide Measurement Dynamic Range at Difference from DANL*4

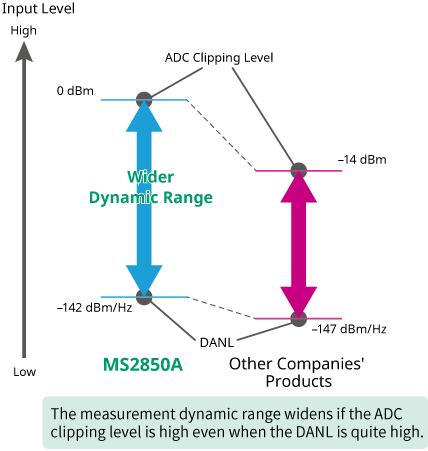

The MS2850A has a high ADC clipping level over an analysis bandwidth of 1 GHz. This performance can be used to obtain a wider difference from the DANL, which rises when inputting the actual signal input level and inputting a wideband signal when using an attenuator. This wide dynamic range performance helps obtain more accurate EVM values at measurement of 5G signals. For example, in the 28 GHz band, the measured dynamic range at the difference between the ADC clipping level and DANL is better than 140 dB (ref.).
Center Frequency: 28 GHz
ADC Clipping Level: 0 dBm*5 (CW)
DANL: -142 dBm/Hz*5
Dynamic Range: 142 dB (ref.)
*3: Analog to Digital Converter
*4: Displayed Average Noise Level
*5: meas. means value measured as design stage but not guaranteed
High SFDR (Spurious Free Dynamic Range)
-70 dBc at 1 GHz Analysis Bandwidth
The MS2850A suppresses spurious generation due to ADC over the 1 GHz analysis bandwidth, assuring a wide measurement dynamic range at wideband signal analysis.
800 MHz ≤ Frequency < 4.2 GHz: -60 dBc (nom.)
4.2 GHz ≤ Frequency ≤ 44.5 GHz: -70 dBc (nom.)
