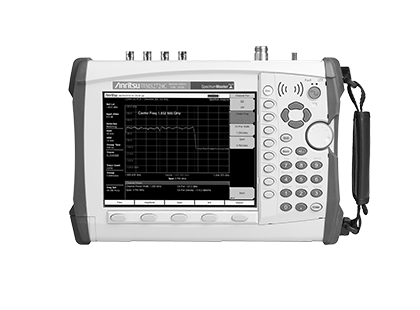

MS2724C

Spectrum Master

MS2724C
This product has been discontinued Replacement Model(s) : MS2720T
Overview

For supporting documentation, see Library tab

The Spectrum Master MS2724C is a synthesizer‑based handheld spectrum analyzer that provides quick and accurate measurement results. Measurements can be easily made by using the main instrument functions: frequency, span, amplitude, and bandwidth. Dedicated keys for common functions and a familiar calculator‑type keypad are available for fast data entry.

Options
Option Description Option Ordering Number
Option 7 Secure Data Operation MS2724C-0007
Option 31 GPS (GPS antenna required - part number 2000-1528-R) MS2724C-0031
Option 19 High Accuracy Power Meter (Power Sensor not included) MS2724C-0019
Option 25 Interference Analysis - provides a spectrogram display, signal strengh
with audible tone and RSSI (received signal strength indication)
MS2724C-0025
Option 27 Channel Scanner - adds the capability to select up to 20 channels or signals
to monitor (Great for interference mitigation)
MS2724C-0027
Option 89 Zero Span IF Output MS2724C-0089
Option 9 RF & Demodulation Hardware MS2724C-0009
Option 40 GSM/GPRS/EDGE RF Measurements (requires Option 009) MS2724C-0040
Option 41 GSM/GPRS/EDGE Demodulation (requires Opt. 009) MS2724C-0041
Option 44 W-CDMA/HSDPA RF Measurements (requires Option 009) MS2724C-0044
Option 45 W-CDMA Demodulator (requires Opt. 009) MS2724C-0045
Option 65 W-CDMA/HSDPA Demodulator (requires Option 009) MS2724C-0065
Option 35 W-CDMA/HSDPA OTA (requires Opt. 009 and 0031) MS2724C-0035
Option 60 TD-SCDMA / HSDPA RF Measurements (requires Option 009) MS2724C-0060
Option 61 TD-SCDMA Demodulator (requires Option 009) MS2724C-0061
Option 38 TD-SCDMA / HSDPA (OTA) Over the Air (requires Option 009) MS2724C-0038
Option 509 AM/FM/PM Analyzer MS2724C-0509
Option 541 LTE RF Measurements (requires option 0009) MS2724C-0541
Option 542 LTE Modulation Measurements (requires option 0009) MS2724C-0542
Option 543 LTE BW = 15 MHz, 20 MHz (requires Option 0541 or 0542 and option 0009) MS2724C-0543
Option 546 LTE Over-the-Air (OTA) Measurements (requires option 0009) MS2724C-0546
Option 551 TD-LTE RF Measurements (BW = 10 MHz) MS2724C-0551
Option 552 TD-LTE Modulation Measurements (BW = 10 MHz) MS2724C-0552
Option 556 TD-LTE Over-the-Air Measurements MS2724C-0556
Option 42 cdmaOne / CDMA 2000 1X RF Measurements (requires Option 009) MS2724C-0042
Option 43 cdmaOne/ CDMA2000 1X Demodulator (requires Option 009) MS2724C-0043
Option 33 cdmaOne / CDMA2000 1X Over The Air (OTA) Measurements
(requires Option 009 and 0031)
MS2724C-0033
Option 62 CDMA2000 1xEV-DO RF Measurements (requires Option 009) MS2724C-0062
Option 63 CDMA2000 1xEV-DO Demodulator (requires Option 009) MS2724C-0063
Option 34 CDMA2000 1xEV-DO Over The Air (OTA) Measurements
(requires Option 009 and 0031)
MS2724C-0034
Option 46 Fixed WiMAX RF Measurements (requires Option 009) MS2724C-0046
Option 47 Fixed WiMAX Demodulation (requires Option 009) MS2724C-0047
Option 66 Mobile WiMAX Demodulation (requires Option 009) MS2724C-0066
Option 67 Mobile WiMAX Demodulation (requires Option 009) MS2724C-0067
Option 37 Mobile WiMAX, Over the Air (requires Option 009) MS2724C-0037
Option 90 Gated Sweep MS2722C-0090
