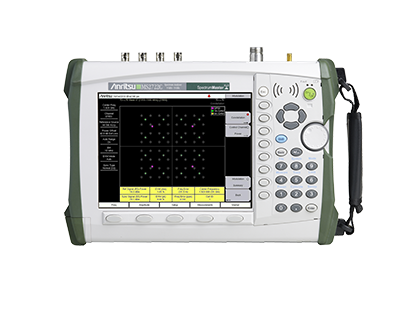

MS2722C

Spectrum Master

MS2722C
This product has been discontinued Replacement Model(s) : MS2720T
Overview

For supporting documentation, see Library tab

The Spectrum Master MS2722C is a synthesizer‑based handheld spectrum analyzer that provides quick and accurate measurement results. Measurements can be easily made by using the main instrument functions: frequency, span, amplitude, and bandwidth. Dedicated keys for common functions and a familiar calculator‑type keypad are available for fast data entry.

Options
   Option    Description Option Ordering Number
Option 7 Secure Data Operation MS2722C-0007
Option 31 GPS (GPS antenna required - part number 2000-1528-R) MS2722C-0031
Option 19 High Accuracy Power Meter (Power Sensor not included) MS2722C-0019
Option 25 Interference Analysis - provides a spectrogram display, signal strengh
with audible tone and RSSI (received signal strength indication)
MS2722C-0025
Option 27 Channel Scanner - adds the capability to select up to 20 channels or
signals to monitor (Great for interference mitigation)
MS2722C-0027
Option 89 Zero Span IF Output MS2722C-0089
Option 9 RF & Demodulation Hardware MS2722C-0009
Option 40 GSM/EDGE RF Measurements (Requires Option 9) MS2722C-0040
Option 41 GSM/EDGE Demodulation (Requires Option 9) MS2722C-0041
Option 44 W-CDMA/HSPA+ RF Measurements (Requires Option 9) MS2722C-0044
Option 65 W-CDMA/HSPA+ Demodulation (Requires Option 9) MS2722C-0065
Option 35 W-CDMA/HSPA+ OTA Measurements (Requires Option 9 & 31) MS2722C-0035
Option 60 TD-SCDMA/HSPA+ RF Measurements (Requires Option 9) MS2722C-0060
Option 61 TD-SCDMA/HSPA+ Demodulation (Requires Option 9) MS2722C-0061
Option 38 TD-SCDMA/HSPA+ OTA Measurements (Requires Option 9) MS2722C-0038
Option 509 AM/FM/PM Analyzer MS2722C-0509
Option 541 LTE RF Measurements MS2722C-0541
Option 542 LTE Modulation Measurements MS2722C-0542
Option 543 15 & 20 MHz LTE Modulation Measurements (Requires Option 9 & 541, 542, 551 or 552) MS2722C-0543
Option 546 LTE OTA Measurements (Requires Option 9, and Option 31 recommended) MS2722C-0546
Option 551 TD-LTE RF Measurements (Requires Option 9) MS2722C-0551
Option 552 TD-LTE Modulation Measurements (Requires Option 9) MS2722C-0552
Option 556 TD-LTE OTA Measurements  (Requires Option 9, and Option 31 recommended) MS2722C-0556
Option 42 CDMA RF Measurements (Requires Option 9) MS2722C-0042
Option 43 CDMA Demodulation (Requires Option 9) MS2722C-0043
Option 33 CDMA OTA Measurements (Requires Option 9 & 31) MS2722C-0033
Option 62 EV-DO RF Measurements
(Requires Option 9)
MS2722C-0062
Option 63 EV-DO Demodulation (Requires Option 9) MS2722C-0063
Option 34 EV-DO OTA Measurements (Requires Option 9 & 31) MS2722C-0034
Option 46 Fixed WiMAX RF Measurements (Requires Option 9) MS2722C-0046
Option 47 Fixed WiMAX Demodulation (Requires Option 9) MS2722C-0047
Option 66 Mobile WiMAX RF Measurements (Requires Option 9) MS2722C-0066
Option 67 Mobile WiMAX Demodulation (Requires Option 9) MS2722C-0067
Option 37 Mobile WiMAX OTA Measurements (Requires Option 9, and Option 31 recommended) MS2722C-0037
Option 90 Gated Sweep MS2722C-0090
Option 431 Coverage Mapping (Requires Option 31) MS2722C-0431
Option  24 IQ Waveform Capture (Requires Option 9) MS2722C-0024
