Bare Fiber Connector

This product has been discontinued

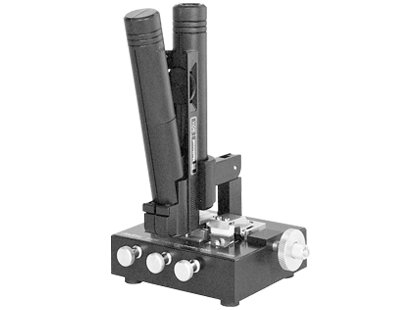

The MP922B is a bare fiber connector using a V shaped groove to temporarily and quickly connected optical fiber cores. The V-groove and fiber alignment can be observed with the attached microscope. This permits fine control of distance between optical fiber end surfaces, and allows low loss single mode fiber connection. The MP922B is ideal for the measurement of bare fiber when using an OTDR.
  • No special technical training required
  • Low loss connection even for single mode and multi mode fibers
  • Usable for optical fibers with jacket diameters from 0.25 to 1.2 mm
