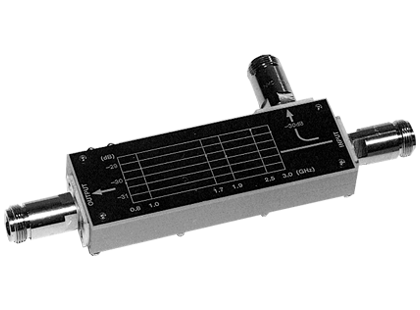

Directional Coupler

This product has been discontinued

The MP654A is used to branch one part of the transmitted output for such measurements as those of fundamental wave and higher harmonic spurious characteristics using a spectrum analyzer. The MP654A is used for measuring personal radio transceivers and automobile telephones.

  • Frequency: 0.8 to 3 GHz
  • Impedance: 50 ohm (N-type connector)
  • Coupling:  Approximately 30 dB
  • Input Power: 50 W
