Distributed Modular 2-port Vector Network Analyzer

ME786xA
2-port USB VNA systems deliver phase synchronized measurements up to 100 meters, improves dynamic range, measurement stability of s-parameter measurements, 8, 20, and 43.5 GHz
Overview

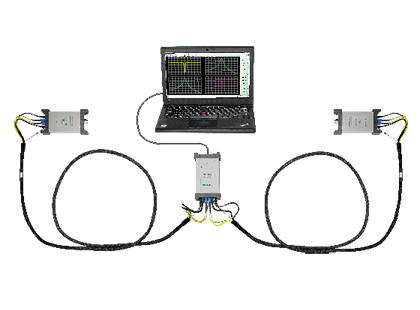

The ShockLine™ ME7868A/ME7869A system is the first distributed, fully reversing 2-port VNA solution that provides guaranteed performance from 1 MHz to 43.5 GHz by utilizing Anritsu’s Extended-K™ components. Powered by the revolutionary PhaseLync™ technology, it enables engineers to synchronize two portable ShockLine MS46131A VNAs and connect them directly to a DUT to conduct vector transmission measurements at distances up to 100 meters. Whether in a manufacturing, engineering, or education environment, this solution simplifies long-distance S-parameter measurements and VNA test system integration by removing the need to utilize conventional benchtop VNAs with long cable runs, which eliminates insertion loss, improves measurement stability, and lowers setup costs.

The ShockLine ME7868A/ME7869A offers a configurable VNA setup to maximize hardware utilization. Easily set VNA port count (single 1-port, dual 1-ports, or single 2-ports) from session-by-session to ensure maximum flexibility. With low-pass time domain with time gating option, users have access to a TDR-like display with more resolution than bandpass time domain for characterizing discontinuities. Because there is no onboard data storage, this eliminates the need to purge data for secure applications.

  • 2-port VNA with frequency options from 1 MHz to 8 GHz / 20 GHz / 43.5 GHz (options for 20, 50, and 100 meters)
  • Extend remote ports 100 meters apart with PhaseLync synchronization
  • Small and lightweight ports enable direct connection to DUT eliminating long cable runs
  • Guaranteed performance to 43.5 GHz with Extended-K™ ports
  • PC control takes advantage of external computer processing power and functionality
  • No on-board data storage makes use in secure applications more convenient
  • Common ShockLine control software delivers powerful debug and test capabilities
  • PhaseLync control modules MN25132A

Precision Automatic Calibrator Modules

Model Number Description
MN25208A 2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
MN25408A 4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A 2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A 4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R Serial to USB Adapter (required for 36585 AutoCal module if control PC does not have a serial port)

Mechanical Calibration Kits

Model Number Description
3650A SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1 SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Cables and Adapters

Model Number
Description
1091-26-R
SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R
SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R
SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R
SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R
Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50
Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50
Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50
Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50
Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B
Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B
Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B
Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C
Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C
Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C
Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A
Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A
Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A
Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A
Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number Description
15NNF50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60 Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R
Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number Description
3670N50-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

Tools

Model Number Description
01-200 Calibrated Torque End Wrench, GPC-7 and Type N
01-201 Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203 Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204 End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
