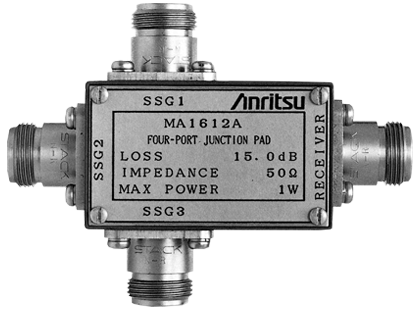

Four-Port Junction Pad

MA1612A
Overview
  • Frequency Range:
    • 5 MHz to 3 GHz
  • Insertion Loss:
    • 15 ±1.0 dB (<1 GHz) / 15 ±1.5 dB (≥1 GHz)
  • Maximum Allowable Power - 1 W

The MA1612A is used as an impedance matching box applying the mixed output of three RF signal generators to a receiver input terminal for measurement of three-signal characteristics (such as receiver SINAD performance).
