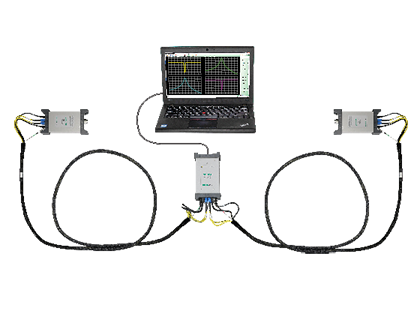

模組化雙埠向量網路分析儀

ME786xA

這款雙埠 USB VNA 可在長達 100 公尺的距離提供相位同步測量，改善 S 參數測量的動態範圍和量測穩定性，支援 8/20/43.5 GHz 的頻率量測範圍。

索取報價

下載

概述
應用
選項
資料庫

Overview

描述
特色
校正及驗證套件
電纜和轉接頭
配件
第三方合作解決方案

ShockLine™ ME7868A/ME7869A 系統是首款分佈式、全反向雙埠網路分析儀解決方案，透過 Anritsu 的 Extended-K™ 元件，其可支援 1 MHz 到 43.5 GHz 的頻率量測範圍；藉由專利 PhaseLync™ 技術，讓工程師能將兩個便攜式 ShockLine MS46131A 向量網路分析儀同步並直接連接到待測設備 (DUT)，其可在分開 100 公尺或更遠的距離進行向量傳輸測量。無論是在製造、工程還是教育環境中，這個解決方案都簡化了長距離 S 參數量測和網路分析儀測試系統的整合，因無需使用傳統的桌上型網路分析儀進行長電纜連接，從而消除插入損耗、提升量測穩定性以及降低設置成本。

ShockLine ME7868A/ME7869A 提供可配置的 VNA 設置，以最大化硬體使用率；其可根據不同活動進行調整，輕鬆設定 VNA 端口數 (單 1 端口、雙 1 端口或單 2 端口)，以確保最大靈活性。具有低通時域和時間閘選項，用戶可使用比帶通時域更高分辨率的 TDR-like 顯示來表徵不連續性。由於沒有內建的數據儲存空間，其免除了在安全應用中清理數據的需求。

雙埠 VNA 具有 1 MHz 到 8 GHz / 20 GHz / 43.5 GHz 的頻率選項 (選項為 20、50 和 100 米)
使用 PhaseLync 同步技術，將遠端端口延伸到 100 公尺
小巧輕便的端口可直接連接到待測設備 (DUT)，省去了長距離的電纜連接
Extended-K™ 端口確保了 43.5 GHz 的性能
PC 控制充分利用外部電腦的處理能力和功能
設備沒有數據儲存空間，適用於機密的測試環境
通用的 ShockLine 控制軟體提供強大的除錯和測試功能
PhaseLync 控制模組 MN25132A

精密自動的校正器模組

型號	說明
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for 36585 AutoCal module if control PC does not have a serial port)

機械校正套件

型號	說明
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Verification Kits

Model Number	Description
3663-3	N Connector Verification Kit (for use with MS46122B, MS46322B, MS46522B, MS46524B ShockLine VNAs and ME7869A PhaseLync VNA Systems
3668-4	43.5 GHz K Connector Verification Kit (for use with MS46122B, MS46322B, MS46522B, MS46524B ShockLine VNAs and ME7869A PhaseLync VNA Systems

電纜和轉接頭

型號	說明
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

測試連接埠電纜－靈活、堅固、相位穩定

型號	說明
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

相位穩定的半剛性測試埠電纜

型號	說明
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

工具

型號	說明
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Transit Cases

Part Number	Description
760-299-R	Transit case for the ME7869A VNA system
760-295-R	Transit case for the ME7868A VNA system

Anritsu 安立知與下列業界領先的公司合作，提供各種與 VectorStar 和 ShockLine 向量網路分析儀系列相容的測量功能。

Material Measurements

	Compass Technology 從現有或客製化設計的射頻材料測量系統中進行選擇，能夠測量 100 MHz 至 90 GHz 的材料屬性，這些解決方案包括：聚焦光束、諧振腔、波導、點探針、自由空間測量系統等。 Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies 從利用各種方法的不同材料測量解決方案中進行選擇，包含：諧振器、頻率變化、探針類型、同軸管和波導型 S 參數、自由空間、電容、測量法等。 Anritsu and Keycom Material Measurement Solution
	RanLOS RanLOS provides innovative and cost-effective OTA test solutions for evaluating antennas and wireless communication. With patented hardware and proprietary software, developed through years of research, RanLOS enables fast and reliable testing – helping companies speed up development and optimize real-world wireless performance. Full-Scale Vehicle Antenna and OTA Measurements Solution
	SWISSto12 提供能夠測量軟硬體的技術，包含：固體樣品、軟樣品和泡沫、液體樣品和粉末、薄膜、介電塗層和多層材料、氧化鋁板等。 Anritsu and SWISSto12 Material Measurement Solution

應用

長距離的 S 參數測量

長電纜插入損耗測試
天線測試
無線測試 (OTA 應用)

暗室安裝
大型車輛的 RF 屏蔽和傳播測試

系統整合之應用

系統校正
路徑損耗特性測試
一般 S 參數和時域測量

安全區域應用

單元上無數據儲存空間
透過 USB 直接連接安全的外部電腦控制

相關連結

選項

ME7869A 常見的選件

選項	說明
ME7869A-010	8 GHz, 2 port VNA system
ME7869A-020	20 GHz, 2 port VNA system
ME7869A-043	43.5 GHz, 2 port VNA system
每個 MS46131A VNA 皆須訂購一個 PhaseLync 同步選項軟體
MS46131A-025	Option 25, PhaseLync synchronization to 20 meters
MS46131A-050	Option 50, PhaseLync synchronization to 50 meters
MS46131A-100	Option 100, PhaseLync synchronization to 100 meters
須從下表選擇訂購 2 套電纜組合 (電纜組合的總長須在 PhaseLync 同步選項軟體的長度範圍內)
2000-2123-R	PhaseLync 2 meter cable set
2000-2124-R	PhaseLync 5 meter cable set
2000-2125-R	PhaseLync 10 meter cable set
2000-2126-R	PhaseLync 25 meter cable set
2000-2127-R	PhaseLync 50 meter cable set
2000-2128-R	PhaseLync 75 meter cable set
Other Options
MS46131A-002	Time Domain with Time Gating (required for each MS46131A)

ME7869A 常見的選件

選項	說明
ME7868A-010-2	8 GHz, 2 meter system
ME7868A-010-5	8 GHz, 5 meter system
ME7868A-010-25	8 GHz, 25 meter system
ME7868A-020-2	20 GHz, 2 meter system
ME7868A-020-5	20 GHz, 5 meter system
ME7868A-020-25	20 GHz, 25 meter system
ME7868A-043-2	43.5 GHz, 2 meter system
ME7868A-043-5	43.5 GHz, 5 meter system
ME7868A-043-25	43.5 GHz, 25 meter system
Other Options
MS46131A-002	Time Domain with Time Gating (required for each MS46131A)

相關連結

資料庫

摺頁冊

摺頁冊	發行日期
Vector Network Analysis Product Portfolio	2026/10/6
ShockLine ME7869A Modular 2-port VNA Enabled by PhaseLync Quick Fact Sheet	2023/8/1
ShockLine ME7868A Modular 2-Port Vector Network Analyzer System Quick Fact Sheet	2020/9/11
ShockLine Vector Network Analyzer Family Product Brochure	2020/8/4

資料表

資料表	發行日期
ShockLine Modular 2-Port VNA ME7868A Technical Data Sheet	2025/12/2
ShockLine Modular 2-port PhaseLync VNA ME7869A Technical Datasheet	2025/12/2
ShockLine Modular Vector Network Analyzer MS46131A Technical Data Sheet	2025/9/19
EU Declaration of Conformity for the ShockLine Modular 2-port VNA ME7868A	2020/8/4

應用說明

應用說明	發行日期
ShockLine ME7869A Over-the-Air (OTA) Chamber Solution Application Flyer	2025/3/18
ME7869A Outdoor Antenna Range Test Solution Application Flyer	2025/3/18
ME7869A Large Vehicle Over-the-Air (OTA) Test Solution	2025/3/18
ME7869A Large Vehicle Cable Test Solution Application Flyer	2025/3/18
Improving High Frequency S-Parameter Measurements by Moving the VNA Port to the DUT Application Note	2024/8/22
Dielectric Measurement Solutions for Materials Utilized in Millimeter Wave - Keycom x Anritsu Dielectric Constant Measurement Systems	2024/7/1
ME7868A Large Vehicle Cable Test Solution Application Flyer	2021/11/30
Distributed Port Approach to Network Analyzer Measurements Over Distance	2021/10/19

產品介紹

產品介紹	發行日期
Millimeter Wave Measurement Solutions	2026/1/29
Non-Terrestrial Networks (NTN) Test Solutions	2025/8/17

傳單

傳單	發行日期
Automotive Testing & Verification Solutions	2026/4/27
Full-Scale Vehicle Antenna and OTA Measurements	2025/4/16
PhaseLync Enabled 2-port Distributed VNA ShockLine ME7869A	2023/6/12
Material Measurement Solution – Focusing on 5G and 6G Application Flyer	2023/2/15
ME7868A Large Vehicle Cable Test Solution Application Flyer	2021/11/16
ME7868A Large Vehicle Over-the-Air (OTA) Test Solution Application Flyer	2021/10/19
ME7868A Outdoor Antenna Range Solution Application Flyer	2021/10/19
ShockLine ME7868A Over-the-Air (OTA) Chamber Solution Application Flyer	2021/10/19
Anritsu, Diamond Engineering, and Diamond Microwave Chambers Antenna Measurement Solution	2020/8/26

案例研究

案例研究	發行日期
5G Smart Surface Test Challenge Met by ShockLine Modular 2-port VNA Case Study	2023/10/18

目錄	發行日期
Electronic Measuring Instruments Digest 2026 Catalog（中文繁體）	2026/4/20
Electronic Measuring Instruments Digest 2026 Catalog	2026/1/14

快速入門指南

快速入門指南	發行日期
ShockLine Series VNA Verification Kits and Performance Verification Software Quick Start Guide	2025/10/21
ME7868A Modular 2-Port Vector Analyzer System Quick Start Guide	2025/5/2

作業手冊

作業手冊	發行日期
ShockLine Modular Vector Network Analyzer MS46131A Operation Manual	2025/5/2
MN25131A Multi-Function Extender Module Operation Manual	2020/8/4

使用者手冊

使用者手冊	發行日期
ShockLine User Interface Reference Manual	2025/5/2

度量指南

度量指南	發行日期
ShockLine MS46122A/B and MS46322A/B Calibration and Measurement Guide	2023/8/9

程式設計手冊

程式設計手冊	發行日期
ShockLine VNA Programming Manual	2025/5/2

維護手冊

維護手冊	發行日期
ShockLine Modular Vector Network Analyzer Maintenance Manual	2023/9/22

文章

文章	發行日期
Improving Stability and Accuracy of High Frequency VNA Measurements Over Distance Article	2020/8/26
