經濟型向量網路分析儀

MS46322B

索取報價

下載

概述
應用
選項
資料庫

概述

描述
功能
Calibration and Verification Kits and Components
Cables and Adapters
Accessories
Third Party Solutions

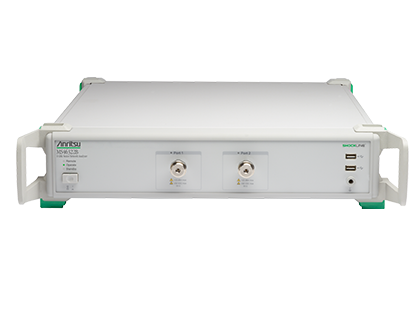

MS46322B 是由經濟型 ShockLine™ 向量網路分析儀組成的系列，可量測 1 MHz 至 8/20/43.5 GHz 的頻率範圍。此系列採用專利 ShockLine VNA 晶片技術，在高頻率上簡化內部 VNA 架構，除了減少儀器成本，更能提升準確度和量測的複現性。

MS46322B 皆為雙埠 VNA，封裝於精巧堅固的 2U 主機殼中。全系列皆具有每點 130 微秒的掃描速度，兼具優於 100 dB 的動態範圍，量測頻率可達 43.5 GHz，適合在工程、製造及預算有限的教育領域中執行無源裝置測試。

ShockLine™ VNA 體積精巧且可遠端程式控制，可輕鬆整合至機架安裝測試系統。支援 SCPI 命令程式設計與軟體驅動程式，可相容於最常見的程式設計環境。全系列均使用工業標準網路通訊協定 (LAN) 通訊技術，以執行遠端控制。ShockLine™ VNA 亦提供強大的圖形化使用者介面，可方便手動測試裝置。可自行連接觸控螢幕、鍵盤及滑鼠（由使用者提供），啟用完整的使用者介面。

Guaranteed performance to 43.5 GHz with Extended K™ ports
適合測試射頻與微波裝置
掃描速度快且動態範圍廣，將測試時間縮至最短，輸送量提升至最高
優異的指向校正功能可減少量測的不確定性
時域選項附帶按時選通功能，可更輕鬆快速地識別錯誤
遠端控制的 LAN 介面比 USB 更可靠，且比 GPIB 更快速
標準可卸除式硬碟可為軍隊及政府研究使用者提供更滴水不漏的使用安全
採行 ShockLine™ 系列通用的 GUI 和 SCPI 介面
USB 連接埠可輕鬆連接使用者本身的螢幕、鍵盤及滑鼠
小型 2U 主機殼可有效利用機架空間
Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction

Precision Automatic Calibrator Modules

Model Number	Description
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f)
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for use with 36585 AutoCal module

Mechanical Calibration Kits

Model Number	Description
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Verification Kits

Model Number	Description
3663-3	N Connector Verification Kit
3668-4	43.5 GHz K Connector Verification Kit

Cables and Adapters

Model Number	Description
N120-6	RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
NS120MF-6	RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NN50A	Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50	Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number	Description
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number	Description
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

External Hard Drives

Model Number	Description
2000-1858-R	Extra external hard drive with preloaded software (For MS46322B only)

Transit Case

Model Number	Description
760-269	ShockLine VNA Transit Case, Hard plastic with wheels

Tools

Model Number	Description
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.

Material Measurements

	Compass Technology Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more. Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more. Anritsu and Keycom Material Measurement Solution
	SWISSto12 Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more. Anritsu and SWISSto12 Material Measurement Solution

應用

射頻及微波無源元件測試與疑難排解

射頻及汽車接頭與電纜
機電開關
衰減器
耦合器
濾波器
隔離器
循環器
相位轉移裝置

系統整合應用

系統校準
路徑損耗特徵
一般 S 參數與時域量測

無線功率傳輸應用

KQ 產品
最大效率

相關連結

選項

頻率選項（僅選擇一個頻率選項）

選項	描述
MS46322B-010	1 MHz — 8 GHz，N(f) 型埠
MS46322B-020	1 MHz — 20 GHz，強化 K(m) 型埠（相容於 3.5 mm 與 SMA 接頭）
MS46322B-043	1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors)

其他選項

選項	描述
MS46322B-001	機架式安裝，添加把手並移除腳輪，可以擱架方式安裝到 19 英吋的通用機架中
MS46322B-002	時域附帶按時選通功能
MS46322B-024	Universal Fixture Extraction

相關連結

資料庫

摺頁冊

摺頁冊	發行日期
Anritsu's RF and Microwave Test and Measurement Solutions Product Brochure	2022/12/21
Vector Network Analysis Product Portfolio	2022/12/19
Anritsu and Polar Instrument Solution for Delta-L 4.0 Measurement Based on Atlas SI Software with Anritsu 4-Port Benchtop VNAs Solution Flyer	2022/5/11
5G Solutions Catalog 2021	2021/11/30
VNA Fundamentals Poster	2021/4/30
ShockLine Vector Network Analyzer Family Product Brochure	2020/8/4
ShockLine Economy VNA MS46322B Quick Fact Sheet	2019/6/4

資料表

資料表	發行日期
ShockLine Economy VNA MS46322B Technical Data Sheet	2022/4/5
Compact ShockLine VNA Declaration of Conformity	2019/4/10

應用說明

應用說明	發行日期
Accessing 43.5 GHz Measurements with Traceability Application Note	2020/6/30
Material Measurements with Vector Network Analyzers Application Note	2020/5/26
Electro-Optical Measurements Using Anritsu VNAs	2020/1/24
Factors in Choosing a VNA for Microwave Applications in Manufacturing Application Note	2019/12/11
Distinction Between TRL and LRL	2019/3/26
Technique for Improving Low Insertion Loss VNA Measurements Application Note	2018/9/25
Electrical-to-Optical and Optical-to-Electrical (E/O and O/E) converter measurements	2018/2/6
Understanding Vector Network Analysis Application Note	2017/7/27
LRL-LRM Calibration Theory and Methodology Application Note	2017/3/21
VNA Signal Integrity Measurement Challenges Application Brief	2016/9/12

傳單

傳單	發行日期
Anritsu and Compass Technology Group Material Measurements Solution	2022/1/27
Anritsu and SWISSto12 Material Measurements Solution	2022/1/27
Anritsu and Keycom Material Measurement Solution	2022/1/27
Anritsu, Diamond Engineering, and Diamond Microwave Chambers Antenna Measurement Solution	2020/8/26
Anritsu Vector Network Analyzers — The Perfect Tool for Electro-Optical Measurements	2018/2/6

白皮書

白皮書	發行日期
Superposition vs. True-Balanced: What's Required for your Signal Integrity Application White Paper	2018/8/23
Modern Architecture Advances Vector Network Analyzer Performance White Paper	2016/11/8

選取指南

選取指南	發行日期
ShockLine Vector Network Analyzers Selection Guide	2020/4/1

目錄	發行日期
Precision RF & Microwave Components Catalog	2022/7/26

快速入門指南

快速入門指南	發行日期
ShockLine Series Vector Network Analyzers Verification Kits and Performance Verification Software	2022/4/5

作業手冊

作業手冊	發行日期
ShockLine MS46322A and MS46322B Series Operation Manual	2022/4/5

使用者手冊

使用者手冊	發行日期
ShockLine MS46121A/B, MS46122A/B, MS46322A/B User Interface Reference Manual	2022/4/5

度量指南

度量指南	發行日期
ShockLine MS46122A/B and MS46322A/B Calibration and Measurement Guide	2022/4/5

程式設計手冊

程式設計手冊	發行日期
ShockLine MS46xxxA/B and MS4652xB VNA Programming Manual	2022/4/5

維護手冊

維護手冊	發行日期
ShockLine™ Vector Network Analyzer Maintenance Manual, MS46322A, MS46322B	2022/11/4
