MS46121B 是 PC 控制型單埠 USB ShockLine 向量網路分析儀系列，共有兩款，頻率範圍分別為 40 MHz 到 4 GHz 和 150 kHz 到 6 GHz。MS46121B 是一款低成本和空間緊湊型解決方案，可為單埠量測提供卓越的效能和精準度，外形小到可以直接連接到接受測試的裝置。MS46121B 全系列產品是專為製造、工程設計和教育領域的射頻和微波應用而設計。MS46121B 系列中的兩款產品都具有每點 120 微秒的掃描速度和 +/- 0.5 dB（-6 dB 典型偏移值）的量測精準度，是無源裝置測試應用的理想選擇。
此新款超小型 VNA 透過使用者 PC 上的 USB 實現外部控制。可透過執行 ShockLine 軟體的同一電腦來控制多達 16 個獨立的 MS46121B VNB。這樣可以在實際應用中對單埠設備實現並行多網站測試，與傳統單 VNA 以及開關矩陣測試解決方案相比，此解決方案可以提升輸送量。若新增選項 21「標量傳輸」，將允許在多個 MS46121B VAN 之間進行標量量測（僅限幅度）。此系列不具有任何機上記憶體，這可在安全應用中令其使用得更為簡單。MS46121B 系列 VNA 成本更低、體積小巧、效能良好且可平行作業，是要求高效能和多網站測試的無源單埠裝置測試應用的理想選擇。
- 單埠 VNA 的頻率範圍為 150 kHz – 6 GHz
- 外部 PC 控制功能可以並行控制多個 MS46121B 以實現卓越的多網站輸送量。

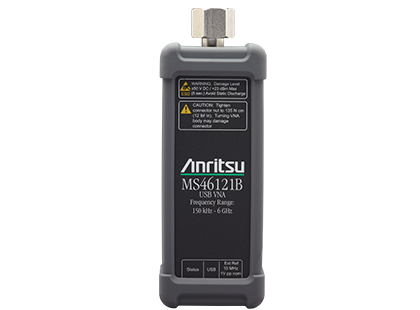

- 超小資料包可以直接連接到 DUT。
- 以（1 對 1）或（1 對 n）組態執行標量傳輸量測。
- 機上不帶有資料儲存空間，執行安全應用時無需清除資料。
- 標準帶通時域帶有按時選通功能，能夠簡化並加快故障識別。
- 採行 ShockLine 系列通用的 GUI 介面，可減少在不同機型之間轉換的成本。
Precision Automatic Calibrator Modules
| Model Number |
Description |
| MN25208A |
2-port USB SmartCal Module, 300 kHz to 8.5 GHz
(available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
|
| MN25408A |
4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
|
| MN25218A |
2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
|
| MN25418A |
4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
|
| 36585K-2M |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
|
| 36585K-2F |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
|
| 36585K-2MF |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
|
Mechanical Calibration Kits
| Model Number |
Description |
| 3653A |
N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
|
| OSLN50A-8 |
Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| OSLNF50A-8 |
Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| TOSLN50A-8 |
Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| TOSLNF50A-8 |
Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
Cables and Adapters
| Model Number |
Description |
| 1091-26-R |
SMA(m) to N(m), DC to 18 GHz, 50 Ω
|
| 1091-27-R |
SMA(f) to N(m), DC to 18 GHz, 50 Ω
|
| 1091-80-R |
SMA(m) to N(f), DC to 18 GHz, 50 Ω
|
| 1091-81-R |
SMA(f) to N(f), DC to 18 GHz, 50 Ω
|
| 71693-R |
Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
|
| 34NK50 |
Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
|
| 34NKF50 |
Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
|
| 34NFK50 |
Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
|
| 34NFKF50 |
Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
|
| K220B |
Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
|
| K222B |
Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
|
| K224B |
Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
|
Test Port Cables, Flexible, Ruggedized, Phase Stable
| Model Number |
Description |
| 15NNF50-1.0B |
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
|
| 15NNF50-1.5B |
Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
|
| 15NN50-1.0B |
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
|
| 15LL50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
|
| 15LLF50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
|
| 15KK50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
|
| 15KKF50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
|
Tools
| Model Number |
Description |
| 01-200 |
Calibrated Torque End Wrench, GPC-7 and Type N
|
| 01-201 |
Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in)
(for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
|
| 01-203 |
Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in)
(for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
|
| 01-204 |
End Wrench, 5/16 in, Universal, Circular, Open-ended
(for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
|
Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.
Material Measurements
|
Compass Technology
Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more.
Anritsu and Compass Technology Group Material Measurements Solutions
Compass Technology Group VectorStar Integration [video]
|
|
Keycom Technologies
Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more.
Anritsu and Keycom Material Measurement Solution
|
|
SWISSto12
Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more.
Anritsu and SWISSto12 Material Measurement Solution
|
