小型 USB 向量網路分析儀

MS46122B

The ShockLine MS46122B is a series of three compact USB vector network analyzers packaged in a compact 1U chassis controlled via USB from a PC, running the same GUI software

索取報價

下載

概述
應用
選項
資料庫

概述

描述
功能
校正及驗證套件
電纜和轉接頭
配件
第三方合作解決方案

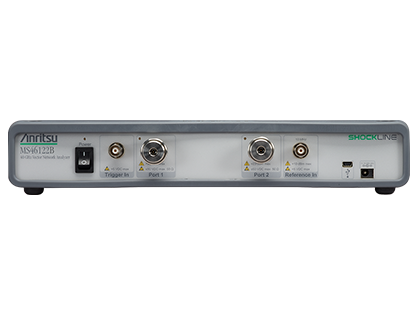

ShockLine™ MS46122B 系列由三個可透過 PC 控制的精巧型向量網路分析儀所組成，可量測 1 MHz 至 8/20/43.5 GHz 的頻率範圍。該系列採用專利 ShockLine VNA 晶片技術，其簡化了高頻下的內部 VNA 架構，降低了儀器成本，提高了測量準確性和重複性。

ShockLine™ MS46122B 系列的所有產品皆屬於經濟實惠的全反向測量型雙埠 VNA，專為製造、工程和教育上的射頻和微波應用所設計；這三個 VNA 的每點掃描速度為 130 微秒，動態範圍超過 100 dB，適用於各種裝置測試，包括被動 5G 微波元件的測量。

這些 VNA 皆裝載於非常精巧的 1U 主機中，用戶可利用 PC 執行與 Shockline 系列其他 VNA 相同的圖形化使用者介面 (GUI) 軟體和驅動軟體，其透過 USB 從外部加以控制，並使用外部電源供應器進行供電。該系列沒有內建記憶體，簡化了它們在安全應用中的使用。 ShockLine™ MS46122B VNA 系列結合低成本、精巧外型和良好性能等優勢，是強調便攜性和小巧體積的主動裝置測試應用之理想選擇。

搭配擴展 K™ 端口，擴展至 43.5 GHz 的保證性能
利用外接電腦的處理能力及功能，透過個人電腦加以控制
小型 1U 主機殼可提供高效的平台及機架空間配置
機上不具資料儲存空間，執行安全應用時無需清除數據
附帶時間閘選項的時間域，可更輕鬆快速地識別故障
ShockLine 系列通用的 GUI 介面，可減少在不同型號間轉換的成本
Universal Fixture Extraction (UFX) 軟體選項提供先進的去嵌入工具，用於測試夾具提取

精密自動的校正器模組

型號	說明
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f)
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for 36585 AutoCal module if control PC does not have a serial port)

機械校正套件

型號	說明
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

驗證套件

型號	說明
3663-3	N Connector Verification Kit (for use with MS46122B, MS46322B, MS46522B, MS46524B ShockLine VNAs and ME7869A PhaseLync VNA Systems
3668-4	43.5 GHz K Connector Verification Kit (for use with MS46122B, MS46322B, MS46522B, MS46524B ShockLine VNAs and ME7869A PhaseLync VNA Systems

電纜和轉接頭

型號	說明
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

測試連接埠電纜－靈活、堅固、相位穩定

型號	說明
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

相位穩定的半剛性測試埠電纜

型號	說明
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

工具

型號	說明
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Anritsu 安立知與下列業界領先的公司合作，提供各種與 VectorStar 和 ShockLine 向量網路分析儀系列相容的測量功能。

Material Measurements

	Compass Technology 從現有或客製化設計的射頻材料測量系統中進行選擇，能夠測量 100 MHz 至 90 GHz 的材料屬性，這些解決方案包括：聚焦光束、諧振腔、波導、點探針、自由空間測量系統等。 Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies 從利用各種方法的不同材料測量解決方案中進行選擇，包含：諧振器、頻率變化、探針類型、同軸管和波導類型 S 參數、自由空間、電容、測量法等。 Anritsu and Keycom Material Measurement Solution
	SWISSto12 提供能夠測量軟硬體的技術，包含：固體樣品、軟樣品和泡沫、液體樣品和粉末、薄膜、介電塗層和多層材料、氧化鋁板等。 Anritsu and SWISSto12 Material Measurement Solution

應用

射頻及微波無源元件測試與疑難排解

射頻及微波接頭與電纜
機電開關
衰減器
耦合器
濾波器
隔離器
循環器
相位轉移裝置

系統整合應用

系統校準
路徑損耗特徵
一般 S 參數與時域量測

安全區應用

機上不具資料儲存空間
透過直接連接的 USB 從外接電腦執行安全控制

無線功率傳輸應用

KQ 產品
最大效率

相關連結

選項

頻率選項（僅選擇一個頻率選項）

選項	描述
MS46122B-010	1 MHz — 8 GHz，N(f) 型埠
MS46122B-020	1 MHz — 20 GHz，強化 K(m) 型埠（相容於 3.5 mm 與 SMA 接頭）
MS46122B-043	1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors)

其他選項

選項	描述
MS46122B-002	時域附帶按時選通功能
MS46122B-024	Universal Fixture Extraction
