Multi-Lane Checkweigher | Anritsu Infivis

Overview

Description

Compact, accurate and ﬂexible

The next generation Multi-Lane Checkweigher comes in 150 models to accommodate nearly any line production application requiring high-speed precision weighing of small packaged products. With up to 12 independent lanes, Anritsu offers tremendous productivity in a space-eﬃcient form factor.

Benefits

Eﬃcient, space-saving design

The space-saving design eases line integration.
The center pitch of the conveyor can be set to as little as 50 mm.
No extra spreading conveyors required as the checkweigher can receive packages at the same center pitch as that of a ﬁlling packaging machine. This ensures proper conveyance posture of the product.

Independent lanes

Each lane can be individually started and stopped.
Each lane can be individually conﬁgured for different products and weight ranges (optional) for maximum system ﬂexibility.

Easily link to ﬁller

The checkweigher controller can be installed near the ﬁlling packing machine, making it easy to adjust the ﬁlling process.
Data output supports common send/receive communication protocols.
Feedback to the ﬁlling packaging machine can be controlled individually for each lane to prevent overﬁlling and improving yield.

Related Links

Specifications

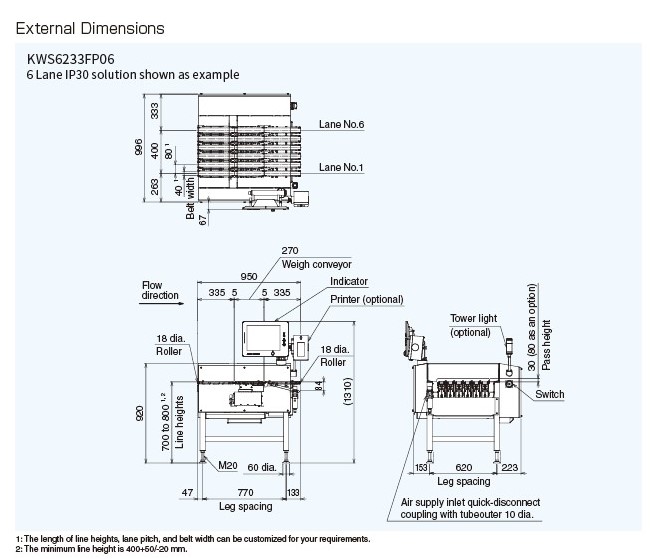

Model		KWS6233FP06
Lane		6
Weighing range		1.2 to 600 g
Scale interval		0.01 g
Maximum throughput ₁		200 products/min per lane
Maximum accuracy (3s) ₁		±0.010 g
Display		15-inch color LCD
Operation method		Touch panel (Start, Stop, Home are direct push buttons)
Indication range		600.9 g
Preset memory		Maximum 50
Classification		2 (3 as an option)
Product size ₂	Width	10 to 40 mm
	Length	46 to 230 mm
	Height	5 to 60 mm
Belt speed		15 to 60 m/min
Power requirements		100 Vac to 120 Vac +10% –15% or 200 Vac to 240 Vac +10% –15%, single phase, 50/60 Hz, 550 VA, rush current 30 A (typ.) (130 ms or less)
Air inlet (with exclusive-use rejector)		0.4 to 0.9 MPa, 0.2ℓ [A.N.R.] (Maximum capacity per rejection operation per lane)
Mass		200 kg
Environmental conditions		0°C to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
Protection class		IP30 compliance
Exterior		Stainless steel (SUS304)
Data output		USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)

1: The speed and accuracy vary according to the products to be weighed, the rejector and setting conditions.
2: Consult us about semi-transparent and transparent products.
Note: The rejector may be self-standing type.
Note: The noise level of the checkweighers does not exceed 70 dB(A).
Note: Weighing range, accuracy, and throughput other than above are available at your request.

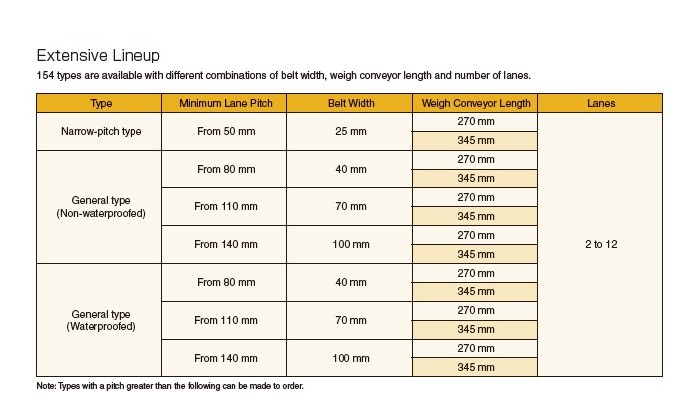

Note: Contact our sales representative for more models other than 6 lanes (2 to 12 lanes).
