IP/Ethernet Testers

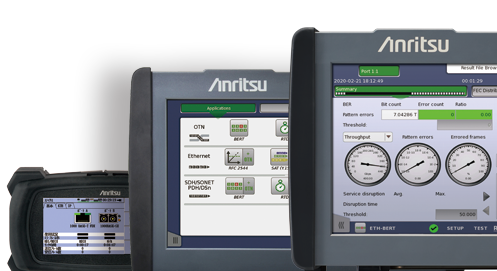

Anritsu's powerful Ethernet/IP network data analyzers incorporate the dual functionality of wire speed performance analysis and network monitoring in the same instrument. Multiple protocols can be decoded and displayed for captured Ethernet, SONET, or SDH frames at full wire speed up to 400 Gbps, augmented by an optional Decode Module and Expert Analysis Module.

Model Number	Standard	Bit rate	Interface
MT1040A Network Master Pro (400G Tester)	Ethernet eCPRI/RoE CPRI/OBSAI OTN/SDH/SONET Fibre Channel	10 Mbit/s — 400 Gbit/s	QSFP-DD OSFP QSFP28/QSFP+ SFP28/SFP+/SFP RJ45
MT1000A Network Master Pro (Ethernet / CPRI / FC / OTN / SDH / OTDR Test Equipment)	Ethernet eCPRI/RoE CPRI/OBSAI OTN/SDH/SONET PDH/DSn Fibre Channel	1.5 Mbit/s — 100 Gbit/s	QSFP28/QSFP+ CFP4 SFP28/SFP+/SFP RJ45 BNC RJ48 Bantam
MU909060A Gigabit Ethernet Modules	Ethernet	10 M/100 M/1 Gbit/s	Electrical Optical
MP1900A Signal Quality Analyzer-R	CEI-28G/56G/112G PCI Express InfiniBand 100G/200G/400G/800G Ethernet Thunderbolt USB	2.4 Gbit/s — 128 Gbit/s (PAM4 up to 64Gbaud)	Differential_Electrical/ Optical
MP2110A BERTWave™	Ethernet SDH/SONET OTN Fibre Channel InfiniBand CPRI	BERT: 9.5 Gbit/s — 14.2 Gbit/s 24.3 Gbit/s — 28.2 Gbit/s Sampling Oscilloscope Bandwidth: Optical SMF 35 GHz Optical MMF 25 GHz Electrical 40 GHz	BERT: Differential Electrical Oscilloscope: Electrical/Optical
