Network Analyzers
Extensive portfolio supporting up to millimeter waves
Two Categories of Solutions

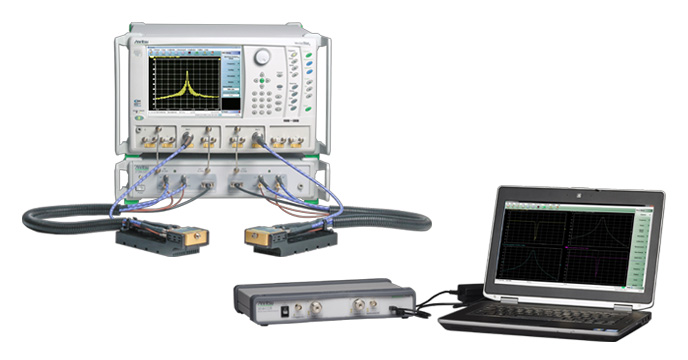

Benchtop
- VectorStar™ Series
This series includes multifunctional and premium-type vector network analyzers that cover 70 kHz to 220 GHz (up to 1.1 THz with an extender). Anritsu also provides an Opto-Electronic Network Analyzer suited for measuring O/E, E/O, and O/O devices. - ShockLine™ Series (Economy Type)
This series comprises economy-type vector network analyzers covering 50 kHz to 43.5 GHz or 55 GHz to 92 GHz. The 2-port VNA solution supports stable measurements over long distances thanks to the free placement of measurement ports.
Handheld
- Cable and Antenna Analyzers (Site Master)
The latest models can be optionally equipped with vector network analyzer and spectrum analyzer functions. Supporting frequencies up to 6 GHz, these instruments are ideal for installation, maintenance, and troubleshooting of communications systems in the field.
Frequency
Benchtop – VectorStar™ Series
| Model | Frequency |
|---|---|
| MS4647B | 70 kHz to 70 GHz |
| MS4644B | 70 kHz to 40 GHz |
| MS4642B | 70 kHz to 20 GHz |
| ME7838G | 70 kHz to 220 GHz |
| ME7838G4 | 70 kHz to 220 GHz |
| ME7838D | 70 kHz to 145 GHz |
| ME7838D4 | 70 kHz to 145 GHz |
| ME7838AX | 70 kHz to 110 GHz |
| ME7838A4X | 70 kHz to 110 GHz |
| ME7848A | 70 kHz to 40 GHz/70 GHz |
Benchtop - ShockLine™ Series
| Model | Frequency |
|---|---|
| MS46522B | 50 kHz to 8.5 GHz/20 GHz/43.5 GHz, 55 GHz to 92 GHz |
| MS46524B | 50 kHz to 8.5 GHz/20 GHz/43.5 GHz |
| MS46322B | 1 MHz to 8 GHz/20 GHz/43.5 GHz |
| ME786xA | 1 MHz to 8 GHz/20 GHz/43.5 GHz |
| MS46122B | 1 MHz to 8 GHz/20 GHz/43.5 GHz |
| MS46131A | 1 MHz to 8 GHz/20 GHz/43.5 GHz |
| MS46121B | 150 kHz to 6 GHz |
Handheld - Site Master Series
| Model | Frequency | ||
|---|---|---|---|
| Cable and Antenna Analyzers | Vector Network Analyzer (option) | Spectrum Analyzer (option) | |
| MS2089A | 5 kHz to 4 GHz or 6 GHz | 5 kHz to 4 GHz or 6 GHz | 9 kHz to 4 GHz or 6 GHz |

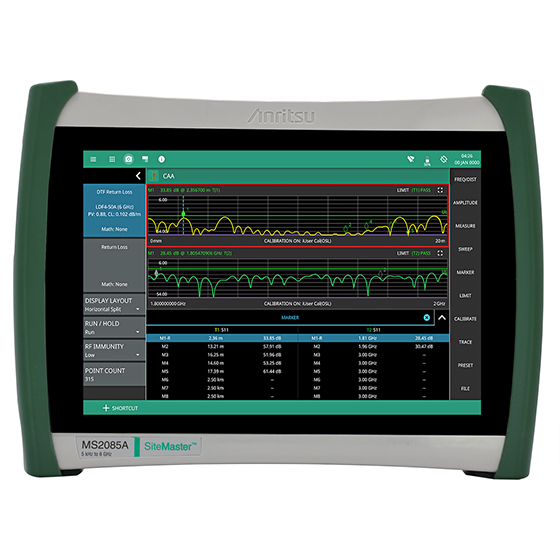

| MS2085A | 5 kHz to 4 GHz or 6 GHz | 5 kHz to 4 GHz or 6 GHz | Not applicable |
| S820E | 1 MHz to 8 GHz/14 GHz/20 GHz/30 GHz or 40 GHz | 1 MHz to 8 GHz/14 GHz/20 GHz/30 GHz or 40 GHz | Not applicable |
Case Study

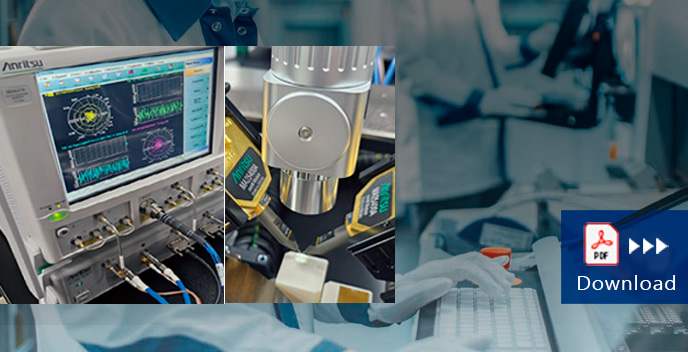

Electronics and Telecommunications Research Institute (ETRI)
mmWave and sub-THz device evaluation: A leading research institute in next-generation communications and semiconductor technologies established a broadband on-wafer measurement platform using a VNA.

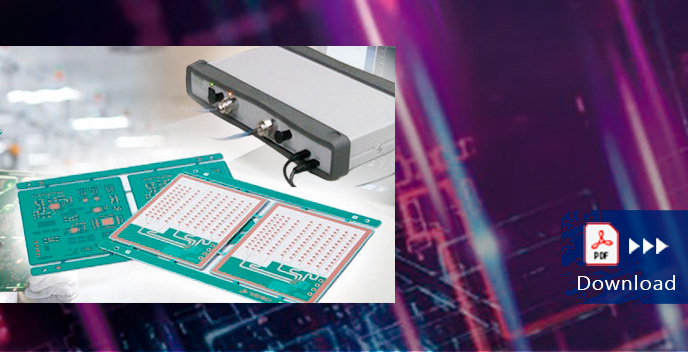

Meiko Electronics Vietnam Co., Ltd.
A global high performance PCB manufacturer completes in factory high frequency PCB evaluation. VNAs drive reliability and proposal strength.

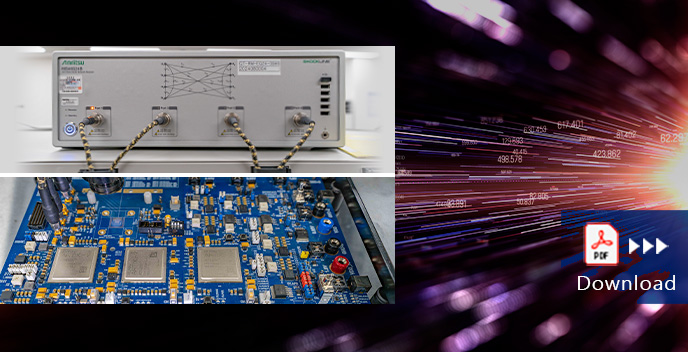

Qualitas Semiconductor Co., Ltd.
A leading company in high-speed interconnect IP development enhanced its verification capabilities and development efficiency by leveraging Anritsu’s vector network analyzer.

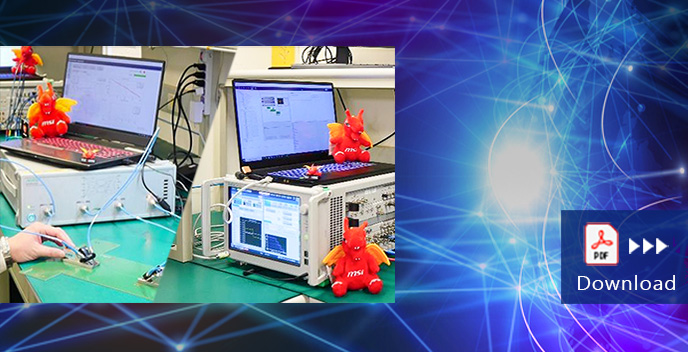

Micro-Star International Co., Ltd.
A leading brand of computer hardware enhances PCIe 5.0 and high-speed PCB validation in response to AI and high-speed transmission demands.
Junkosha Inc.
Discover how the Vector Network Analyzer MS46122 Series, paired with phase-stable millimeter wave cables, opens the door to precise measurements. This case study reveals the path to OTA testing that is free from cable-induced interference.
Resources
White Paper:
Evaluating Signal Quality to Ensure THz Communication System Performance
In THz communication systems, performance evaluation is essential for transceivers that support wideband signals and higher-order modulation schemes. However, when the expected communication performance cannot be achieved, identifying the root cause is often challenging.
This white paper explains the insights that can be obtained from EVM, phase noise, frequency response, and S-parameter measurements, and reviews the key evaluations required to identify the contributing factors.
White Paper:
Factory Separation and Evaluation Design for Terahertz Sensing: Measurement Requirements and Condition Design
In R&D in this field, separating variability caused by the object itself from that introduced by measurement conditions and environmental factors remains a key challenge.
This white paper explains methods to isolate these factors and ensure reproducible evaluation in terahertz-band measurements, where environmental conditions, measurement systems, and signal characteristics strongly influence results.
