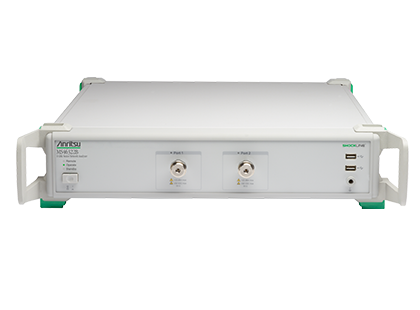

The ShockLine™ MS46322B series are economy vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series is based on Anritsu’s patented shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.

The ShockLine MS46322B series are all 2-port VNAs packaged in a self-contained, compact, and rugged 2U chassis that includes the power supply and computer. The entire series has 130 microseconds per point sweep speed and better than 100 dB dynamic range to 43.5 GHz, making it suitable for testing devices like millimeter-wave (mmWave) antennas and other passive 5G components in engineering, manufacturing, and cost-sensitive education applications.

ShockLine MS46322B VNAs integrate easily into rack-mount test systems due to their small size and remote programmability. They support SCPI command programming and software drivers for the most common programming environments. The whole family uses industry-standard LAN communications for remote control. ShockLine MS46322B VNAs provide a powerful graphical user interface (GUI) for manual testing of devices. The full-featured user interface is enabled by attaching a (user-supplied) touchscreen monitor, keyboard, and mouse.

Guaranteed performance to 43.5 GHz with Extended K™ ports
Ideal for testing RF and microwave devices, mmWave antennas, and other passive 5G components
Fast sweep speed and wide dynamic range minimize test times and maximize throughput
Excellent corrected directivity allows for less measurement uncertainty
Time domain with time gating option grants easier and faster fault identification
Industry-standard LAN interface for remote control is more robust than USB and faster than GPIB
Standard removable hard drive provides additional security for military and government research users
A common GUI and SCPI interface within the ShockLine family
USB ports allow for easy connection to user-provided monitor, keyboard, and mouse
Small 2U package makes for efficient use of rack space
Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction

Precision Automatic Calibrator Modules

Model Number	Description
MN25208A	2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f)
MN25408A	4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A	2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A	4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F	K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF	K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R	Serial to USB Adapter (required for use with 36585 AutoCal module

Mechanical Calibration Kits

Model Number	Description
3650A	SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1	SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A	K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A	N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18	Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18	Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18	Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18	Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5	Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5	Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Verification Kits

Model Number	Description
3663-3	N Connector Verification Kit
3668-4	43.5 GHz K Connector Verification Kit

Cables and Adapters

Model Number	Description
N120-6	RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
NS120MF-6	RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R	Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NN50A	Precision Adapter, N(m) to N(m), DC to 18 GHz, 50 Ω
34NFNF50	Precision Adapter, N(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number	Description
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R	Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number	Description
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

External Hard Drives

Model Number	Description
2000-1858-R	Extra external hard drive with preloaded software (For MS46322B only)

Transit Case

Model Number	Description
760-269	ShockLine VNA Transit Case, Hard plastic with wheels

Tools

Model Number	Description
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.

Material Measurements

	Compass Technology Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more. Anritsu and Compass Technology Group Material Measurements Solutions Compass Technology Group VectorStar Integration [video]
	Keycom Technologies Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more. Anritsu and Keycom Material Measurement Solution
	SWISSto12 Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more. Anritsu and SWISSto12 Material Measurement Solution

Applications

RF and Microwave Passive Component Testing and Troubleshooting

RF and automotive connectors and cables
Electromechanical switches
Attenuators
Couplers
Filters
Isolators
Circulators
Phase Shifters

System Integration Applications

System Calibration
Path-loss Characterization
General s-parameters and time domain measurements

Wireless Power Transfer Applications

KQ product
Maximum efficiency

Frequency Options (select one frequency option only)

Option	Description
MS46322B-010	1 MHz — 8 GHz, type N(f) ports
MS46322B-020	1 MHz — 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
MS46322B-043	1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors)

Other Options

Option	Description
MS46322B-001	Rack mount, adds handles and removes feet for shelf-mounting into a 19 in universal rack
MS46322B-002	Time Domain with Time Gating
MS46322B-024	Universal Fixture Extraction
