ME7838A4

VectorStar 4-Port Broadband VNA ME7838E4/E4X/A4/A4X/D4/G4

ME7838x4 Series
The VectorStar series of broadband Vector Network Analyzers offer the widest available 4-port single sweep measurements from 70 kHz to 110, 125, 145, and 150 GHz with mmWave bands up to 1.1 THz
Overview

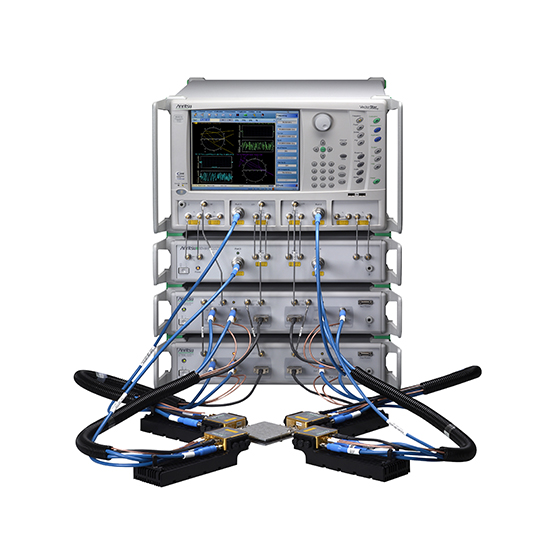

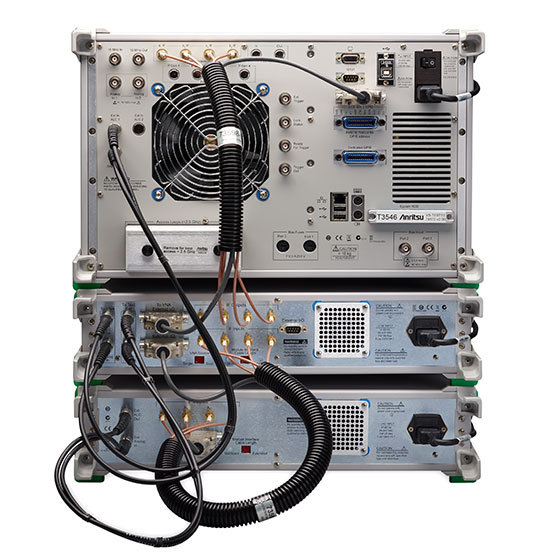

The VectorStar ME7838x4 Broadband systems provide high performance 4-port measurements utilizing compact mmwave modules with industry-best calibration stability. While other broadband systems continue to provide raw performance with negative directivity in critical frequency bands, the ME7838 series, which includes the 4-port systems includes broadband systems with positive raw directivity. The result is better calibration stability and better measurement stability with significantly longer time between calibrations for accurate measurements and improved productivity. The new ME7838G4 takes high performance 4-port broadband measurements to a new level by incorporating the Anritsu MA25400A mmWave module. The MA25400A module combines Anritsu developed Nonlinear Transmission Line (NLTL) technology in a small, compact high performance mmWave module with a 0.6 mm test port connector for measurements up to 220 GHz.

The VectorStar ME7838E4, ME7838A4, and ME7838D4 Series broadband VNA offers the widest available 4-port single sweep measurements from 70 kHz to 110, 125, 145, and 150 GHz with mmWave bands up to 1.1 THz

  • The ME7838E4 4-port system sweeps from 70 kHz to 110 GHz
  • The ME7838E4X 4-port system sweeps from 70 kHz to 110 GHz (Guaranteed specifications)
  • The ME7838A4 4-port system sweeps from 70 kHz to 110/125 GHz
  • The ME7838A4X 4-port system sweeps from 70 kHz to 125 GHz (Guaranteed specifications)
  • The ME7838D4 4-port system sweeps from 70 kHz to 145/150 GHz
  • The ME7838G4 4-port system sweeps from 70 kHz to 220 GHz
  • All systems may be configured to include banded millimeter-wave modules up to 1.1 THz
  • Industry-best calibration and measurement stability: 0.1 dB vs 0.6 dB over 24 hrs
  • All systems also supports the 3744x-Rx receiver for noise figure measurements to 125 GHz
  • Compact, lightweight mmWave modules offer low cost installation with industry-best performance

Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.

Material Measurements

Compass Technology Group logo
Compass Technology
Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more.

Anritsu and Compass Technology Group Material Measurements Solutions
Compass Technology Group VectorStar Integration [video]
KEYCOM Characteristic Technologies logo
Keycom Technologies
Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more.

Anritsu and Keycom Material Measurement Solution
Swiss to 12 logo
SWISSto12
Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more.

Anritsu and SWISSto12 Material Measurement Solution
Options

Broadband VNA Configurations:

Model Description
ME7838E4 70 kHz – 110 GHz, 4-port Broadband VNA, 1mm coax output
ME7838E4X 70 kHz – 110 GHz, (guaranteed specifications)- 4-port Broadband VNA, 1mm coax output
ME7838A4 70 kHz — 110 GHz, operational to 40 kHz — 125 GHz, 4 Port Broadband VNA, 1 mm coax output
ME7838A4X 70 kHz – 125 GHz, (guaranteed specifications)- 4-port Broadband VNA, 1mm coax output
ME7838D4 70 kHz – 145 GHz, operational 40 kHz – 150 GHz, 4-port Broadband VNA, 0.8 mm coax output
ME7838G4 70 kHz – 220 GHz, operational 40 kHz – 226 GHz, 4-port Broadband VNA using 220 GHz MPI Probes
