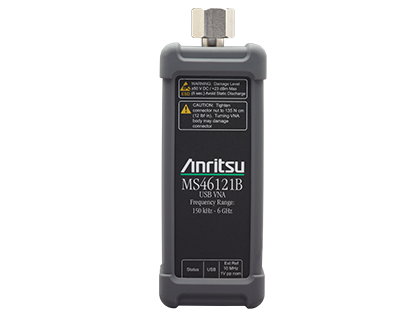

1-Port USB Vector Network Analyzer

MS46121B
Overview
  • 1-Port VNA with frequency options from 150 kHz – 6 GHz
  • External PC control enables control of multiple MS46121B in parallel for excellent multisite throughput.
  • Very compact package allows for direct connection to the DUT.
  • Scalar Transmission measurements in a (1 to 1) or (1 to n) configuration.
  • No onboard data storage eliminates the need for data purging in secure applications.
  • Standard bandpass time domain with time gating grants easier and faster fault identification.
  • A common GUI interface within the ShockLine family reduces switching costs between models.

The MS46121B is a series of two PC-controlled 1-Port USB ShockLine Vector Network Analyzers with frequency ranges of 40 MHz to 4 GHz and 150 kHz to 6 GHz. The MS46121B provides performance and accuracy for your 1 port measurements in a low cost and space saving solution that is small enough to directly connect to the device under test. All the members of the MS46121B series are aimed at RF and microwave applications in manufacturing, engineering and education. The two MS46121B options both come with 120 microsecond per point sweep speeds and a measurement accuracy of +/- 0.5 dB (-6 dB offset, typical), making them suitable for your passive device test applications.

These new very compact VNAs are externally controlled via USB from a user supplied PC. Up to 16 independent MS46121B VNAs can be operated in parallel from the same computer running ShockLine software. This enables true parallel multisite testing of 1-port devices improving throughput over traditional single VNA and switch matrix test solutions. Adding option 21, Scalar Transmission, will allow scalar measurements (magnitude only) between multiple MS46121B VNAs. The series does not have any on board memory which simplifies its use in secure applications. The combination of lower cost, small size, good performance, and parallel operation make the MS46121B series VNAs ideal for passive 1-port device test applications where performance and multisite testing are desired.

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number Description
MN25208A 2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
MN25408A 4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A 2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A 4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)

Mechanical Calibration Kits

Model Number Description
3653A N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω

Cables and Adapters

Model Number Description
1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50 Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50 Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50 Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50 Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number Description
15NNF50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω

Tools

Model Number Description
01-200 Calibrated Torque End Wrench, GPC-7 and Type N
01-201 Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203 Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204 End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
Applications

RF Passive Component Testing and Troubleshooting

  • Antenna Return Loss
  • Antenna Bandwidth
  • Impedance Measurements
  • Cable Fault Detection
  • Cable Phase
  • Cable Return Loss

Multisite Configurations Supported

  • Parallel testing of up to 16 DUT sites supported from one computer
  • Scalar Transmission Measurements can be done in parallel using 4 channels

Secure Area Applications

  • No data storage on unit
  • Secure external computer control through direct USB connection
Options

Frequency Options (select one frequency option only)

Option Description
MS46121B-004 40 MHz — 4 GHz, N(m) port
MS46121B-006 150 kHz — 6 GHz, N(m) port

Other Options

Option Description
MS46121B-002 Low Pass Time Domain
MS46121B-021 Scalar Transmission Measurement
