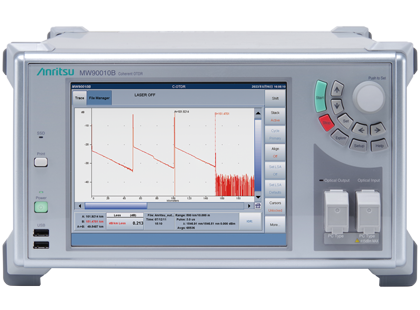

Fiber under test
|
ITU-T G.653 (DSF)
|
|
Optical connector
|
FC, SC, (User Replaceable, PC Type)
|
|
Wavelength (Probe light)
|
1527.60 nm to 1567.13 nm
|
|
Wavelength accuracy
|
±0.05 nm (20°C to 30°C)
|
|
Warm-up time
|
2 minutes (20°C to 30°C)
|
|
Pulse width
|
3/10/30/60/100 µs
|
|
Optical output power
|
0 to +13 dBm, 0.5 dB Steps
|
|
Dynamic range (S/N=1)
|
18 dB (typ.)
Measurement conditions (25℃, Pulse Width: 10 μs, Averaging Times: 216, Distance Range: 1000 km, Smoothing: On, Signal: –57 dBm @ Pin)
|
|
Dead zone
|
0.5 km (Pulse Width: 3 µs)
|
|
Distance range
|
100 km, 500 km to 12,000 km (in 500 km steps)
With MW90010B-003
100 km, 500 km to 20,000 km (in 500 km steps)
|
|
Measurement time
|
15 minutes (Distance Range: 1000 km, Averaging Times: 216)
|
|
Dimensions and mass
|
320 (W) × 177 (H) × 451 (D) mm, ≤10 kg
|
