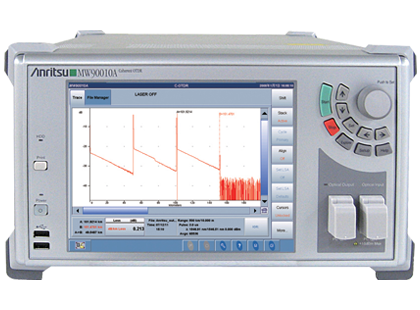

Coherent OTDR

MW90010A

索取報價

下載

概述
資料庫

Overview

功能
描述
技術

Ultra-long distance reach up to 12,000 km
Compact and lightweight all-in-one design for on-site / on-ship portability
Fault detection with 10 m distance resolution
Wide dynamic range supporting fault detection and troubleshooting of submarine cables with repeaters at 80 km or wider intervals
Integrated tunable light source with high wavelength accuracy of ±0.2 nm for wavelength setting range of 1535.03 to 1565.08 nm
Adjustable output power from 0 to +13 dBm
Simple and easy touch-panel operation for easy first-time use

MW90010A Coherent OTDR (C-OTDR) is a measuring instrument for detecting faults in ultra-long optical submarine cables of up to 12,000km including multiple repeaters (EDFA). It is the ideal solution for evaluating new cables at service deployment as well as for troubleshooting in-service faults.

Items	Specifications
Fiber under test	ITU-T G.653 (DSF)
Optical connector	FC, SC, DIN, HSM-10/A, ST, LC
Wavelength (Probe light)	1535.03 nm to 1565.08 nm
Wavelength accuracy	±0.2 nm (20 to 30℃)
Warm-up time	30 minutes (20 to 30℃)
Pulse width	3/10/30/60/100 µs
Optical output power	0 to +13 dBm, 0.5 dB Steps
Dynamic range (S/N=1)	>17 dB Measurement Conditions: Pulse width: 10 µs Average times: 216 Distance range: 1000km Smoothing: On Ps: -57 dBm @ Pin 1 Pase: -20 dBm/nm @ Pin 2
Dead zone	0.5 km (Pulse width: 3 µs)
Distance range	100 km, 500 km to 12,000 km (in 500 km steps)
Measurement time	15 minutes (Distance Range: 1000 km, Average times: 2¹⁶)
Dimensions and mass	320 (W) × 177 (H) × 451 (D) nm, <17 kg

*1: Ps: Maximum backscatter level at the input [dBm]

*2: Pase: ASE level at the input [dBm]

View the LightWave Magazine Article from OFC:Anritsu Coherent OTDR
