小型 USB 矢量网络分析仪

MS46122B
概述

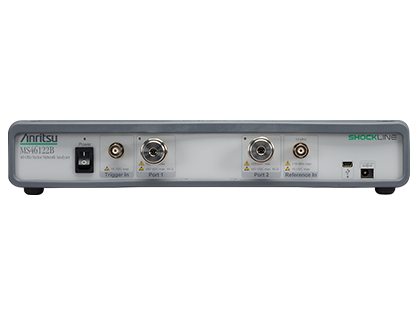

MS46122B 是包含三种 PC 控制的小型 ShockLine 矢量网络分析仪系列,频率范围为 1 MHz - 8/20/43.5 GHz。该系列采用专利 ShockLine VNA 芯片级技术,简化了内部 VNA 架构,提高了频率,降低了设备成本,加强了准确度和测量可重复性。

MS46122B 全系列产品都是低成本全反向 2 端口 VNA,专为制造、工程和教育领域的射频和微波应用而设计。所有三种 MS46122B VNA 的扫描速度均为每点 130 微秒,高于 100 dB 动态范围,适合各类设备测试应用。

这些全新 VNA 采用非常紧凑的 1U 机箱封装,通过连接用户 PC 上的 USB 可以实现外部控制,用户 PC 上需运行和 VNA ShockLine 系列其他产品相同的图形用户界面 (GUI) 软件。该系列没有任何机载内存,简化了其在安全应用中的使用。该 MS46122B 系列 VNA 成本更低、体积小巧且性能良好,是要求高性能和小尺寸的无源设备测试应用的理想选择。

  • Guaranteed performance to 43.5 GHz with Extended K™ ports
  • PC 控制有效利用外部计算机的处理能力和功能。
  • 小型 1U 高档封装有效利用工作台和机架空间。
  • 没有机载数据存储,无需在安全应用中进行数据清除。
  • 时域带有按时选通选项,能够简化并加快故障识别。
  • ShockLine 系列采用通用的 GUI 接口,降低不同型号之间的转换成本。
  • Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction

Precision Automatic Calibrator Modules

Model Number Description
MN25208A 2-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
MN25408A 4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
MN25218A 2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
MN25418A 4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
36585K-2M K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
36585K-2F K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
36585K-2MF K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
2000-1809-R Serial to USB Adapter (required for 36585 AutoCal module if control PC does not have a serial port)

Mechanical Calibration Kits

Model Number Description
3650A SMA/3.5 mm Calibration Kit, Without Sliding Loads, DC to 26.5 GHz, 50 Ω
3650A-1 SMA/3.5 mm Calibration Kit, With Sliding Loads, DC to 26.5 GHz, 50 Ω
3652A K Connector Calibration Kit, Without Sliding Loads, DC to 40 GHz, 50 Ω
3653A N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
OSLN50A-8 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLNF50A-8 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLN50A-8 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
TOSLNF50A-8 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
OSLN50A-18 Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
OSLNF50A-18 Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLN50A-18 Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLNF50A-18 Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 18 GHz, 50 Ω
TOSLK50A-20 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLKF50A-20 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 20 GHz, 50 Ω
TOSLK50A-40 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLKF50A-40 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 40 GHz, 50 Ω
TOSLK50A-43.5 Precision K Male Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω
TOSLKF50A-43.5 Precision K Female Through/Open/Short/Load Mechanical Calibration Tee with S1P data, DC to 43.5 GHz, 50 Ω

Verification Kits

Model Number Description
3663-3 N Connector Verification Kit
3668-3 K Connector Verification Kit

Cables and Adapters

Model Number Description
1091-26-R SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50 Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50 Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50 Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50 Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number Description
15NNF50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60 Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100 Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
SC8267 1.0 m (36”), Cable, 40 GHz, K(m) to K(f), 50 Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Description
3670N50-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1 Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2 Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

Tools

Model Number Description
01-200 Calibrated Torque End Wrench, GPC-7 and Type N
01-201 Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203 Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204 End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
应用

射频和微波无源组件测试和故障排除

  • 射频和微波连接器和线缆
  • 机电开关
  • 衰减器
  • 耦合器
  • 筛选器
  • 隔离器
  • 循环器
  • 移相器

系统集成应用

  • 系统校准
  • 路径损耗特性
  • 一般 S 参数和时域测量

安全领域应用

  • 装置内无数据存储
  • 通过直接 USB 连接实现安全的外部计算机控制

无线电力传输应用

  • KQ 产品
  • 最高效率
选项

频率选项(仅选择一个频率选项)

选件 描述
MS46122B-010 1 MHz — 8 GHz,N(f) 型端口
MS46122B-020 1 MHz — 20 GHz,K(m) 耐用型端口(兼容 3.5 mm 和 SMA 连接器)
MS46122B-040  1 MHz — 43.5 GHz,K(m) 耐用型端口(兼容 3.5 mm 和 SMA 连接器)
MS46122B-043  1 MHz – 43.5 GHz, type ruggedized Extended K™ (m) ports (compatible with standard K, 3.5 mm and SMA connectors)

其他选项

选件 描述
MS46122B-002 时域带有按时选通
MS46122B-024 Universal Fixture Extraction
