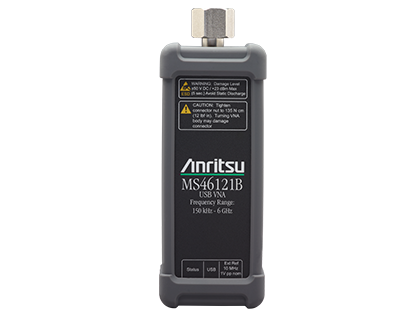

MS46121B 是 PC 控制型单端口 USB ShockLine 矢量网络分析仪系列，共有两款，频率范围分别为 40 MHz 到 4 GHz 和 150 kHz 到 6 GHz。MS46121B 是一款低成本和空间紧凑型的单端口测量解决方案，具有卓越的性能和精度，外形小到可以直接连接到设备进行测试。MS46121B 全系列产品专为制造、工程和教育领域的射频和微波应用而设计。MS46121B 系列中的两款产品都具有每点 120 微秒的扫描速度和 +/- 0.5 dB（-6 dB 典型偏移值）的测量精度，是无源设备测试应用的理想选择。
此新款超紧凑型 VNA 通过用户提供的 PC 上的 USB 实现外部控制。可以通过运行 ShockLine 软件的同一计算机来并行运行最多 16 个独立的 MS46121B VNA。这样可以在实际应用中对单端口设备实现并行多站点测试，与传统单 VNA 以及开关矩阵测试解决方案相比，此解决方案可以提升吞吐量。添加选件 21，标量传输，将会实现多个 MS46121B VNA 之间的标量测量（仅幅值）。该系列没有任何机载内存，简化了其在安全应用中的使用。该 MS46121B 系列 VNA 成本更低、体积小巧、性能良好且可并行运行，是要求高性能和多站点测试的无源单端口设备测试应用的理想选择。
- 单端口 VNA，频率选项为 150 kHz – 6 GHz
- 外部 PC 控制功能可以并行控制多个 MS46121B 以实现卓越的多站点吞吐量。
- 超小数据包可以直接连接到 DUT。
- （1 对 1）或（1 对 n）配置的标量传输测量。
- 没有机载数据存储，无需在安全应用中进行数据清除。
- 标准带通时域带有按时选通功能，能够简化并加快故障识别。
- ShockLine 系列采用通用的 GUI 接口，降低不同型号之间的转换成本。
Precision Automatic Calibrator Modules
| Model Number |
Description |
| MN25208A |
2-port USB SmartCal Module, 300 kHz to 8.5 GHz
(available with connector options: -001 N(f), -002 K(f), -003 3.5 mm(f), -004 SMA(f))
|
| MN25408A |
4-port USB SmartCal Module, 300 kHz to 8.5 GHz (available with N(f) connectors)
|
| MN25218A |
2-port USB SmartCal Module, 1 MHz to 20 GHz (available with K(f) connectors)
|
| MN25418A |
4-port USB SmartCal Module, 300 kHz to 20 GHz (available with K(f) connectors)
|
| 36585K-2M |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(m)
|
| 36585K-2F |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(f) to K(f)
|
| 36585K-2MF |
K Precision AutoCal Module, 70 kHz to 40 GHz, K(m) to K(f)
|
Mechanical Calibration Kits
| Model Number |
Description |
| 3653A |
N Connector Calibration Kit, Without Sliding Loads, DC to 18 GHz, 50 Ω
|
| OSLN50A-8 |
Precision N Male Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| OSLNF50A-8 |
Precision N Female Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| TOSLN50A-8 |
Precision N Male Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
| TOSLNF50A-8 |
Precision N Female Through/Open/Short/Load Mechanical Calibration Tee, DC to 8 GHz, 50 Ω
|
Cables and Adapters
| Model Number |
Description |
| 1091-26-R |
SMA(m) to N(m), DC to 18 GHz, 50 Ω
|
| 1091-27-R |
SMA(f) to N(m), DC to 18 GHz, 50 Ω
|
| 1091-80-R |
SMA(m) to N(f), DC to 18 GHz, 50 Ω
|
| 1091-81-R |
SMA(f) to N(f), DC to 18 GHz, 50 Ω
|
| 71693-R |
Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
|
| 34NK50 |
Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
|
| 34NKF50 |
Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
|
| 34NFK50 |
Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
|
| 34NFKF50 |
Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
|
| K220B |
Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
|
| K222B |
Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
|
| K224B |
Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
|
Test Port Cables, Flexible, Ruggedized, Phase Stable
| Model Number |
Description |
| 15NNF50-1.0B |
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
|
| 15NNF50-1.5B |
Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
|
| 15NN50-1.0B |
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
|
| 15LL50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
|
| 15LLF50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
|
| 15KK50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
|
| 15KKF50-1.0A |
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
|
Tools
| Model Number |
Description |
| 01-200 |
Calibrated Torque End Wrench, GPC-7 and Type N
|
| 01-201 |
Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in)
(for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
|
| 01-203 |
Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in)
(for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
|
| 01-204 |
End Wrench, 5/16 in, Universal, Circular, Open-ended
(for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
|
Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.
Material Measurements
|
Compass Technology
Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz to 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more.
Anritsu and Compass Technology Group Material Measurements Solutions
Compass Technology Group VectorStar Integration [video]
|
|
Keycom Technologies
Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more.
Anritsu and Keycom Material Measurement Solution
|
|
SWISSto12
Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more.
Anritsu and SWISSto12 Material Measurement Solution
|
