5 GHz Band WLAN Device DFS Tests

5 GHz Band WLAN Device  DFS Tests  Support for FCC, ETSI, Japan MIC standards

The recent popularity of smartphones, tablets, etc., has caused an exponential increase in WLAN traffic, resulting in demand for faster communications speeds to help reduce traffic congestion. Consequently, not only is use of frequency bands conventionally reserved for indoor traffic being investigated for outdoor traffic in the 5 GHz WLAN space, but also new 5 GHz band WLAN devices are being actively developed, promoting adoption of newer standards facilitating faster communications speeds. Since 5 GHz band WLAN devices can detect meteorological and marine radar, etc., systems using the 5.3 GHz/5.6 GHz bands, they require a built-in Dynamic Frequency Selection (DFS) function for suppressing signal collisions. Installing the MX370073B and MX370075A in the Vector Signal Generator MG3710A supports FCC, ETSI and Japan MIC (TELEC) standards-compliant test signals required by the DFS function test for WLAN devices to facilitate efficient development of 5 GHz band WLAN devices.

Features

  • Full support for all required test patterns
    About 400 test patterns must be supported just for ETSI.
    The MX370073B/MX370075A have all the waveform patterns required by the test, helping reduce the preparation burden.
  • Easy operation by just selecting and loading waveform patterns
    Even inexperienced operators with little knowledge of the DFS test and equipment can run accurate tests efficiently.
  • Supports FCC, ETSI, Japan MIC (TELEC) standards
    All key DFS test standards are covered.
    In addition, 5.3 GHz-band solid-state radar waveform patterns∗ under consideration for addition to the Japan MIC standard are offered.
    ∗: Based on information published in November 2018

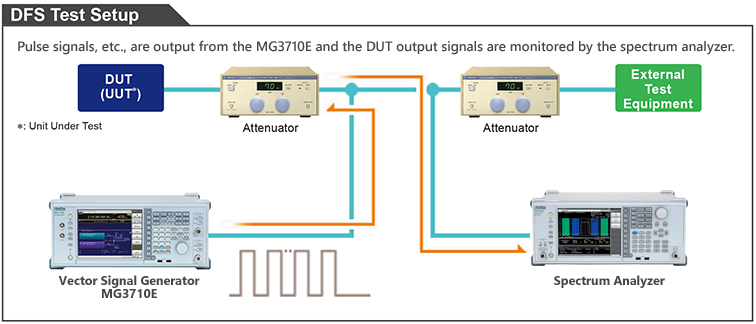

A test setup image of DSF solution using Anritsu's vector signal generator MG3710A and spectrum analyzer.

List of DFS Test Waveform Patterns for MG3710A

The MX370073A supports the FCC and Japan MIC standards while the MX370075A supports the ETSI standard

FCC Test Signals (MX370073B) <FCC 06-96 (Released: June 30, 2006), FCC 13-22 (Released: February 20, 2013)>

Test Signal Radar Type Test Signal Test Number
Short Pulse Radar 0 Fixed Pulse Radar Wave Test Signal 6.1
1 Fixed Pulse Radar Wave Test Signal 6.1
2 Variable Pulse Radar Wave Test Signal 6.1
3 Variable Pulse Radar Wave Test Signal 6.1
4 Fixed Pulse Radar Wave Test Signal 6.1
Long Pulse Radar 5 Chirp Radar Wave Test Signal 6.2
Frequency Hopping Radar 6 Frequency Hopping Radar Wave Test Signal 6.3
(Hopping frequency band: 20 MHz, 40 MHz, 80 MHz, 160 MHz)

Japan MIC Standard Test Signals (MX370073B)

Test Item Frequency Band Test Signal Test Number (TELEC-T403 V12.1)
Carrier Sense Function ② 5.3 GHz Fixed Pulse Radar Wave Test Signal Table 1 - Category 1
Table 1 - Category 2
Carrier Sense Function ③ 5.6 GHz Fixed Pulse Radar Wave Test Signal Table 2 - Category 1
Table 2 - Category 2
Table 2 - Category 3
Variable Pulse Radar Wave Test Signal Table 2 - Category 4
Table 2 - Category 5
Table 2 - Category 6
Chirp Radar Wave Test Signal Table 3 - Category 1
Frequency Hopping Radar Wave Test Signal Table 4 - Category 1
(Hopping frequency band: 20 MHz, 40 MHz, 80 MHz, 160 MHz)

Japan MIC Standard Test Signals (MX370073B)

5.3-GHz band solid-state radar waveform patterns under consideration for addition to standard

Test Item Frequency Band Test Signal
Carrier Sense 5.3 GHz 20 patterns (at November 2018) based on specifications published by Ministry of Internal Affairs and Communications Terrestrial Wireless Communications Committee (5 -GHz band WLAN test group)

ETSI Test Signals (MX370075A) <ETSI EN 301 893 V2.1.1>

Test Signal Pulse Repetition Frequency No. of PRF*3 Type Pulse Count Per Burst
Min. Max.
Reference DFS test signal 700 1 18
1 200 1000 1 10*2
2 200 1600 1 15*2
3 2300 4000 1 25
4*1 2000 4000 1 20
5 300 400 2 or 3 10*2
6 400 1200 2 or 3 15*2
*1: The Radar test signal 4 waveform is chirp-modulated in the ±2.5 MHz range.
*2: 18 when testing at 5600 MHz to 5650 MHz at the CAC and Off-Channel CAC test.
*3: PRF: Pulse Repetition Frequency

Difference between MX370073B and MX370073A

✓: Supported
Model Vector Signal Generator Note
MG3710A MG3700A
(discontinued)
MX370073A
(to be discontinued in May 2019)

MX370073B  NEW
  • Includes all waveform patterns offered by MX370073A
  • Includes 5.3-GHz band solid-state radar waveform patterns now under consideration for addition to Japan MIC standard

Minimum Recommended Configuration

Specify the model/order number, name and quantity when ordering.

Minimum Recommended Configuration

Model Name(Remarks)
MG3710A Vector Signal Generator
MG3710A-036 1stRF 100 kHz to 6 GHz
MG3710A-045 ARB Memory Upgrade 256 Msample for 1stRF
MX370073B  NEW DFS Rader Pattern (For FCC and Japan MIC (TELEC) standards)
MX370075A DFS (ETSI) Waveform Pattern
