Power Meter

ML2439A

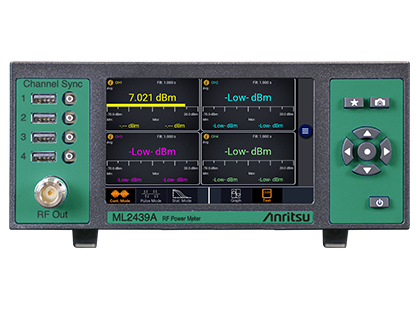

4 channel benchtop power meter with front panel multi-touch display and keypad ready to configure measurements, along with a 50 MHz test source output located on the front panel for easy calibration

견적 요청

다운로드

개요
Applications
Specifications
Options
라이브러리

overview

설명
Features
Accessories

ML2439A is a four channel Power Meter which accepts input from Anritsu USB power sensors, processes and displays measurements simultaneously.

The ML2439A Peak Power Meter supports the following USB power sensors:

MA244xxA – Peak Power Sensors
MA243xxA – CW Sensors
MA242xxA, MA241xxA – True RMS Sensors

ML2439A benchtop power meter has a front panel multi-touch display and keypad to configure the instrument for measurements. A 50 MHz test source output is also provided on the front panel for calibration. ML2439A provides a GPIB and ethernet interface for remote operations.

When used with the MA244xxA USB peak power sensors which feature 195 MHz video bandwidth, the ML2439A can capture and make power measurements of very narrow pulse modulated signals as well as wideband periodic modulated signals.

With the MA243xxA CW USB power sensors the MA241xxA, and the MA242xxA TRMS USB power sensors, the ML2439A provides accurate RMS power measurement capability.

Capture/display/analyze peak and average/RMS power
Synchronous multi-channel measurements with MA244xxA sensors
Frequency range : 10 MHz to 50 GHz (sensor dependent)
Video bandwidth: 195 MHz for periodic signals
100,000 measurements per second measurement speed
Very fine 100 ps time resolution

Part Number	Description
2000-2154-R	External USB drive
2000-2155-R	Rack Mount Kit, 19 inch

Applications

ML2439A is a general-purpose instrument with diverse applications. Below is a sample of the typical applications

As a Power measurement device in compliance test labs, calibration labs and metrology labs
- Either as standalone or in ATE rack
For design, verification, testing and maintenance of Radars
- Measure pulse parameters
For power measurements in production of wireless communication equipment and devices such as Wi-Fi/BT, 4G/5G, WiMAX
- Measure power characteristics of complex digitally modulated signals
- Measure CCDF curves and statistics
For RMS and CW power measurements
- Nonlinearity testing of semiconductor devices
EMC radiated immunity measurements

관련 링크

Specifications

Channels: 2 CH Standard, 4 CH with Option ML2439A-0004
Frequency Range: 10 MHz to 50 GHz (sensor dependent)
Input level range: -60 dBm to +20 dBm (sensor dependent)
Sensors: MA2444xA Series, MA243xxA Series, MA242xxA ¹, MA241xxA ¹

	MA244xxA	MA243xxA	MA242xxA	MA241xxA
Description	USB	USB	USB	USB
Measurements	Average (RMS), Peak, Pulse	Average Power (CW only)	Average Power (RMS)	Average Power (RMS)
In-line Forward and Reverse Measurements
Frequency (GHz)⁽¹⁾	0.05 to 40 GHz	0.01 to 50 GHz	0.01 to 18 GHz	0.01 to 26 GHz
Dynamic Range (dBm)⁽¹⁾	-50 to +20	-70 to +20	-60 to +20	-40 to +20
VBW	Up to 195 MHz	50 kHz
Average	▬	▬	▬	▬
Peak Power and Crest Factor	▬
CCDF and PDF	▬
PAE Measurement	▬
NIST Traceable Calibration	Up to 18 GHz	▬	▬	▬
Applications	CW, Pulse Profiling, Any Modulation	CW	CW, Pulse, Any Modulation	CW, Pulse, Any Modulation
Compatible Power Meters	ML2439A	ML2439A	ML2439A	ML2439A

Trigger: Normal, Auto, Auto pk-pk, Free Run
Automatic measurements: Pulse, statistical, and markers measurements
Display Modes: Continuous, Pulse and Statistical measurement( CCDF)
Display Format: Graph (power vs time or CCDF) and Text (Numeric display)
Display: 5-inch WVGA multi-touch display with intuitive graphical user interface
Remote Interface: GPIB, Ethernet
Weight: 4.8 lbs, 2.2 kg
Dimensions: (H x W x D) 3.5 x 8.3 x 11.2 (in), 89 x 211 x 284 (mm)

Note 1 : Except MA24103A, MA24105A and MA24106A sensors

Option	Description
ML2439-0004	Add two active channels
ML2439-0005	GPIB Interface
ML2439-0006	External USB boot

팜플렛	릴리스 날짜
ML2439A Power Meter Product Brochure	2026/05/20
ML2439A Power Meter Quick Fact Sheet	2026/05/20

Datasheet	릴리스 날짜
Power Meters, Power Sensors, and Power Analyzer Product Information, Compliance, and Safety	2026/05/21
Power Meter ML2439A Technical Data Sheet	2026/05/20

application note	릴리스 날짜
EMC Radiated Power Measurement with the ML2439A Power Meter Application Brief	2026/09/23
Gain Measurement of Pulsed TWTA Amplifiers Application Brief	2026/08/13
