CATR Anechoic Chamber 2

MA8172B

Supports 5G NR OTA environment using 3GPP-compliant CATR method. It also supports 2 AoA RRM tests for evaluating UE communications quality and connection stability at handover between base stations.

견적 요청

다운로드

개요
라이브러리

overview

설명
기능
기술

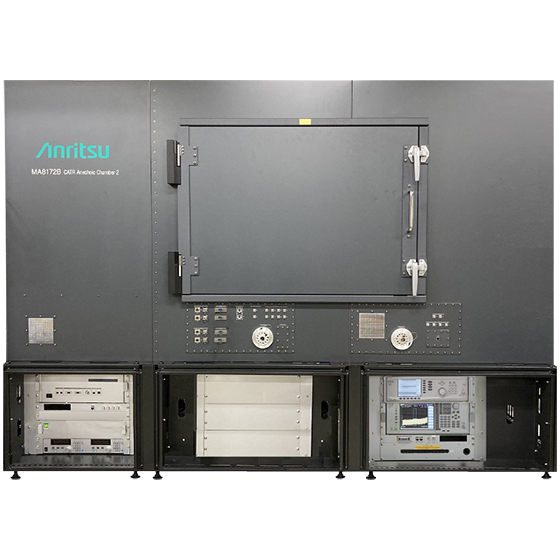

The Compact Antenna Test Range (CATR) Anechoic Chamber 2 MA8172B uses the 3GPP defined CATR method to implement 5G New Radio (NR) Over the Air (OTA) tests in a small space. The CATR Anechoic Chamber 2 also supports tests with the MA8172A, and supports 2 AoA RRM tests for evaluating UE communications quality and connection stability at handover between base stations.

Adopts 3GPP-compliant Compact Antenna Test Range (CATR) method
Supports conformance tests of 5G NR chipsets, devices, mmWave development and 2 AoA RRM
Easy transportation with division into three component parts, shortening introductory setup time
Full support for Alignment Option 1/2/3
Simple mounting/dismounting of test terminal, and high reproducibility of mounting position
Supports FR2 temperature test (temperature for extreme conditions: –10°C to +55°C)
Upgradeable from MA8172A
