T-PAD

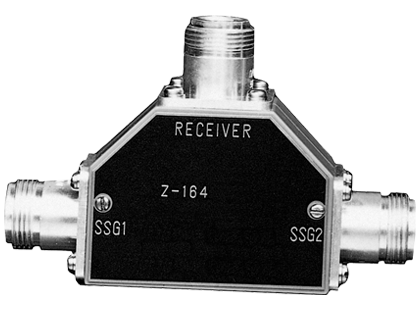

Z-164A

This product has been discontinued

DOWNLOADS

Overview
Library

Overview

Description
Features

The Z-164A is used as a matching pad for applying the mixed output of two signal generators to the input terminal of a receiver for measuring two-signal characteristics (such as the blocking and intermodulation characteristic) of the receiver.

Frequency Range: DC to 1 GHz
Impedance: 50 Ω
Connector: N-J
Insertion Loss: 6 ±0.5 dB

Library

Catalog

Catalog	Release Date
Z-164A T-PAD	02/12/2011
