MX727000A

V2X 802.11p Message Evaluation Software

MX727000A
overview

V2X Evaluations for United States, Europe and Japan

  • V2X Message Analysis for US/EU/Japanese Standard MX727020A/30A/40A
    • Displays and confirms V2X messages objectively using measuring instrument
    • Reduces burden of configuring objective evaluation environment at R&D evaluation
    • Supports US, EU and Japan message definitions to accelerate V2X development

The V2X 802.11p Message Evaluation Software MX727000A is designed to be used in conjunction with the Signal Analyzer MS269xA/MS2830A to demodulate, analyze, and display V2X messages

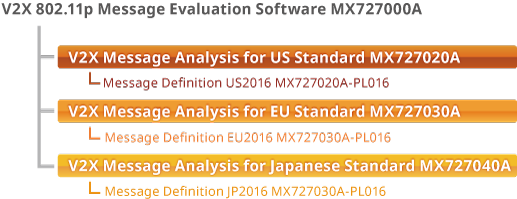

Figure 1: V2X 802.11p Message Evaluation Software MX727000A Configuration

Figure 1: V2X 802.11p Message Evaluation Software MX727000A Configuration

V2X Message Analysis for US/EU/Japanese Standard MX727020A/30A/40A

This software uses the MS269x/MS2830A Capture function to demodulate V2X messages at layers higher than the MAC layer and display them on a PC. Since demodulation, display, and analysis are performed using the measuring instrument, V2X messages can be evaluated with assured objectivity. Additionally, Supporting 3standards such as US, EU, and Japan, and covering the evaluation range from early R&D can reduce the burden of OBU and RSE’s development.

Figure 2. Outline of V2X Message Analysis Function MX7270x0A

Figure 2. Outline of V2X Message Analysis Function MX7270x0A
