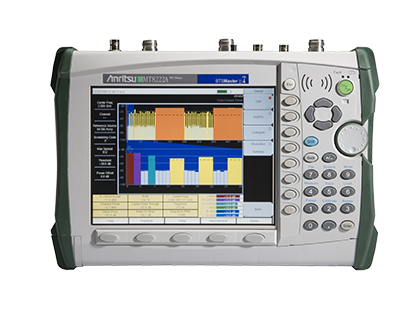

MT8222A

BTS Master

MT8222A
This product has been discontinued Replacement Model(s) : MT8220T
DOWNLOADS
Overview

The MT8222A BTS Master is an integrated multi‑functional base station test tool that eliminates the need to carry and to learn to use multiple test sets. The MT8222A measurement capabilities include: spectrum analyzer smart measurements, precision return loss, VSWR, cable loss, distance‑to‑fault, two port gain/loss, one‑port and two‑port magnitude and phase, interference analysis, spectrogram, and power meter.

  • 2-port Cable and Antenna Analyzer 10 MHz to 6 GHz
  • Bias Tee
  • GPS Receiver
  • Spectrum Analyzer 100 kHz to 7.1 GHz
  • Power Meter 10 MHz to 6 GHz
  • High Accuracy Power Meter (up to 26 GHz with external sensor)
  • Interference Analyzer 100 kHz to 7.1 GHz
  • Channel Scanner 100 kHz to 7.1 GHz
  • CW Signal Generator
  • Signal Quality Analyzers
  • GSM/EDGE, W-CDMA/HSPA+, LTE, TD-SCDMA/HSDPA
  • CDMA, EV-DO, Fixed WiMAX, Mobile WiMAX
  • Backhaul Quality Analyzers
  • T1, T3, E1
Applications

Cable and Antenna Analyzer Measurements

  • VSWR, Return Loss, Cable Loss, Distance-to-Fault (DTF) Return Loss, DTF VSWR, 1/2-port Phase, 2-port Gain, Smith Chart

Spectrum Analyzer Measurements

  • Field Strength, Occupied Bandwidth, Channel Power, ACPR, AM/FM/SSB Demodulation, C/I, Gated Sweep

Interference Analyzer Measurements

  • Spectrogram, Signal Strength Meter, Received Signal Strength Indicator (RSSI)

Channel Scanner Capability

  • Scan 20 channels at once by frequency or channel number, up to 1200 channels, auto-save with GPS tagging

CW Signal Generator

Signal Quality Analyzers Measurements

  • RF Quality Measurements, Modulation Quality Measurements, Over-the-Air Quality Measurements

Backhaul Quality Analyzer Measurements

  • Electrical Testing - Error Detection, Error Analysis, Rx Signal, VF

Related Links
Options


 Option

 Description
 MT8222A-010  Variable Voltage Bias Tee
 MT8222A-010A  High Voltage Variable Bias Tee
 MT8222A-0031  GPS Built-in Receiver (Requires Antenna P/N 2000-1528-R, sold separately)
 MT8222A-0019  High Accuracy Power Meter (Requires USB Power Sensor)
 MT8222A-0419  PIM Analyzer (requires PIM Master)



  MT8222A-0025  Interference Analyzer
 MT8222A-0027  Channel Scanner

 MT8222A-0026  6 GHz Cable and Antenna Analyzer (10 MHz to 6 GHz)

 MT8222A-0028  CW Signal Generator

 MT8222A-0090  Gated Sweep

 MT8222A-0040  GSM/GPRS/EDGE RF Measurements
 MT8222A-0041  GSM/GPRS/EDGE Demodulation

 MT8222A-0044  W-CDMA/HSDPA RF Measurements
 MT8222A-0045  W-CDMA Demodulation
 MT8222A-0065   W-CDMA/HSDPA Demodulation
 MT8222A-0035  W-CDMA/HSDPA Over-the-Air (OTA) Measurements

MT8222A-0060  TD-SCDMA/HSDPA RF Measurements
MT8222A-0061  TD-SCDMA/HSDPA Demodulation
MT8222A-0038  TD-SCDMA/HSDPA Over-the-Air (OTA) Measurements

 MT8222A-0541  LTE RF Measurements
 MT8222A-0542  LTE Modulation Measurements
 MT8222A-0546  LTE Over-the-Air (OTA) Measurements
 MT8222A-0042   cdmaOne / CDMA2000 1X RF Measurements
 MT8222A-0043  cdmaOne / CDMA2000 1X Demodulation
 MT8222A-0033  cdmaOne / CDMA2000 1X Over-the-Air (OTA) Measurements

 MT8222A-0062  CDMA2000 1xEV-DO RF Measurements
 MT8222A-0063  CDMA2000 1xEV-DO Demodulation
 MT8222A-0034  CDMA2000 1xEV-DO Over-the-Air (OTA) Measurements

 MT8222A-046  Fixed WiMAX RF Measurements
 MT8222A-047  Fixed WiMAX Demodulation

 MT8222A-0066  Mobile WiMAX RF Measurements
 MT8222A-0067  Mobile WiMAX Demodulation
 MT8222A-0037   Mobile WiMAX Over-the-Air (OTA) Measurements

 MT8222A-0051  T1 Analyzer
 MT8222A-0052  E1 Analyzer
 MT8222A-0053  T3/T1 Analyzer

 MT8222A-0064  DVB-T/H Digital Video Measurements
 MT8222A-0098  Standard Calibration
 MT8222A-0099  Premium Calibration

* Options 51 - T1 Analyzer, 52 - E1 Analyzer and 53 - T3/T1 Analyzer are mutually exclusive.
