All-in-One Support for RF Measurements and Protocol Tests in FR1 (to 7.125 GHz) and FR2 (Millimeter Wave) Bands
With a 5G base station emulation function, a single MT8000A test platform supports both the FR1 (to 7.125 GHz), including band n41, and the FR2 (millimeter wave) bands used by 5G. Combining it with the OTA Chamber enables both millimeter wave band RF measurements and beamforming tests using call connections specified by 3GPP. With the SmartStudio NR MX800070A, various functional tests by GUI operation only without requiring difficult scenario development are supported, also combining it with the Shield Box MA8161A supports functional tests in FR2 bands.
View 5G Device Function Tests Leaflet
RF TRx Test and Protocol Test Environment Image
Example of Millimeter-wave Band RF/Protocol Test in Combination with RF Chamber

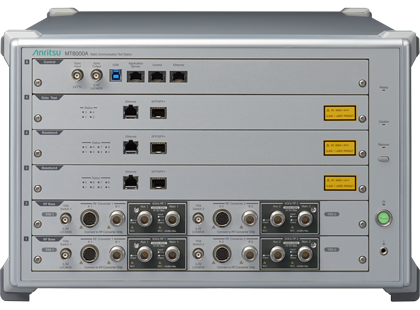

Radio Communication Test Station MT8000A
Shield Box MA8161A
With the Shield Box MA8161A, the MT8000A supports functional tests in FR2 (millimeter wave) bands.
||n41 (2.5 GHz)
||n78-79 (3.5 G/4.5 GHz)
||n257 (28 GHz)
||n260 (39 GHz)
Example of supported band
*: Please enquire about other supported bands.
Flexible Platform using Modular Architecture
The leading-edge design with flexibility and scalability uses a modular architecture. As well as supporting 4x4 MIMO and 8CA implemented by eMBB (Enhanced Mobile Broadband), it provides a flexible environment for future 5G test requirements, including URLLC (Ultra-Reliable and Low Latency Communications) and mMTC (massive Machine Type Communications)
Supports Existing LTE Test Environment
A comprehensive test environment is provided by making use of Anritsu's LTE test platform offering leading-edge functions based on the company's long experience in this market. Easy configuration of a linked environment for simulating 5G and LTE NSA (non-standalone) makes best use of measurement assets, such as the customer's test environment, test scenarios, etc.
Image of 5G NR NSA Measurement System using Anritsu LTE Measurement Resources
Supports Dynamic Spectrum Sharing (DSS) Condition
In DSS, the spectrum is allocated to both 4G and 5G by the scheduler intelligently, depending on the requirements. This is a much more efficient use of spectrum.
The MT8000A can measure throughput under DSS at several NR/LTE allocation conditions.
