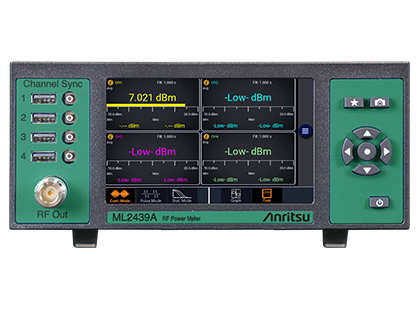

Channels: 2 CH Standard, 4 CH with Option ML2439A-0004
Frequency Range: 10 MHz to 50 GHz (sensor dependent)
Input level range: -60 dBm to +20 dBm (sensor dependent)
Sensors: MA2444xA Series, MA243xxA Series, MA242xxA 1, MA241xxA 1
| |
MA244xxA |
MA243xxA |
MA242xxA |
MA241xxA |
| Description |
USB |
USB |
USB |
USB |
| Measurements |
Average (RMS), Peak, Pulse |
Average Power (CW only) |
Average Power (RMS) |
Average Power (RMS) |
| In-line Forward and Reverse Measurements |
|
|
|
|
| Frequency (GHz)(1) |
0.05 to 40 GHz |
0.01 to 50 GHz |
0.01 to 18 GHz |
0.01 to 26 GHz |
| Dynamic Range (dBm)(1) |
-50 to +20 |
-70 to +20 |
-60 to +20 |
-40 to +20 |
| VBW |
Up to 195 MHz |
50 kHz |
|
|
| Average |
▬ |
▬ |
▬ |
▬ |
| Peak Power and Crest Factor |
▬ |
|
|
|
| CCDF and PDF |
▬ |
|
|
|
| PAE Measurement |
▬ |
|
|
|
| NIST Traceable Calibration |
Up to 18 GHz |
▬ |
▬ |
▬ |
| Applications |
CW, Pulse Profiling, Any Modulation |
CW |
CW, Pulse, Any Modulation |
CW, Pulse, Any Modulation |
| Compatible Power Meters |
ML2439A |
ML2439A |
ML2439A |
ML2439A |
Trigger: Normal, Auto, Auto pk-pk, Free Run
Automatic measurements: Pulse, statistical, and markers measurements
Display Modes: Continuous, Pulse and Statistical measurement( CCDF)
Display Format: Graph (power vs time or CCDF) and Text (Numeric display)
Display: 5-inch WVGA multi-touch display with intuitive graphical user interface
Remote Interface: GPIB, Ethernet
Weight: 4.8 lbs, 2.2 kg
Dimensions: (H x W x D) 3.5 x 8.3 x 11.2 (in), 89 x 211 x 284 (mm)
Note 1 : Except MA24103A, MA24105A and MA24106A sensors
