Cell Master

MT8213E

請求報價

下載

概述
應用
選配
資料庫

Overview

功能
描述
Software Tool Box

集 30 台分析儀功能於一體
電纜與天線分析儀： 2 MHz – 6 GHz
回波損耗 (Return Loss)、電纜損耗、VSWR、故障點定位
相位、雙埠傳輸量測
頻譜分析儀： 9 kHz – 6 GHz
干擾分析儀具備干擾映射 (Interference Mapping) 及GPS功能
高精確度功率計
3GPP, 包含LTE/LTE-A, 3GPP2及WiMAX訊號分析儀
ISDB-T and DVB-T/H signal analyzers
CPRI RF Measurements
OBSAI RF Measurements
室內與室外機站涵蓋率測試
易於使用的觸控螢幕
USB 介面
的掌上型設計
PIM Alert (a downloadable easyTest™ script)
標準 3 年保固 (電池 1 年保固)

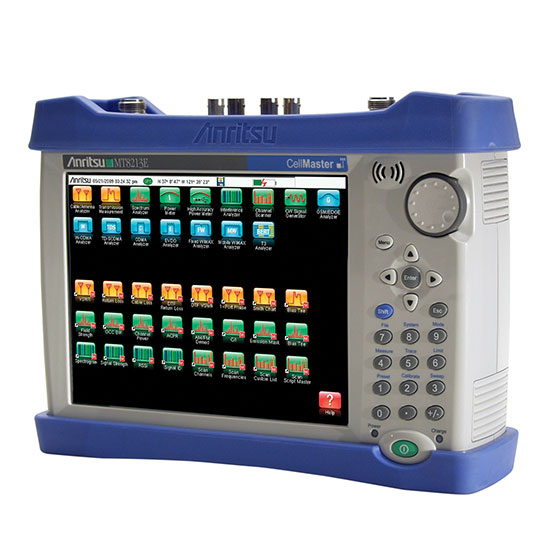

MT8213E Cell Master™ 是用於 2/3G/4G、WiMAX 基地台發射器測試以及 ISDB-T 與 DVB-T/H 數位廣播現場測試領域中最小、最輕且最經濟實惠的基地台分析儀。該分析儀非常適用於基地台的安裝和調試以及維護和故障排除，將所有基地台測試功能優化綜合於一台掌上型設備，無需多台獨立測試設備，因而工程師無需攜帶多台工具以及分別學習其操作方法。無論是掃瞄電纜、進行功率量測、查找干擾、解決基站訊號品質問題，還是驗證回程線路性能，Cell Master MT8213E 都是保證網路正常運行不可或缺的集成工具。

此外，使用easyTest Tools™可建立、傳遞及顯示螢幕上的工作指令，使電纜與天線掃頻人員可輕鬆執行，並可提升量測精確度、再現結果及減少重工次數。更多細節請參閱easyTest Tools頁面

The CPRI/OBSAI RF option allows users to see the Uplink and Downlink signals via the optical CPRI/OBSAI link in a traditional RF Spectrum and Spectrogram view.

Line Sweep Tools (LST)
Anritsu Line Sweep Tools (LST) is the latest generation of Handheld Software Tools, an industry standard. This PC based post-processing software efficiently manipulates line sweep and PIM traces for reporting purposes.

easyTest Tools (eTT)
easyTest Tools allows users to Create work instruction files on their PC, Deliver these files by e-mail, and then Display work instructions on supported instruments and modes. These easyTest™ files provide step-by-step instructions for both the test setup and instrument operation.

easyMap Tools (EMT)
easyMap Tools™ provides maps in formats that Anritsu's handheld spectrum analyzers can use for either coverage mapping or interference hunting. It helps users find and prepare geo-referenced maps and building floor plans for use by Anritsu handheld Spectrum Analyzers.

Master Software Tools (MST) Master Software Tools (MST)
Master Software Tools (MST) allows Anritsu handheld Spectrum Analyzer users to Capture, Analyze, and Document traces and measurements taken with a wide variety of Anritsu handheld spectrum analyzers.

應用

電纜和天線分析儀功能特點

量測項目：折返損耗、VSWR、電纜損耗、DTF 和相位
雙埠傳輸量測：高/低可調功率
掃瞄速度： 1 毫秒/資料點（典型值）
顯示幕：單或雙量測觸控螢幕
校準： OSL、InstaCal™ 和 FlexCal™
偏壓器：內置，32 V

頻譜與干擾分析儀功能特點

量測項目：佔用頻寬、通道功率、ACPR、C/I
干擾分析儀：光譜圖、訊號強度、RSSI、訊號 ID
動態範圍： > 95 dB，10 Hz RBW
DANL： -152 dBm，10 Hz RBW
雜訊強度：最大為 -100 dBc/Hz，10 kHz 偏移，1 GHz 下
頻率精度： < ±50 ppb with GPS On

訊號分析特點Signal Analyzer Highlights

3GPP 訊號分析GSM/EDGE、W-CDMA/HSPA+、TD-SCDMA/HSPA+、LTE/LTE-A、TD-LTE/LTE-A、NB-IoT
3GPP2 訊號分析cdmaONE/CDMA2000 1X、CDMA2000 1xEV-DO
IEEE 802.16 訊號分析Fixed WiMAX、Mobile WiMAX
數位電視 TV ISDB-T, DVB-T/H 訊號分析
20 MHz 解析頻寬

CPRI RF Highlights

CPRI Spectrum
CPRI Spectrogram
Layer 2 Alarms
SFP Data

OBSAI RF Highlights

RF spectrum and spectrogram measurements on OBSAI Link
OBSAI Alarms
SFP Data
Fast sweep speed
Tune & zoom feature

相關連結

選配

	選項	說明
	MT8213E-0021	雙埠傳輸量測
	MT8213E-0010	高壓可變偏壓器
	MT8213E-0031	內建GPS接收器（需另選購天線）
	MT8213E-0413	Ethernet 連接
	MT8213E-0019	高精度功率計（需要 USB 功率感測器)
	MT8213E-0025	干擾分析儀 (建議搭配選項31)
	MT8213E-0027	通道掃瞄儀
	MT8213E-0431	覆蓋映射（需搭配選項 31）
	MT8213E-0444	EMF 量測系統
	MT8213E-0090	通道掃描
	MT8213E-0028	C/W 訊號產生器 (需要 CW 訊號產生工具, P/N 69793)

	MT8213E-0880	GSM/EDGE 量測

	MT8213E-0881	W-CDMA/HSPA+ 量測 (建議搭配選項 31)

	MT8213E-0882	TD-SCDMA/HSPA+ 量測 (需搭配選項 31 以支援完整功能)

	MT8213E-0883	LTE/LTE-A FDD/TDD 量測 (需搭配選項 31 以支援完整功能)
	MT8213E-0886	256 QAM Demodulation for LTE Measurements (Requires Option 883)
	MT8213E-0887	NB-IoT Analyzer

	MT8213E-0884	CDMA/EV-DO 量測 (需搭配選項 31 以支援完整功能)

	MT8213E-0885	WiMAX Fixed/Mobile 量測 (需搭配選項 31 以支援完整功能)

	MT8213E-0030	ISDB-T 數字視頻量測
	MT8213E-0032	ISDB-T SFN 量測
	MT8213E-0079	ISDB-T BER 量測 (需搭配選項 30；不可並用選項 751 或 )

	MT8213E-0064	DVB-T/H 數位影像量測
	MT8213E-0078	DVB-T/H SFN 量測
	MT8213E-0057	DVB-T/H BER 量測 (需搭配選項 64；不可並用選項 751 或 )

	MT8213E-0752	CPRI LTE RF Software (Requires option 759.)
	MT8213E-0753	OBSAI LTE RF Software (Requires option 759.)
	MT8213E-0759	RF Over Fiber Hardware (Must be ordered with option 752 or 753.)

	MT8213E-0098	標準校正
	MT8213E-0099	高階校正

相關連結

資料庫

摺頁冊

摺頁冊	發行日期
Cell Master Product Brochure	2018/10/16
World's Most Trusted Family of RF and Microwave Test and Measurement Instruments	2018/9/26
World's Most Trusted Family of RF and Microwave Handheld Analyzers Product Brochure	2018/9/10
Cell Master MT8212E and MT8213E Quick Fact Sheet	2018/7/20
Anritsu RF and Microwave Handheld Analyzers Solution Poster	2018/4/24
Interference Hunting: 4 Steps to Success Brochure	2018/2/22
Electromagnetic Field Measurement System Product Brochure	2017/3/28
Installation, Maintenance and Optimization Solutions Brochure	2016/7/12

資料表

資料表	發行日期
Cell Master MT8212E and MT8213E Technical Data Sheet	2018/10/16
Product Information, Compliance, and Safety for Anritsu Handheld Instruments	2017/11/15
Cell Master Declaration of Conformity	2017/6/9
Digital Broadcast Analysis Options Technical Data Sheet	2012/1/17

應用說明

應用說明	發行日期
Understanding IBW In-Building Wireless: DAS to Small Cells Application Note	2018/3/28
RF Interference Hunting Concepts Application Note	2016/9/27
PIM Alert easyTest Tools Application for Anritsu BTS Master, Spectrum Master, and Site Master	2016/6/13
In-building Mapping with the Anritsu S412E LMR Master and the MA8100A Series TRX NEON Signal Mapper	2016/4/12
Identifying and Locating Cable TV Interference	2016/1/20
Coverage Mapping with GPS	2015/8/26
Anritsu ElectroMagnetic Field (EMF) Measurement System	2015/3/3
Guide to Spectrum and Signal Analysis	2014/2/19

傳單

傳單	發行日期
Base Station Analysis Solutions Leaflet	2018/7/24
Installation, Maintenance and Optimization Solutions Flyer	2018/3/28
PIM Hunter Passive Intermodulation Probe Product Flyer	2018/3/27
CPRI RF Measurement Product Flyer	2016/12/13
TRX NEON Signal Mapper MA8100A Series Product Flyer	2016/6/28
Spectrum Analysis Solutions Leaflet	2015/1/30

白皮書

白皮書	發行日期
Understanding Cable & Antenna Analysis	2017/10/24
Using Anritsu’s Handheld InterferenceHunter MA2700A	2016/8/30
Improving Wireless Network Flexibility Using CPRI Technology	2016/2/8

服務指南

服務指南	發行日期
Cable and Antenna Troubleshooting Guide	2013/3/12
TD-LTE eNodeB Troubleshooting Guide	2012/7/3
LTE eNodeB Troubleshooting Guide	2012/7/3
E1 Backhaul Testing Field User Guide	2010/4/2
T1/DS1 Backhaul Testing Field User Guide	2010/4/2
Spectrum Analyzers Field User Guide	2010/3/12
Fixed WiMAX Base Station Troubleshooting Guide	2010/1/29
Interference Troubleshooting Guide	2010/1/14
TD-SCDMA/HSDPA Base Station Troubleshooting Guide	2010/1/1
W-CDMA/HSDPA Base Station Troubleshooting Guide	2010/1/1
CDMA2000 1X Base Station Troubleshooting Guide	2010/1/1
CDMA2000 1x EV-DO Base Station Troubleshooting Guide	2010/1/1
Mobile WiMAX Base Station Troubleshooting Guide	2010/1/1
GSM/GPRS/EDGE Base Station Troubleshooting Guide	2008/10/29

目錄	發行日期
Precision RF & Microwave Components Catalog	2018/9/26

使用者手冊

使用者手冊	發行日期
Cell Master MT8212E and MT8213E User Guide	2018/9/17
Near-Field Probe Set User Guide	2012/5/9

度量指南

度量指南	發行日期
3GPP Signal Analyzer Measurement Guide	2018/9/17
CPRI RF Analyzer and BBU Emulator Measurement Guide	2018/7/24
Spectrum Analyzer Measurement Guide	2018/3/30
3GPP2 Signal Analyzer Measurement Guide	2017/11/15
WiMAX Signal Analyzer for Anritsu RF and Microwave Handheld Instruments	2017/11/15
Digital Television Signal Analyzer Measurement Guide	2017/11/15
Backhaul Analyzer Measurement Guide	2017/11/15
2-Port Transmission Measurement Guide	2017/11/15
Cable and Antenna Analyzer Measurement Guide	2017/11/15
Open Base Station Architecture Initiative (OBSAI) RF Analyzer Measurement Guide	2017/6/9
Power Meter Measurement Guide	2016/4/19
Cable and Antenna Analyzer Measurement Guide	2014/10/27
Spectrum Analyzer for Anritsu RF and Microwave Handheld Instruments Measurement Guide	2013/4/9

指令表

指令表	發行日期
easyTest Tools FAQ	2013/6/4

安裝指南

安裝指南	發行日期
Wireless Travel Router 2000-1752-R Installation Guide	2017/9/25

線上說明系統

線上說明系統	發行日期
Cell Master MT821xE Help	2017/11/21

程式設計手冊

程式設計手冊	發行日期
E-Series Handheld Instruments Programming Manual	2018/9/17

維護手冊

維護手冊	發行日期
Cell Master MT8212E/13E Maintenance Manual	2017/8/30

文章

文章	發行日期
Managing interference in densified networks	2016/10/4
Anritsu and TRX take indoor public safety signal mapping into 3D	2016/6/14
