Cell Master

MT8212E

請求報價

下載

概述
應用
選項
資料庫

Overview

功能
描述
技術

集 30 台分析儀功能於一體
電纜與天線分析儀： 2 MHz – 4 GHz
回波損耗 (Return Loss)、電纜損耗、VSWR、故障點定位
相位、雙埠傳輸量測
頻譜分析儀：9 kHz – 4 GHz
干擾分析儀具備干擾映射 (Interference Mapping) 及GPS功能
高精確度功率計
3GPP, 包含LTE/LTE-A, 3GPP2及WiMAX訊號分析儀
ISDB-T 和 DVB-T/H 訊號分析儀
CPRI RF Measurements
OBSAI RF Measurements
室內與室外機站涵蓋率測試
易於使用的觸控螢幕
USB 介面
掌上型設計
PIM Alert (a downloadable easyTest™ script)
標準 3 年保固 (電池 1 年保固)

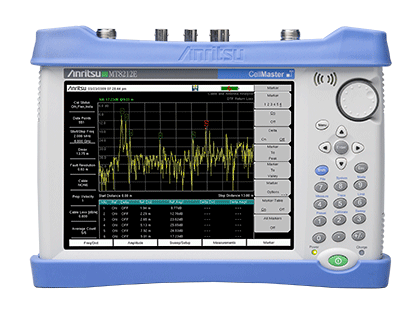

MT8212E Cell Master™ 是用於 2/3G/4G、WiMAX 基地台發射器測試以及 ISDB-T 與 DVB-T/H 數位廣播現場測試領域中最小、最輕且最經濟實惠的基地台分析儀。該分析儀非常適用於基地台的安裝和調試以及維護和故障排除，將所有基地台測試功能優化綜合於一台掌上型設備，無需多台獨立測試設備，因而工程師無需攜帶多台工具以及分別學習其操作方法。無論是掃瞄電纜、進行功率量測、查找干擾、解決基地台訊號品質問題，還是驗證回程線路性能，Cell Master MT8212E 都是保證網路正常運行不可或缺的集成工具。

此外，使用easyTest Tools™可建立、傳遞及顯示螢幕上的工作指令，使電纜與天線掃頻人員可輕鬆執行，並可提升量測精確度、再現結果及減少重工次數。更多細節請參閱easyTest Tools頁面

The CPRI/OBSAI RF option allows users to see the Uplink and Downlink signals via the optical CPRI/OBSAI link in a traditional RF Spectrum and Spectrogram view.

Base Station Testing

應用

電纜和天線分析儀功能特點

量測項目：折返損耗、VSWR、電纜損耗、DTF 和相位
雙埠傳輸量測：高/低可調功率
掃瞄速度： 1 毫秒/資料點（典型值）
顯示幕：單或雙量測觸控螢幕
校準： OSL、InstaCal™ 和 FlexCal™
偏壓器：內置，32 V

頻譜與干擾分析儀功能特點

量測項目：佔用頻寬、通道功率、ACPR、C/I
干擾分析儀：光譜圖、訊號強度、RSSI、訊號 ID
動態範圍： > 95 dB，10 Hz RBW
DANL： -152 dBm，10 Hz RBW
雜訊強度：最大為 -100 dBc/Hz，10 kHz 偏移，1 GHz 下
頻率精度： < ±50 ppb with GPS On

訊號分析特點Signal Analyzer Highlights

3GPP 訊號分析GSM/EDGE、W-CDMA/HSPA+、TD-SCDMA/HSPA+、LTE/LTE-A、TD-LTE/LTE-A
3GPP2 訊號分析cdmaONE/CDMA2000 1X、CDMA2000 1xEV-DO
IEEE 802.16 訊號分析Fixed WiMAX、Mobile WiMAX
數位電視 TV ISDB-T、DVB-T/H 訊號分析
20 MHz 解析頻寬

CPRI RF Highlights

CPRI Spectrum
CPRI Spectrogram
Layer 2 Alarms
SFP Data

OBSAI RF Highlights

RF spectrum and spectrogram measurements on OBSAI Link
OBSAI Alarms
SFP Data
Fast sweep speed
Tune & zoom feature

相關連結

選項

	選項	說明
	MT8212E-0021	雙埠傳輸量測
	MT8212E-0010	高壓可變偏壓器
	MT8212E-0031	內建GPS接收器（需另選購天線）
	MT8212E-0413	Ethernet 連接
	MT8212E-0019	高精度功率計（需要 USB 功率感測器)
	MT8212E-0025	干擾分析儀 (建議搭配選項31)
	MT8212E-0027	通道掃瞄儀
	MT8212E-0431	覆蓋映射（需搭配選項 31）
	MT8212E-0444	EMF 量測系統
	MT8212E-0090	通道掃描
	MT8212E-0028	C/W 訊號產生器 (需要 CW 訊號產生工具, P/N 69793)

	MT8212E-0880	GSM/EDGE 量測

	MT8212E-0881	W-CDMA/HSPA+ 量測 (建議搭配選項 31)

	MT8212E-0882	TD-SCDMA/HSPA+ 量測 (需搭配選項 31 以支援完整功能)

	MT8212E-0883	LTE/LTE-A FDD/TDD 量測 (需搭配選項 31 以支援完整功能)

	MT8212E-0884	CDMA/EV-DO 量測 (需搭配選項 31 以支援完整功能)

	MT8212E-0885	WiMAX Fixed/Mobile 量測 (需搭配選項 31 以支援完整功能)

	MT8212E-0030	ISDB-T 數字視頻量測
	MT8212E-0032	ISDB-T SFN 量測
	MT8212E-0079	ISDB-T BER 量測 (需搭配選項 30；不可並用選項 751 或 )

	MT8212E-0064	DVB-T/H 數位影像量測
	MT8212E-0078	DVB-T/H SFN 量測
	MT8212E-0057	DVB-T/H BER 量測 (需搭配選項 64；不可並用選項 751 或 )

	MT8212E-0752	CPRI LTE RF Software (Requires option 759.)
	MT8212E-0753	OBSAI LTE RF Software (Requires option 759.)
	MT8212E-0759	RF Over Fiber Hardware (Must be ordered with option 752 or 753.)

	MT8212E-0098	標準校正
	MT8212E-0099	高階校正
