無線通訊綜合測試站

MT8000A
overview

一體化支援FR1(~7.125 GHz)和FR2(毫米波)段之RF通訊量測與協定測試

具有5G基地台的仿真功能,單一MT8000A測試平台能支援5G使用之FR1(~7.125 GHz)與FR2(毫米波)段。將此功能與OTA Chamber結合時,能夠經由3GPP指定之呼叫通路來執行毫米波段的RF量測和波束成形測試。

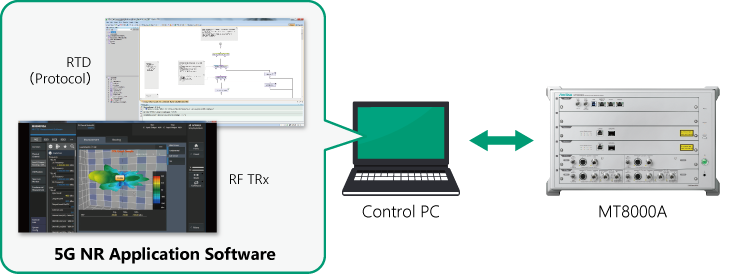

RF TRx Test and Protocol Test Environment Image
RF TRx Test and Protocol Test Environment Image



Example of Millimeter-wave Band RF/Protocol Test in Combination with RF Chamber
Example of Millimeter-wave Band RF/Protocol Test in Combination with RF Chamber



mt8000a-top-small

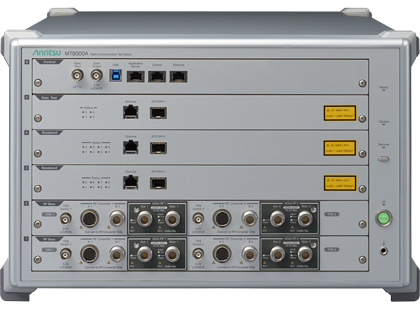

Radio Communication Test Station MT8000A

Shield Box MA8161A
Shield Box MA8161A

With the Shield Box MA8161A, the MT8000A supports functional tests in FR2 (millimeter-wave) bands.



Band n41 (2.5 GHz) n78-79 (3.5 G/4.5 GHz) n257 (28 GHz) n260 (39 GHz)
Example of supported band
Note: Please enquire about other supported bands.

使用模組化結構(Modular Architecture)之彈性化平台

此尖端設計採用模組化結構。此設計提供彈性化且擴展性面向未來科技的功能,不僅支援高速寬頻通訊,也支援最新的5G測試需求,其中包括URLLC(超高可靠和低時延通訊)和mMTC(大量型機械式通訊)。

支援現存之LTE測試環境

安立知的LTE測試平台提供了全面性的測試環境,這是基於本公司長久以來豐富的市場經驗所開發出領先業界的功能。此平台可輕鬆配置用於模擬5G和LTE NSA(非獨立)的連結環境,而能夠將量測功能的優勢(如客戶的測試環境、測試場景等)發揮到最大。

Image of 5G NR NSA Measurement System using Anritsu LTE Measurement Resources
Image of 5G NR NSA Measurement System using Anritsu LTE Measurement Resources

Note: 上述之設計、說明和外觀可能會在未事先通知的情況下有所變更。

支援動態頻譜共享(DSS)

為了更有效地使用通訊頻段,DSS會根據需要調度和動態分配同一頻段內的4G和5G信號。

DSS_Spectrum

MT8000A可以在各種NR / LTE分配條件下量測DSS中的吞吐量。

NR and LTE allocation
  • 一體化支援FR1(~7.125 GHz)和FR2(毫米波)段之RF通訊量測與協定測試
  • 與OTA測試暗室(Chamber)結合使用可支持毫米波段射頻測量,以及波束成形測試
  • 使用模組化結構(Modular Architecture)之彈性化平台
  • 支援現存之LTE測試環境

* 上述之設計、說明和外觀可能會在未事先通知的情況下有所變更。

Test solution for base stations  NEW

MT8000A Base Station Manufacturing Solution Features

The MT8000A is the ideal non-signaling RF test solution for manufacturing 5G base stations. Combination with the MX800045A and MX800046A software covers all the main Sub-6 GHz (FR1) and mmWave (FR2) frequency bands.

Up to Four TRx Ports for Efficient Production-Line Testing

With up to four installed TRx ports, the MT8000A handles both simultaneous and parallel measurements with ease, cutting test times, raising productivity, and reducing costs.

Simultaneous Measurement

The MT8000A support simultaneous measurement with up to four TRX ports and can cut test times for multi-antenna port base stations.

Parallel Measurement

The MT8000A supports independent parallel measurement with four (max.) TRX ports and can centralize test equipment to reduce costs. Unlike conventional systems requiring a test instrument for each test system, one MT8000A can handle up to four test systems.

Supports Both Sub-6 GHz (FR1) and mmWave (FR2) Band Measurements

Connecting the MT8000A and RF Converter (MA80003A) supports mmWave (FR2) measurements. The all-in-one MT8000A covers the main frequency ranges used by both the Sub-6 GHz (FR1) and mmWave (FR2) bands.



Features of Base Station Test Suite for NR mmWave MX800045A/Base Station Test Suite for NR Sub-6 GHz MX800046A

The Base Station Test Suite for NR mmWave MX800045A/Base Station Test Suite for NR Sub-6 GHz MX800046Am are non-signaling RF test software for production-line testing of 5G NR base stations. MX800045A/MX800046A software analyze downlink signals and measure RF characteristics for the 5G NR Sub-6 GHz (FR1) and mmWave (FR2) bands.

All-at-Once Signal Analysis and RF Characteristics Measurement

The MX800045A/MX800046A software can analyze frequency errors and EVM signals while measuring RF characteristics such as adjacent channel leakage power, OBE, etc. RF test times are shorter because there is no need to switch the signal analysis software and spectrum analyzer for each measurement item.

All-at-Once Multicarrier Analysis

The MX800045A/MX800046A software supports all-in-one multiple component carrier measurements. The characteristics of each single carrier can be measured quickly at the same time without needing to measure each single carrier separately.

Name/Model Sub-carrier Spacing Channel Bandwidth Maximum Number of Component Carriers
Base Station Test Suite for NR mmWave MX800045A 120 kHz 100 MHz 8
200 MHz 4
400 MHz 2
Base Station Test Suite for NR sub-6 GHz MX800046A 15 kHz 20 MHz 2
30 kHz 20, 40, 60, 80, 100 MHz
Brochure: Base Station measurement software MX800045A/46A >
