Handheld Spectrum Analyzer delivers the highest continuous frequency coverage and real-time spectrum analysis bandwidth up to 110 MHz to address current and emerging applications

頻率範圍:9 kHz 至 9/14/20/26.5/32/43.5/54 GHz

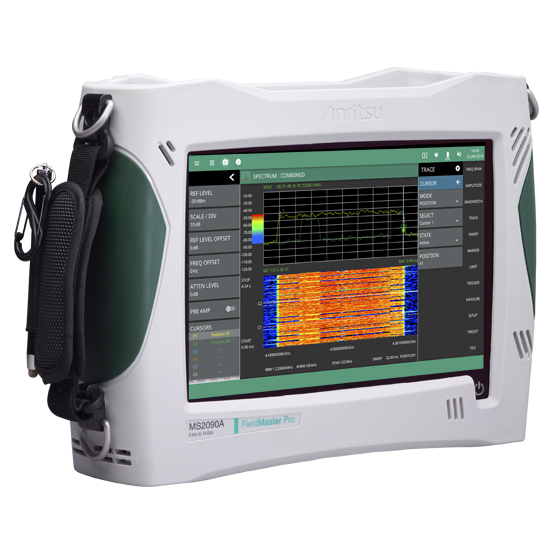

Anritsu 的 Field Master Pro MS2090A 射頻頻譜分析儀是一款精巧的掌上型儀器,能夠提供前所未有的效能。With continuous frequency coverage from 9 kHz to 54 GHz, the Field Master Pro MS2090A is specifically designed to meet the test challenges of a full range of other wireless technologies in use today, including: 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar.

Field Master Pro MS2090A 為掌上型觸控式螢幕頻譜分析儀提供最高等級的射頻效能,且顯示平均雜訊強度 (DANL) 為 -164 dBm,三階截點 (TOI) 為 +20 dBm (典型值)。這使得頻譜清理、無線電校準、諧波和失真等測量比以往更加準確。對於數位系統上的調製測量,110 MHz 調製頻寬結合最佳相位雜訊效能可有效提升測量精確度,而 ±0.5 dB 的典型振幅準確度則可讓您在測試發射器功率和偽訊號時信心十足。

該儀器堅固耐用,適合現場使用,且所有版本均提供全方位的功能,以加速和簡化測量,同時增強可用性。RTSA 的頻率範圍為 20 MHz (標準) 至 110 MHz (選配),可為全面的 ISM 頻段訊號分析提供蜂巢式干擾監測功能。所有版本不但可作為全跨距掃描調諧頻譜分析儀,還提供頻譜圖顯示,有助於監測間歇或乾擾訊號的射頻頻譜。整合式通道功率和佔用頻寬測量可簡化公共無線電傳輸的測量和特性分析工作。5G 訊框的 IQ 資料擷取功能可使用標準資料分析工具擷取和儲存 IQ 資料,以便在 PC 上進行離線處理。

  • 9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
  • DANL:-164 dBm (使用前級放大器)
  • TOI:+20 dBm (典型值)
  • 分析頻寬:110 MHz
  • Amp 範圍:DANL 至 +30 dBm
  • 1 GHz 的相位雜訊:-110 dBc/Hz,偏移為 100 kHz (典型值)
  • Demodulation: 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
  • 解析度頻寬 (RBW):1 Hz 至 10 MHz
  • RTSA 頻寬:22, 55, 110 MHz (option dependent)
  • 振幅準確度:<14 GHz ± 1.3 dB (± 0.5 dB 典型值)
  • Zero span with 60 ns minimum span
  • IQ capture and streaming

Atomic Clock External Frequency Reference for Handheld Instruments

With an extremely low power consumption of <200 mW, the MA25401A brings the accuracy and stability of an atomic clock frequency reference to Anritsu’s handheld products. The MA25401A Atomic Clock Frequency Reference has short-term stability (Allan Deviation) of 3.0e–10 @ t = 1 sec, typical long-term aging of <9e–10 per month, and maximum frequency change of ±5e–10 over an operating temperature range of –10 °C to 55 °C. The MA25401A 10 MHz output may be used to synchronize the internal frequency reference to an external reference clock to within 5 ppb accuracy. A USB C interface is used for power.


MA25424A IQ Data Converter is required in order to stream data from the Field Master Pro MS2090A spectrum analyzer to the Bird IQC5000B RF record and playback system.

MA25424A IQ Converter Box


MX280006A IQ Acquisition Tool supports IQ streaming to a PC from Anritsu’s Field Master. The tool helps establish a connection from the PC to the instrument using the IP address. Users then setup an IQ stream via Ethernet or PCIe (MS2090A only) and the IQ Capture Tool facilitates the transfer into PC storage.

PCIe Streaming Kit

MA25101A PCIe Streaming Kit works in conjunction with Option 125 IQ Streaming to stream high bandwidth data directly to a PC. The kit includes a PCIe cable, a PCIe card, and two sizes of PC mounting brackets.

2000-1985-R Isotropic EMF Probe for use with Option 445

The 2000-1985-R Isotropic EMF Probe, in conjunction with MS2090A Option 445 EMF Meter, offers a broadband EMF measurement from 20 MHz to 40 GHz with excellent accuracy and speed. Simply connect the probe to a USB port on the Field Master Pro, open the EMF Meter application (requires Option 445) and easily measure the EMF energy as a percentage of FCC public, FCC technician, ICNIRP public, or ICNIRP public limits.

MS2090A EMF 2000-1985-R

PC based VSA software for use with IQ data captured from a Field Master Pro MS2090A Handheld Spectrum Analyzer.

MX280005A Vector Signal Analysis PC software for Field Master Pro MS2090A is for testing physical layer modulation quality of various transmission standards. It serves a wide variety of markets, from aerospace to public safety (TETRA) to satellite communications and commercial electronics (ZigBee, Wi-Fi).

The MX280005A Vector Signal Analysis PC software is designed to perform physical layer modulation analysis of common communication transmitter signals. During the design and manufacturing stages of a wireless communication system, it is common to measure the modulation quality with benchtop instruments. Using the IQ capture option of the Field Master Pro MS2090A (Option 128 required) together with the MX280005A software these measurements can be validated in a field environment. Framed and unframed signals are supported. In framed mode, the software decodes common wireless signals including public safety (TETRA, P25, and DMR) to aerospace and satellite communications. In unframed mode, the software analyzes continuous modulation such as DQPSK, QAM, ASK, and FSK. The Field Master Pro MS2090A supports IQ captures up to 110 MHz bandwidth meaning narrow band communications signals or wideband satellite downlink signals can be captured and analyzed with the same application.

MX280005A software can initiate the capture of IQ data from a Field Master Pro MS2090A over an Ethernet connection or a data capture can be triggered manually through the Field Master Pro MS2090A touchscreen. Multiple analysis formats are provided including signal spectrum, EVM, constellation diagrams, eye diagrams, and numeric result tables. A comprehensive insight into all aspects of the transmitter performance is provided as multiple results windows can be displayed simultaneously.

Directional Antennas

2000-1411-R 824 MHz to 896 MHz, N(f), 12.3 dBi, Yagi
2000-1412-R 885 MHz to 975 MHz, N(f), 12.6 dBi, Yagi
2000-1413-R 1710 MHz to 1880 MHz, N(f), 12.3 dBi, Yagi
2000-1414-R 1850 MHz to 1990 MHz, N(f), 11.4 dBi, Yagi
2000-1415-R 2400 MHz to 2500 MHz, N(f), 14.1 dBi, Yagi
2000-1416-R 1920 MHz to 2170 MHz, N(f), 14.3 dBi, Yagi
2000-1659-R 698 MHz to 787 MHz, N(f), 10.1 dBi, Yagi
2000-1660-R 1425 MHz to 1535 MHz, N(f), 14.3 dBi, Yagi
2000-1715-R Directional Antenna, 698 MHz to 2500 MHz, N(f), gain of 2 dBi to 10 dBi, typical
2000-1726-R Antenna, 2500 MHz to 2700 MHz, N(f), 14.1 dBi, Yagi
2000-1747-R Antenna, Log Periodic, 300 MHz to 7000 MHz, N(f), 5.1 dBi, typical
2000-1748-R Antenna, Log Periodic, 1 GHz to 18 GHz, N(f), 6 dBi, typical
2000-1777-R Portable Directional Antenna, 9 kHz to 20 MHz, N(f)
2000-1778-R Portable Directional Antenna, 20 MHz to 200 MHz, N(f)
2000-1779-R Portable Directional Antenna, 200 MHz to 500 MHz, N(f)
2000-1812-R Portable Yagi Antenna, 450 MHz to 512 MHz, N(f), 7.1 dBi
2000-1825-R Portable Yagi Antenna, 380 MHz to 430 MHz, N(f), 7.1 dBi

Portable Antennas

2000-1200-R 806 MHz to 866 MHz, SMA(m), 50 Ω
2000-1473-R 870 MHz to 960 MHz, SMA(m), 50 Ω
2000-1035-R 896 MHz to 941 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1030-R 1710 MHz to 1880 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1474-R 1710 MHz to 1880 MHz with knuckle elbow (1/2 wave)
2000-1031-R 1850 MHz to 1990 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1475-R 1920 MHz to 1980 MHz and 2110 MHz to 2170 MHz, SMA(m), 50 Ω
2000-1032-R 2400 MHz to 2500 MHz, SMA(m), 50 Ω (1/2 wave)
2000-1361-R 2400 MHz to 2500 MHz, 5000 MHz to 6000 MHz, SMA(m), 50 Ω
2000-1751-R 698 MHz to 960 MHz, 1710 MHz to 2100 MHz, 2500 MHz to 2700 MHz, SMA(m), 2 dB, typical, 50 Ω
2000-1636-R Antenna Kit (Consists of: 2000-1030-R, 2000-1031-R, 2000-1032-R, 2000-1200-R, 2000-1035-R,
2000-1361-R, and carrying pouch)

Directional Horn Antennas

2000-1867-R 17.6 GHz to 26.7 GHz, WR42, 25 dBi gain
2000-1868-R 26.4 GHz, to 40.1 GHz, WR28, 25 dBi gain
2000-1869-R 33.0 GHz to 50.1 GHz, WR22, 25 dBi gain
2000-1870-R 39.3 GHz to 59.7 GHz, WR19, 25 dBi gain


The 5G Evolution of Indoor Wireless Networks for Smart Buildings and Manufacturing Facilities

5G technology has introduced some exciting possibilities for in-building functions. The “smart” buildings and manufacturing facilities of tomorrow will include new functions such as IoT, factory automation, machine learning devices, and cloud compute applications. To handle these new features, network architectures will change, frequency bands will be added, and new network features will be introduced. In this webinar, we will examine how the indoor wireless networks will evolve as we move to 5G, and the challenges in managing these complex networks to ensure performance and reliability for both commercial as well as the public safety networks.

Understanding Real-Time Spectrum Analysis

Real-time spectrum analysis (RTSA) provides signal insight previously only available in high-end lab and benchtop solutions. RTSA allows gapless capture and display of rapidly changing and highly intermittent signals. The digital nature of RTSA also makes a variety of analysis and display technologies possible that traditionally required multiple hardware platforms.


Delivering the highest levels of performance available in a handheld RF spectrum analyzer, the Field Master Pro MS2090A instrument gives field engineers and technicians unparalleled measurement accuracy previously reserved for only benchtop instruments.

  • Interference hunting and spectrum clearing networks – fast sweep speeds, low distortion front-end, and spectrogram display help deploy new network efficiently, ensuring spectrums are clear and validating that all legacy users have stopped all transmission.

  • Broadcast transmitter analysis – a comprehensive range of transmitter measurements – including: harmonic, spurious, occupied bandwidth, channel power, and adjacent channel power – ensures conformity to regulatory requirements

  • Microwave radio links – with a frequency option up to 54 GHz and exceptional sensitivity for dish alignment, power and modulation bandwidth can be verified during installation or maintenance testing with a waveguide horn antenna.

  • Satellite system monitoring – ideal for monitoring downlink signals to search for interference and noise

  • Pulse Radar Measurements - The wide bandwidth of the MS2090A enables detailed analysis of pulsed radar signals. In zero span, resolution bandwidth can be set as high as 40 MHz (option dependent), enabling a sweep time as low as 60 ns and amplitude measurements of pulses as narrow as 20 ns.

  • 5GNR base station measurement – validate the performance of the gNB base station with essential measurements that are in full compliance with 3GPP TS 38.104 V15, including:
    • frequency error
    • time offset
    • cell/sector ID
    • modulation quality
    • unwanted emissions
    • occupied bandwidth
    • adjacent channel leakage ratio
    • transmitter spurious to 12.75 GHz
    • EIRP
    • synchronization signal block (SSB)

  • 5G coverage mapping – receive a clear representation of the signal strength of 5G transmitters over intended geographic area by continuously measuring RF data – including 5G channel power, EIRP, or RSRP – with results graphically displayed on a digital map or building floor plan.
頻率範圍 MS2090A-0709 9 kHz 至 9 GHz
MS2090A-0714 9 kHz 至 14 GHz
MS2090A-0720 9 kHz 至 20 GHz
MS2090A-0726 9 kHz 至 26.5 GHz
MS2090A-0732 9 kHz 至 32 GHz
MS2090A-0743 9 kHz 至 43.5 GHz
MS2090A-0754 9 kHz 至 54 GHz
DANL (含前級放大器) -164 dBm
TOI +20 dBm
分析頻寬 110 MHz
解調製 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
Amp 範圍 DANL 至 +30 dBm
1 GHz 的相位雜訊 -110 dBc/Hz,偏移為 100 kHz (典型值)
解析度頻寬 (RBW) 1 Hz 至 10 MHz
輸入 SWR 1.5
振幅準確度 < 14 GHz ±1.3 dB (±0.5 dB 典型值)
RTSA 頻寬 22, 55, 110 MHz (option dependent)
特性 說明
MS2090A-0709 9 kHz 至 9 GHz
MS2090A-0714 9 kHz 至 14 GHz
MS2090A-0720 9 kHz 至 20 GHz
MS2090A-0726 9 kHz 至 26.5 GHz
MS2090A-0732 9 kHz 至 32 GHz
MS2090A-0743 9 kHz 至 43.5 GHz
MS2090A-0754 9 kHz 至 54 GHz
MS2090A-0006 Remove WiFi and Bluetooth
MS2090A-0024 Interference Finder
MS2090A-0031 GPS 接收器 (需要 GPS 天線,單獨出售)
- 2000-1528-R GPS 天線,SMA(m) 和 5 公尺 (15 英尺) 電纜,需要 5 直流電壓
- 2000-1652-R GPS 天線,SMA(m) 和 0.3 公尺 (1 英尺) 電纜,需要 3.3 或 5 直流電壓
- 2000-1760-R GPS 天線,SMA(m),無電纜,2.5 至 3.7 直流電壓
MS2090A-0103 50 MHz 分析頻寬
MS2090A-0104 110 MHz 分析頻寬
MS2090A-0126 IQ Waveform Capture (non export controlled)
MS2090A-0127 IQ Waveform Streaming (non export controlled)
MS2090A-0128 Vector Signal Analysis Enabled (requires option 124 or 126)
MS2090A-0199 即時頻譜分析儀
MS2090A-0400 Vision Monitor Enabled
MS2090A-0407 High-Speed Port Scanner
MS2090A-0421 Pulse Analyzer
MS2090A-0444 EMF Measurement (SPA mode, frequency selective; requires Anritsu Isotropic Antenna)
MS2090A-0445 EMF Meter Enabled (Broadband EMF measurements from 20 MHz to 40 GHz with the 2000-1985-R Isotropic EMF Probe)
MS2090A-0883 LTE FDD Measurements (requires Option 31)
MS2090A-0888 5G NR 下行量測 (需要選件 31)
MS2090A-xxxx-097 ISO17025 和 ANSI/NCSL Z540-1 的認可校準 (xxxx 是頻率選項編號)
MS2090A-xxxx-098 ISO17025 和 ANSI/NCSL Z540-1 的標準校準 (xxxx 是頻率選項編號)
MS2090A-xxxx-099 ISO17025 和 ANSI/NCSL Z540-1 的高階校準及測試資料 (xxxx 是頻率選項編號)
