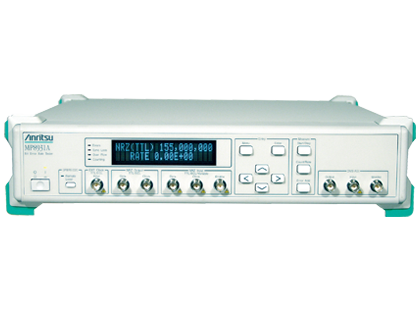

Bit Error Rate Tester

MP8931A

此產品已停產

概述
資料庫

Overview

功能
描述

PN9/15/23 stage and ALL 0 / 1, 1010 can be found by sending
As measured interface NRZ, DVB-SPI, DVB-ASI standard
DVB I / F with a choice of locations in the data packet error rate measurement
Errors can be measured by inserting

MP8931A Bit Error Rate Tester is the only digital broadcast I / F is a DVB-ASI, DVB-SPI and conventional NRZ I / F with a bit error measurement.

Item	Specification
Test interface	NRZ, DVB-SPI, DVB-ASI
Remote control interface	GBIB、RS-232C
Internal clock frecuency	1 kHz～155 MHz
External clock frquency	1 kHz～155 MHz, TTL/ECL, 75Ω/1MΩ
Dispatched measured pattern	PN9, PN9_INV, PN15, PN15_INV, PN23, PN23_INV,ALL"0", ALL"1", "1010"
Error insertion	No, manual insertion sequence(10^-3,10^-4,10^-5,10^-6,10^-7)
Bits set measurement time	Test time (0～59seconds, 0～59minutes, 0～999hours) Test bits (103～1015)、manual
AUTOSYNC (Out of work time)	ON (remeasurement after resynchronization)、 OFF (without re-synchronization, continuous measurement)
DVB packet interface type	①204 : (1)+187+(16) packets ②188 : (1)+187 packets ③204 : (1+3)+184+(16) packets ④188 : (1+3)+184 packets ⑤204 : (1)+203 packets ⑥204 : (1+3)+200 packets
Throughput settings	1 MHz～27 MHz

資料庫

摺頁冊

摺頁冊	發行日期
MP8931A Bit Error Rate Tester	2010/12/16

作業手冊

作業手冊	發行日期
MP8931A Bit Error Rate Tester Operation Manual	2013/8/22
MP8931A Bit Error Rate Tester Operation Manual Errata 2.1	2012/4/17
MP8931A Bit Error Rate Tester Operation Manual Errata 3.1	2012/4/17
MP8931A Bit Error Rate Tester Operation Manual Errata 1.1	2012/4/17
