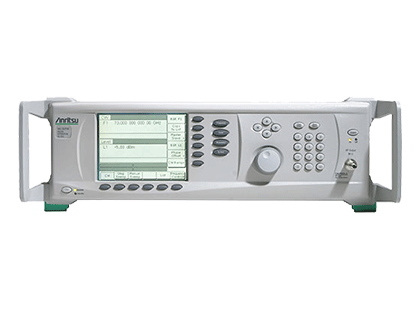

射频/微波信号发生器

MG3690C

此产品已停产替换型号： MG362x1A

下载

概述
规格
资料库

Overview

特征
描述
Cables and Adapters
Accessories
Industries

For supporting documentation, see Library.

The MG3690C series of broadband signal generators covers audio, HF, VHF, UHF, RF and microwave frequencies from 0.1 Hz to 70 GHz in single coaxial output and up to 500 GHz or beyond, with external multipliers. In addition, it is easy to operate either through intuitive front panel controls or remotely via GPIB or Ethernet connectivity. Thus, the MG3690C series is an ideal signal source for both RF and microwave requirements, fully configurable for simple to high performance applications.

The MG3690C offers three levels of SSB phase noise performance; Standard, Ultra low phase noise (option 3) and Premium phase noise (option 3X). The MG3690C also has an optional full suite of modulation capabilities including AM, FM, Phase and Pulse to address simple to complex signal simulation requirements.

Cables and Adapters

Model Number	Description
N120-6	RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
NS120MF-6	RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 to 18 GHz, 50 Ω, 15 cm (5.9 in)
1091-26-R	SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R	SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R	SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R	SMA(f) to N(f), DC to 18 GHz, 50 Ω
34NK50	Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50	Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50	Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50	Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
34RSN50	Precision Ruggedized Adapter, WSMA(m) to N(m), DC to 18 GHz, 50 Ω
34RKNF50	Precision Ruggedized Adapter, K(m) to N(f), DC to 18 GHz, 50 Ω
34RKRK50	Precision Ruggedized Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
34RVNF50	Precision Ruggedized Adapter, V(m) to N(f), DC to 18 GHz, 50 Ω
34RVRK50	Precision Ruggedized Adapter, V(m) to K(m), DC to 40 GHz, 50 Ω
34RVRV50	Precision Ruggedized Adapter, V(m) to V(m), DC to 60 GHz, 50 Ω
K220B	Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B	Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B	Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C	Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C	Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C	Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A	Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A	Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A	Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A	Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω

Test Port Cables, Flexible, Ruggedized, Phase Stable

Model Number	Description
15NNF50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B	Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B	Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A	Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60	Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100	Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-206-R	Flexible Phase Stable Cable, DC to 70 GHz, 24 in (61 cm), V(m) – V(f), 50Ω
806-209-R	Flexible Phase Stable Cable, DC to 70 GHz, 36 in (91.5 cm), V(m) – V(f), 50Ω
806-304-R	Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-396-R	Flexible Low Loss Phase Stable Cable, DC to 70 GHz, 36 in (91.5 cm), V(m)-V(f), 50Ω

Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)

Model Number	Description
3670N50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1	Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2	Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω

Tools

Model Number	Description
01-200	Calibrated Torque End Wrench, GPC-7 and Type N
01-201	Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203	Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204	End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)

Radar and Electronic Peacekeeping

规格

业界最佳宽频率覆盖在独立同轴输出中是 0.1 Hz 到 70 GHz	能够从单机中生成基频、IF、RF 和微波信号，实现了设备的最大利用率
Three tiers of Phase Noise performance to address simple to complex applications	适用于 LO 替代和时脉生成应用
业界最佳脉冲调制 100 ns 稳定脉冲宽度和 10 ns 分辨率，并且具备生成单脉冲、双脉冲、三脉冲和四脉冲的能力	最为全面的高性能窄脉冲雷达仿真和测试
切换速度快 5 ms（典型值）	极大地缩短了测试时间并提高了盈利能力。
全面模拟调制内部和外部 AM、FM、相位和脉冲调制	适用于任何类型的模拟信号仿真
高输出功率	消除了任何外部扩展需求，从而节省成本
高度可配置性	可根据您目前的应用和预算从众多选件中选择合适的系统配置，’同时保留将来更新的价值
高度可靠性为期 3 年的标准质保	缩短停机时间

技术指标	发布日期
RF and Microwave Signal Generator MG3690C Technical Data Sheet	2023/3/14
EU Declaration of Conformity for the Signal Generator MG3690C	2019/6/21
EU Declaration of Conformity for the Millimeter-Wave Source Multiplier Modules	2017/6/9
MG3690C射频/微波信号发生器技术指标手册	2014/12/4

应用指南	发布日期
Conducting Gain Compression Measurements Utilizing Peak Power Sensors Application Note	2020/7/14
Radar Testing with Simulation Signals Application Note	2013/11/12
