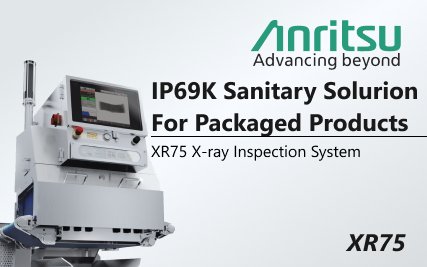

XR75 IP69K Sanitary

XR75 Product Setup Wizard Demo

Anritsu XR75 X-Ray Inspection - more affordable to purchase, own and operate

X-Ray Inspection Systems Introduction - Anritsu

XR75 X-ray Conveyor Belt Removal for Cleaning

Applications

Metal

0.5-0.8 mm
Wire

0.5-0.7 mm x 2 mm long
Glass

2-3 mm
Bone (red meat)

2-3 mm cubed
Bone (poultry-application dependent)

DualX Poultry recommended
Stone

2-3 mm
Virtual weight function
Missing item, count, broken product detection

Request a Quote

Specification

Classification

34
Max product width

370 mm
Max product height

200 mm
Dimensions

1689 mm L x 1000 mm W
Belt width

430 mm
Max belt speed

10 to 80 m/min (varies by weight)
IP rating

IP69k (conveyor & parts)

Features

ALL - Advanced Long Life technology

HD imaging with beryllium tube

Auto-learn product set-up wizard

Imagery & reject logs

No hollow tubing members

Sanitary features

Tool-free removable belting

Fully sealed welded seams

Protective screen cover

Polished, accessible inspection area

Heavy-duty solid roller, pillow block bearings, solid frame

Blue sealed conveyor belt

Standoffs throughout, including labels, motor, and decking

Fully sealed feet (optional)

Minimized harborage areas

Benefits

The XR75 IP69K Sanitary is ideal for the highest cleaning and sanitation standards required by meat processors and other demanding industries. The IP69K is the highest protection IP rating. It requires equipment to be completely dustproof and withstand washdowns at pressures which blast away debris and dirt with rates of 14 to 16 l/min, and at sanitizing temperatures up to 176°F (80°C). The washdown protection features include gasketed joints, robust HMI screen guard, and a heavy-duty stacklight cage. Its sanitary design promotes thorough water run-off with a sloped surface, drain holes, and minimized harborage areas.

Withstands the harshest washdowns
Reduces the risk of bacteria and recalls
Easy tool-free removal of conveyor belt and curtains
Suitable for high-speed lines with lighter products

Anritsu Academy

Learn more about our X-ray systems and how to use them. Browse our selection of downloadable sell sheets, brochures, white papers, application reports, demo videos, and more.

Keep Your Line Running At Peak Performance

Quicca3, Remote Support, Ethernet/IP & OPC-UA
Our full suite of connectivity and data solutions allows connectivity of your machines, comprehensive live monitoring, archiving and reporting.

QUICCA3

A quality management and control system that monitors equipment status and analyzes production data from one single dashboard at any location.

Remote Support

A software-based service that allows an Anritsu technician to connect remotely to your machine to diagnose issues or demonstrate tasks and functions live to operators.

Ethernet/IP & OPC-UA

Anritsu equipment supports common data communication protocols to execute critical daily operations, such as saving X-ray images, managing logs, or sending operation commands.
