Frequency Range: 9 kHz to 9/14/20/26.5/32/43.5/54 GHz

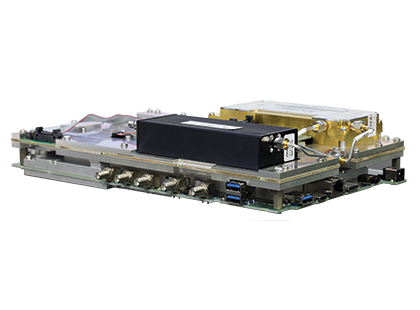

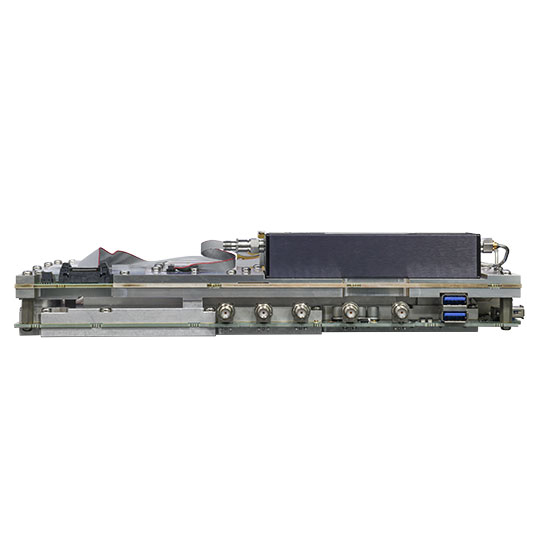

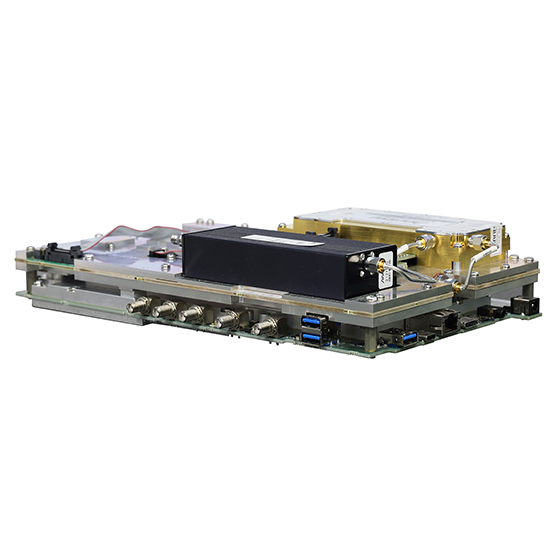

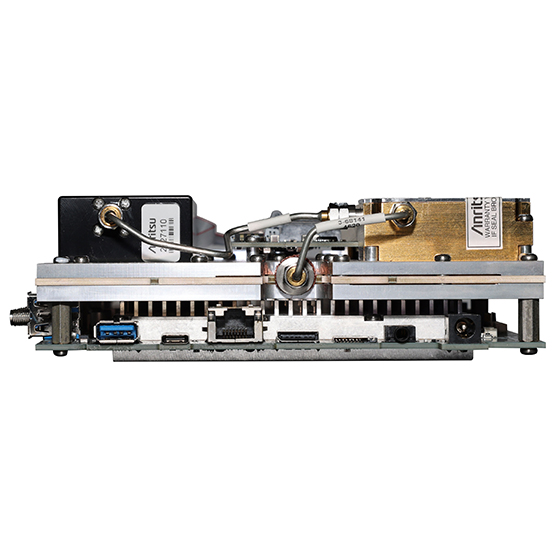

The Anritsu MS27200A Microwave Spectrum Monitor Module represents decades of experience in spectrum analysis that can be integrated into any system. It has advanced built-in capabilities such as 5G, LTE, AM/FM, WCDMA, RTSA, and IQ capture and streaming. The module can perform a multitude of measurements without the need for an external PC to process the trace data. All communication is done via SCPI commands.
The MS27200A provides the top-tier RF performance for any system. With a displayed average noise level (DANL) of -164 dBm and Third-Order Intercept (TOI) of +20 dBm (typical), it provides top-level accuracy performance out of your spectrum analyzer. Providing top-level accuracy performance out of your spectrum analyzer. The module has up to 110 MHz analysis bandwidth, providing a powerful RTSA and the ability to capture large bandwidth signals.
The small form factors allow it to be easily integrated into various platforms and systems. The module allows for fast development without the need to develop a spectrum analyzer. Perfect for any SIGINT, TSCM, interference hunting, or drone detection application.
- 9 kHz to 9/14/20/26.5/32/43.5/54 GHz
- DANL: -164 dBm (with preamp)
- TOI: +20 dBm (typical)
- Analysis bandwidth: 110 MHz
- Amp range: DANL to +30 dBm
- Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
- Demodulation: 5GNR, LTE FDD/TDD, RF, and modulation quality plus SSB signal analysis
- Channel Scanner Resolution bandwidth (RBW): 1 Hz to 10 MHz
- Real-Time Spectrum Analysis (RTSA) 110 MHz bandwidth
- Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
- Zero span with 60 ns minimum span
- IQ capture and streaming
- AM/FM modulation quality measurements
- Uplink/Downlink interference analysis
Anritsu Mobile Interference Hunting System — Quick. Reliable. Multi-Emitter.

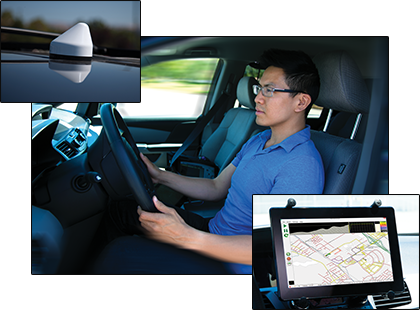

Anritsu’s Mobile InterferenceHunter MX280007A is a quick and reliable way to find single or multiple sources of interference. The ability to work with multiple signal sources, reflections, RF shadows, drifting signals, bursty signals, and multi-path distinguish the Mobile InterferenceHunter MX280007A from more expensive solutions targeted at single fixed frequency interference sources.
The Mobile InterferenceHunter’s post-capture analysis capability allows users to modify search parameters without re-driving the route. This allows re-analysis of the captured data as well as consulting with experts.
The Mobile InterferenceHunter works with the broad array of Anritsu’s handheld spectrum analyzers, providing interference hunting and spectrum clearing capability from 9 kHz to 54 GHz. The Mobile InterferenceHunter is a quick, reliable, and multi-emitter enabled solution to your interference hunting and spectrum clearing needs.
Mobile InterferenceHunter
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer

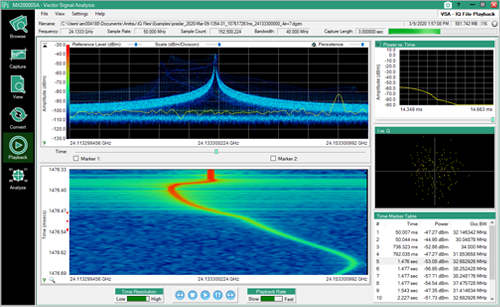

IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Remote Spectrum Analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements and playback IQ data with high frequency and time resolution.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software

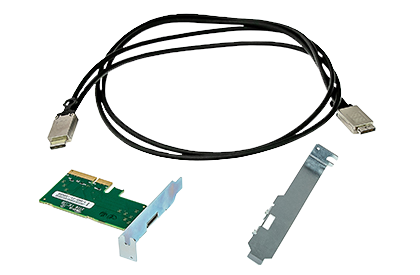

IQ Data can be captured or streamed to a PC via USB, Ethernet, or PCIe interface using the MA25101A IQ Streaming PCIe kit.
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.
Vision Monitor
Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software
