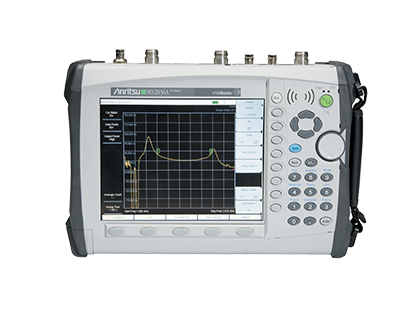

VNA Master

MS2034A

This product has been discontinued Replacement Model(s) : MS2034B

Overview
Options
Library

Overview

Description
Features

For field engineers and technicians who need all essential RF measurements anytime and anywhere, the MS2034A VNA Masters are the first and only truly portable handhelds with integrated 2-port vector network analyzer from 2 MHz to 4 GHz, spectrum analyzer from 9 kHz to 4 GHz, and power meter capabilities in a single instrument.

Ideally suited for aerospace and defense application, the VNA Master offers valuable measurement capabilities that can replace obsolete instruments and improve operator mobility. In this way, field engineers and technicians can more quickly install, deploy, and maintain RF systems in the field.

VNA Master is also an excellent solution for low-cost manufacturing and other general purpose applications given the broad frequency coverage, excellent performance, and integrated capabilities.

Vector Network Analysis from 2 MHz to 4 GHz
Spectrum Analysis from 9 kHz to 4 GHz
Power Meter analysis from 10 MHz to 4 GHz
Vector Corrected 1-port and 1-path 2-port measurements for phase matching cables and precisely finding faults in antennas, connectors, and cables
Vector Voltmeter replacement
2 ms/data points sweep speed
USB/Ethernet for data transfer
Store 1000 traces and setups in internal memory
Memory card slot for data storage and transfer
High resolution daylight viewable TFT color display
Built-in and custom editable Cable and Signal Standard List
Local Languages: English, Spanish, Italian, French, German, Japanese, Korean, and Chinese.
Automate repetitive tasks with remote programming via Ethernet connector
Weight 9 lbs (4 kg)

Options

Option	Description	Option Ordering Number
Option 5	Power Monitor (requires external detector)	MS2034A-005
Option 10	Bias Tee variable voltage	MS2034A-010
Option 15	Vector Voltmeter	MS2034A-015
Option 25	Interference Analysis	MS2034A-025
Option 19	High Accuracy Power Meter (requires PSN50 or MA24106A, sold separately)	MS2034A-019
Option 27	Channel Scanner	MS2034A-027
Option 31	GPS Receiver (includes GPS antenna)	MS2034A-031

Related Links

Library

Brochure

Brochure	Release Date
USB Power Sensor MA24106A Product Brochure	12/05/2015

Datasheet

Datasheet	Release Date
Ruggedized Test Port Cables Technical Data Sheet	5/10/2011
Cable Assemblies 15 Series Technical Data Sheet	11/08/2010

Application Note

Application Note	Release Date
Practical Tips on Making Vector Voltmeter (VVM) Phase Measurements Application Note	18/11/2009

User Guide

User Guide	Release Date
VNA Master MS2024A/26A/34A/36A User Guide	12/02/2008
Handheld VNA Master MS2024A, MS2026A, MS2034A, and MS2036A	1/12/2006

Measurement Guide

Measurement Guide	Release Date
Spectrum Analyzer Measurement Guide	9/04/2013

Instruction Sheet

Instruction Sheet	Release Date
Line Sweep Tools FAQ	20/10/2014

Programming Manual

Programming Manual	Release Date
VNA Master MS2024A/26A/34A/36A Programming Manual	27/06/2008

Maintenance Manual

Maintenance Manual	Release Date
VNA Master MS203xA Maintenance Manual	19/12/2008
