| Model |

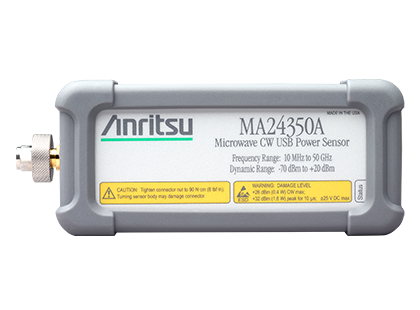

MA24350A |
| Frequency Range |
10 MHz — 50 GHz, V(m) Connector
|
| Dynamic Range |
–70 dBm — +20 dBm |
| SWR (x:1) |
<1.90, < 50 MHz
<1.17, 50 MHz — 150 MHz
<1.08, 150 MHz — 2 GHz
<1.16, 2 GHz — 6 GHz
<1.21, 6 GHz — 18 GHz
<1.29, 18 GHz — 33 GHz
<1.44, 33 GHz — 40 GHz
|
Measurement Uncertainty1
(dB) |
+20 dBm — +15 dBm
+15 dBm — -70 dBm
0.18
0.15
10 MHz — 18 GHz
0.21
0.17
18 GHz — 50 GHz
|
| RF Connector |
V(m) Connector |
1 Expanded uncertainty with K=2 for CW measurements after zero operation. Includes linearity over temperature uncertainties, but not the effects of mismatch, zero set and drift, or noise. Specifications apply over a temperature range of 0 °C — 50 °C and a 60 minute warm up period.
