Sequence Software
LinkAnyArts-SC2

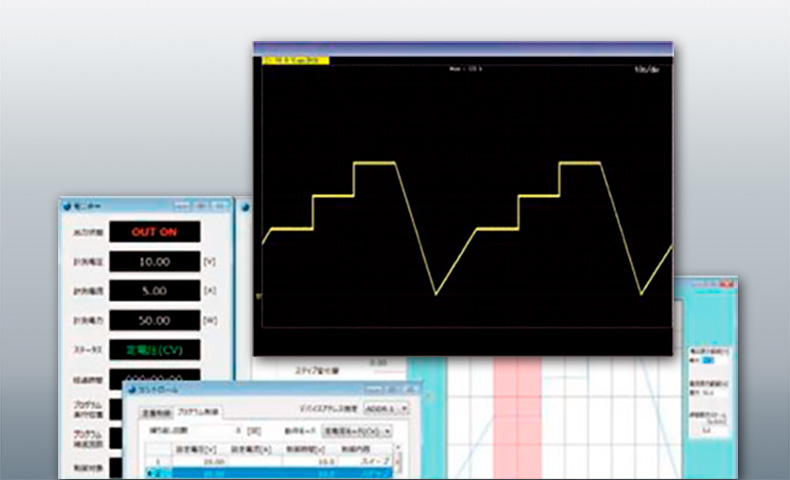

LinkAnyArts-SC2 is the dedicated Sequence Control Software for Takasago products. By combining it with RZ-X2-100K-HG, it enables the creation of up to approximately one million steps of basic test sequences required for various applications, significantly expanding the number of sequences that can be registered on RZ-X2-100K-HG alone.
LinkAnyArts-SC2 is installed on a Windows PC and controls RZ-X2-100K-HG via Ethernet. Parameters are set by entering values directly through the GUI. Created sequences can be stored on the PC and reused as a library.
During test execution, real-time monitoring is available, and test results are saved on the PC, making data management and comparison easy.
Features
- Multiple control modes: CC (Constant Current), CV (Constant Voltage), and CP (Constant Power)
- Program control type: Step, Sweep and Output off
- Long-duration tests with up to approx. 1 million steps
- Real-time monitoring to check the test system’s status
- Data storage and graph display functions
- Simultaneous control of multiple test systems connected in parallel or series configuration.
- Integration with external devices (CAN, LAN, GPIB, etc.)
- Safety features (test stop triggered by anomaly detection) and constant power settings
- Data logging (saved in CSV format)
- Graph display and analysis for visualizing test results
- Simplified battery emulation pattern creation (full-scale battery emulation requires LinkAnyArts-BT)
Use Case
