X-ray Inspection System

DualX Poultry

The best performance for chicken bone detection with IP69k & sanitary design.

Revolutionizing Poultry Inspection

Detecting bone fragments in poultry products has long been a challenge for food manufacturers. Anritsu's second-generation dual energy X-ray inspection system overcomes these challenges by accurately differentiating bone from meat, ensuring the highest levels of food safety.

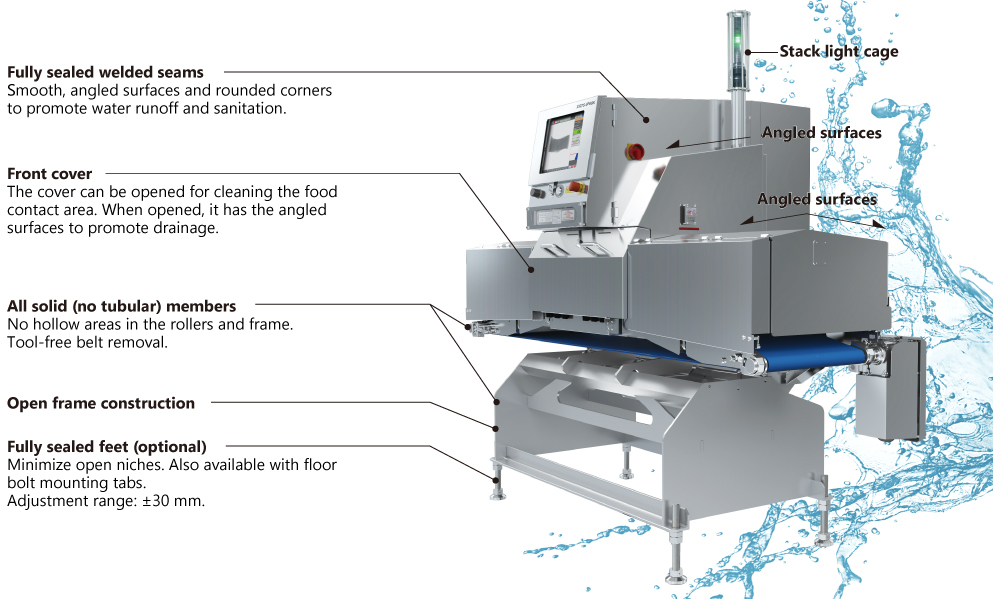

IP69k & Sanitary Design

The robust, open design promotes thorough drainage　and allows accessible high-pressure cleaning. Sloped surfaces, full sealed welds,　and sealed hygienic belt minimize harborage points for continuous sanitary　operation.

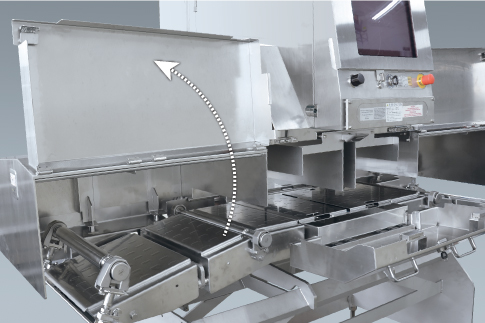

Open access to food contact area

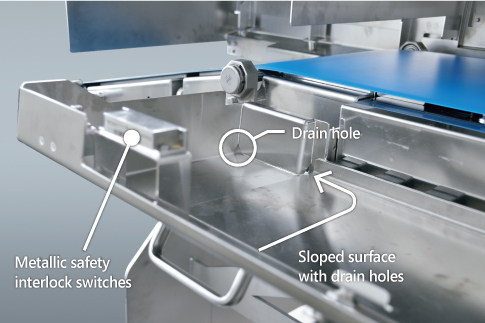

Smooth, sloped surfaces that resist liquid pooling and promote drainage

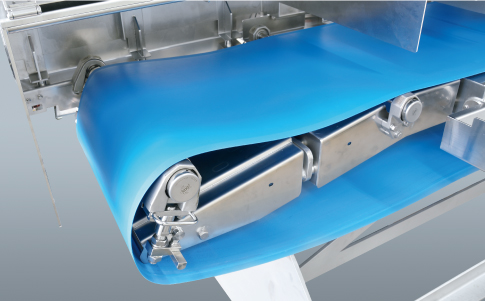

Hygienic conveyor belt
The belt is fully sealed with special coating that prevents the invasion of liquid or bacteria.

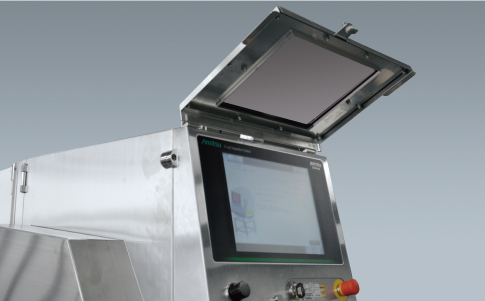

Protective screen cover

DOWNLOAD BROCHURE CONTACT US

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

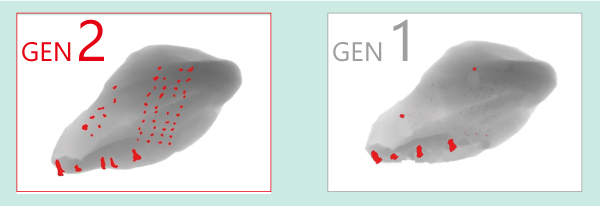

Industry leading bone detection capability
IP69K/Sanitary design
Super long life sensor

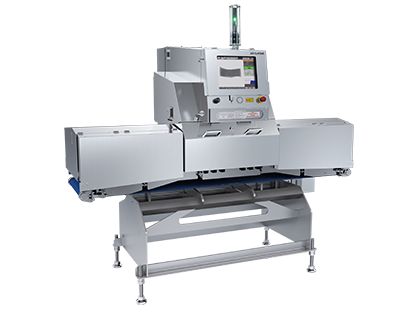

XR75 platform

The best performance for chicken bone detection with IP69k & sanitary design.

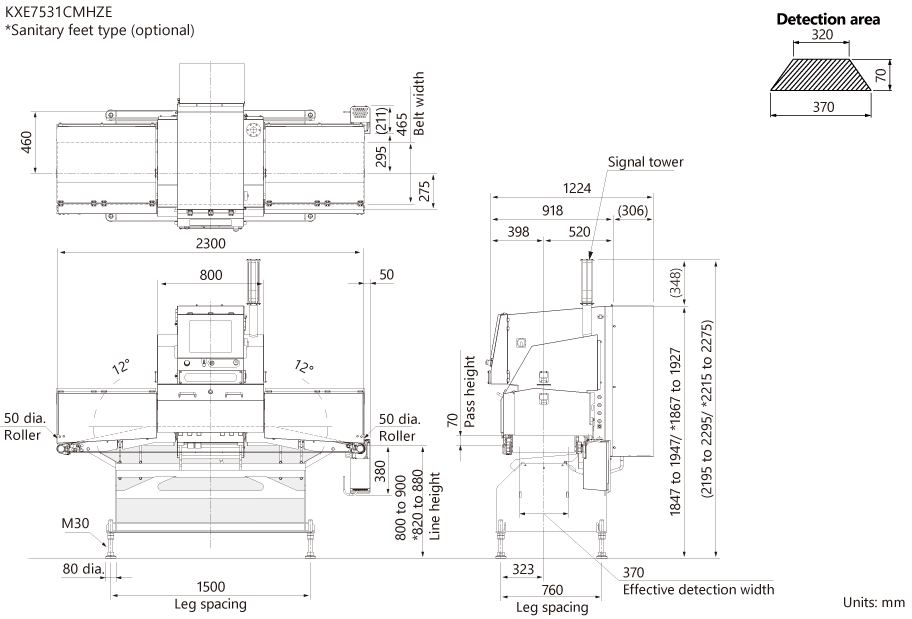

External Dimensions

Related Links

Specifications

Model	KXE7531CMHZE
X-ray output	Tube voltage 30 to 60 kV, tube current 0.4 to 10.0 mA, output 350 W
Safety	Maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Product type	Unpackaged food applications
Detection area^{1, 2}	Maximum width 370 mm, maximum height 70 mm
Belt width	465 mm
Preset memory	200
Belt speed³ / Maximum product weight⁴	10 to 45 m/min, maximum 25 kg
Power requirements⁵	200 Vac to 240 Vac, single phase, 47 Hz to 63 Hz, 2500 VA or less (standard)
Mass⁶	723 kg
Environmental conditions	Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor: IP69K (maximum water temperature: 80℃) Other parts: IP69K (maximum water temperature: 60℃)
Exterior	Stainless steel (SUS304)

1 : The product size should fall below the detection area.
2 : The entrance and exit may require covers depending on the length of a product.
3 : Variable depending on Product No.
4 : Sum total of product weight on the conveyor.
5 : Allowable power fluctuation range is ±10%.
6 : Mass without option.
