X-ray Inspection System

DualX+ Fish

The best performance for fish bone detection with IP69k & sanitary design.

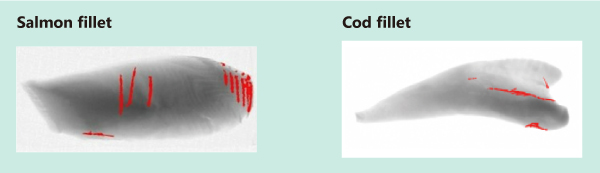

Unmatched Fish Bone Detection Performance

Detecting fish bones has been challenging in the industry. Fish bones have low densities and do not usually appear clearly in X-ray images. Our cutting-edge dual-energy sensor and proprietary algorithms have overcome this limitation, enabling highly sensitive and reliable detection of even pin bones.

IP69K & Sanitary Design

The robust, open design promotes thorough drainage　and allows accessible high-pressure cleaning. Sloped surfaces, full sealed welds,　and sealed hygienic belt minimize harborage points for continuous sanitary　operation.

Open access to food contact area

Smooth, sloped surfaces that resist liquid pooling and promote drainage

Hygienic conveyor belt
The belt is fully sealed with special coating that prevents the invasion of liquid or bacteria.

Protective screen cover

DOWNLOAD BROCHURE CONTACT US

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

Industry leading bone detection capability
IP69K/Sanitary design
Super long life sensor
XR75 platform

The best performance for fish bone detection with IP69k & sanitary design.

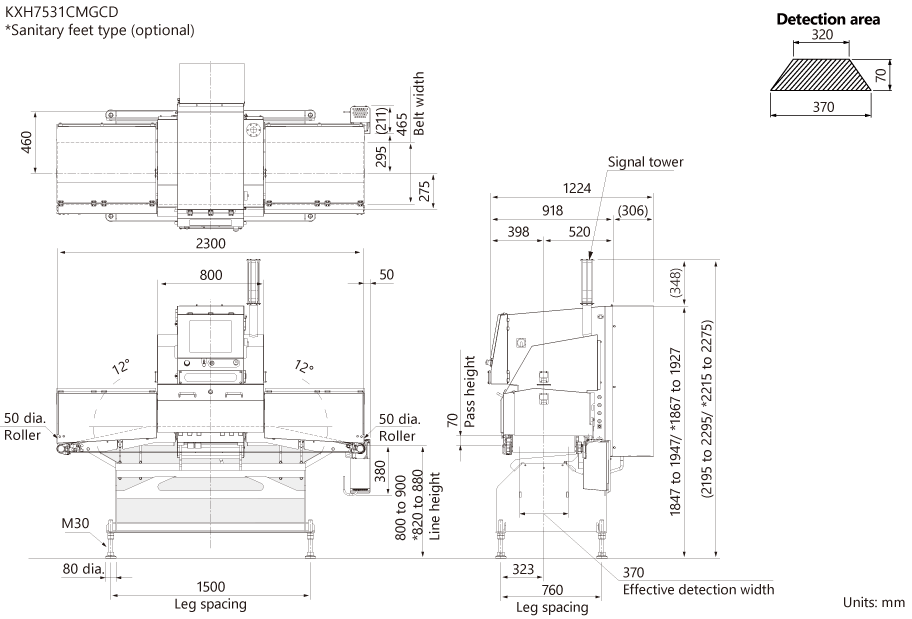

External Dimensions

Related Links

Specifications

Model	KXH7531CMGCD
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 300 W
Safety	Maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Product type	Unpackaged food applications
Detection area^{1, 2}	Maximum width 370 mm, maximum height 70 mm
Belt width	465 mm
Preset memory	200
Belt speed³ / Maximum product weight⁴	10 to 45 m/min, maximum 25 kg
Power requirements⁵	200 Vac to 240 Vac, single phase, 47 Hz to 63 Hz, 2500 VA or less (standard)
Mass⁶	723 kg
Environmental conditions	Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor: IP69K (maximum water temperature: 80℃) Other parts: IP69K (maximum water temperature: 60℃)
Exterior	Stainless steel (SUS304)

1 : The product size should fall below the detection area.
2 : The entrance and exit may require covers depending on the length of a product.
3 : Variable depending on Product No.
4 : Sum total of product weight on the conveyor.
5 : Allowable power fluctuation range is ±10%.
6 : Mass without option.
