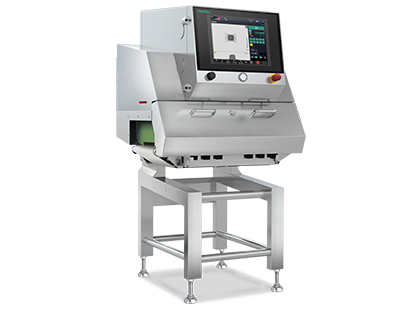

X-ray Inspection System

XR76 Split Conveyor (Beam Pass-Through)

The space-saving design makes it ideal for high-speed packaging lines for lightweight and small bags.

contact-us

Minimizes the effects of curtains to ensure stable conveyance of lightweight and small-bagged items.

Lightweight, small packet-sized items under inspection may experience unstable conveyance due to contact with the X-ray leakage prevention curtains, which can interfere with the inspection process.

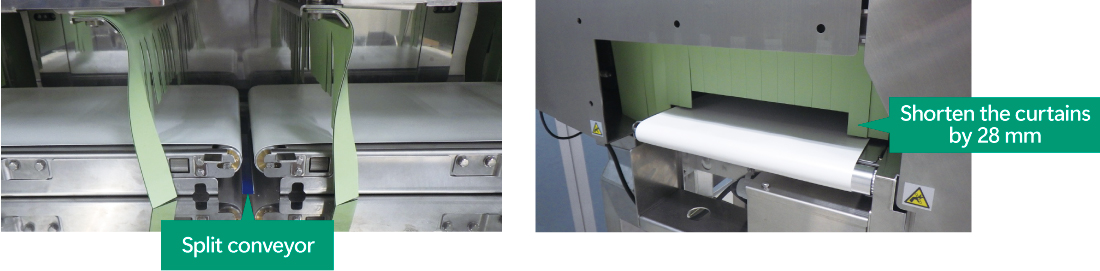

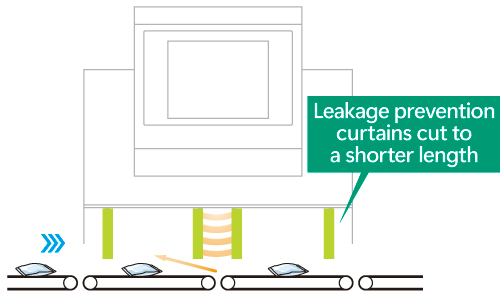

Leakage prevention curtain cut to a shorter length

Although the curtain is partially cut, the X-ray leakage is suppressed to a level equivalent to that of standard models due to the split conveyor structure and reduced X-ray output, ensuring safe usage.

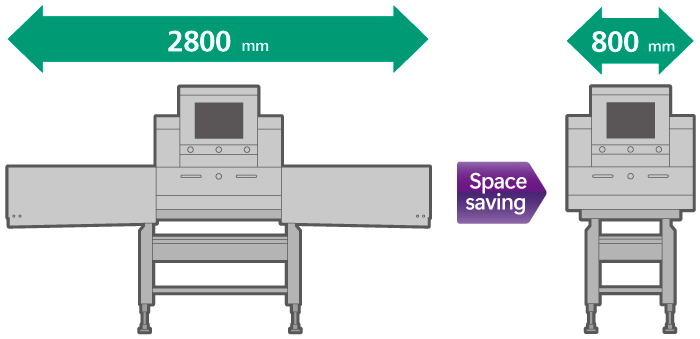

Space-saving design achieved

Compared to the covered type with a 30 mm curtain cut, this design significantly reduces the required installation space.

Example of food applications

For further product detail, please refer to the product brochure which you can download from the button below.

DOWNLOAD BROCHURE CONTACTS US

X-ray Product Top Page >

Overview
EXTERNAL DIMENSIONS
SPECIFICATIONS

Overview

Features
Description

Minimizes the effects of curtains to ensure stable conveyance of lightweight and small-bagged items
Space-saving design achieved

The space-saving design makes it ideal for high-speed packaging lines for lightweight and small bags.

EXTERNAL DIMENSIONS

KXS7620DGBTV

EXTERNAL DIMENSIONS

Please note the following specification limitations for this model:

Detection sensitivity may vary due to lower X-ray output.
Maximum product weight is 2 kg.
Conveyor section is not waterproof.
1-Pass Product Setup is not supported.

For further details, please contact our sales representative.

Related Links

SPECIFICATIONS

Model	KXS7620DGBTV
Detection area ^{1, 2}	Maximum width 210 mm, maximum height 50 mm
Belt width	250 mm
Conveyor speed/Maximum product weight ³	10 to 90 m/min, maximum 2 kg
Mass ⁴	235 kg
Display	15-inch LCD with capacitive touch panel
Exterior	Stainless steel (SUS304)
Preset memory	200 or 999 (Switchable)
X-ray output	Tube voltage 50 kV, tube current 0.4 to 0.5 mA, maximum 25 W
Safety	X-ray leakage maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Environmental conditions	Temperature: 0 ℃ to 35 ℃, Humidity: 30 % to 85 %, non-condensing
Power requirements	100 Vac to 240 Vac, single phase, 50/60 Hz, 700 VA or less, Allowable power fluctuation range ±10 %
Protection class	Conveyor: IP40 ⁵, Other parts: IP66 ⁶

1: The product size should fall below the detection area shown in the above external dimensions.
2: The entrance and exit may require covers depending on the length of a product.
3: Sum total of product weight on the conveyor.
4: Mass without option.
5: Waterproof and dustproof protection class is designed in accordance with IEC60529.
6: Waterproof protection class is equivalent to IPX6, excluding the duct. Dustproof protection class is equivalent to IP6X excluding negative pressure condition.

Note: The noise level is 72 dB(A) in terms of A-weighted sound pressure level.
