X-ray Inspection

XR75 Standard

XR75 Standard gives food & pharma producers the best combination of contaminant detection, reliability and low total cost of ownership.

The XR75 makes x-ray inspection more affordable to purchase, own and operate.

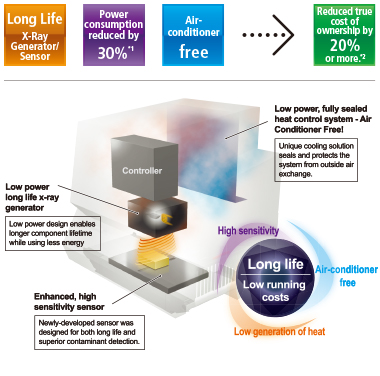

Introducing Anritsu's Advanced Long Life Technology

The highly engineered high sensitivity x-ray generator and sensor provide outstanding sensitivity at lower energy levels. The result is superior performance, extended life of cycles and reduced true cost of ownership. The low output x-ray generator reduces heat generation, eliminating the need for cooling system, resulting a 30% reduction in power consumption.

*1) Comparison with conventional models with air-conditioner. *2) It is the estimated value by Anritsu and may vary depending on the usage condition of machines.

ALL:Anritsu's Advanced Long Life Technology

Easy to Operate

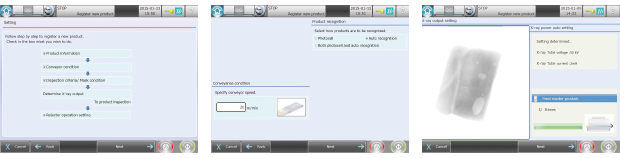

＜Simple step-by-step product setup＞ Product Registration Navigation simplifies parameter setting procedures with step-by-step illustrated instructions.

＜Easy to adjust sensitivity＞ An x-ray processed image and a projection monitor on which detection signals are shown graphically are spotted vertically on the screen. The detection limit value can be easily adjusted.

Simple Maintenance

No tools are required for removing/attaching the conveyor belts and rollers including the front cover and x-ray leakage prevention curtains.

The system's angled surfaces prevent water from accumulating after system cleaning.

X-ray Product Top Page

Overview
Detection areas

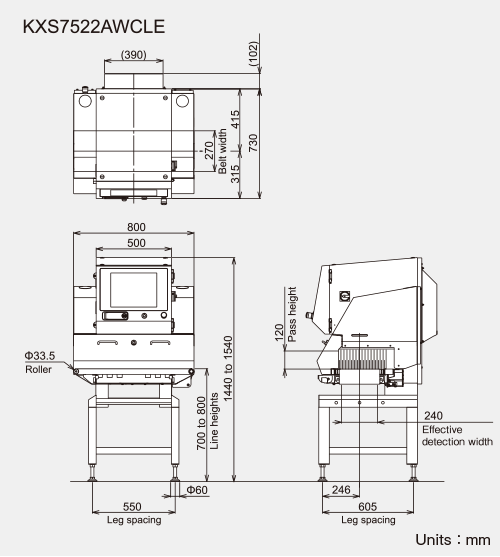

External Dimensions
Specifications
Library

Overview

Features
Description

The XR75 makes x-ray inspection more affordable to purchase, own and operate.

For dry/wet products
Protection class: IP66
X-ray output: Low power (max.100W)

Detection areas

A variety of models is available for a wide range of products. For details of detection areas, please submit an online inquiry form.

Model	Detection area
KXS7522AWCLE/AVCLE
KXS7534AWCLE/AVCLE

Related Links

Specifications

Model	KXS7522AWCLE
X-ray output	Tube voltage 30 to 80 kV, tube current 0.4 to 3.3 mA, output 12 to 100 W
Safety	X-ray leakage maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Display	15-inch color TFT LCD
Operation method	Touch panel (with touch buzzer)
Product size^{1, 2}	Maximum width 240 mm, maximum height 120 mm
Belt width	270 mm
Preset memory	200
Belt speed³ ／Maximum product weight⁴	10 to 60 m/min　maximum 5 kg
	60 to 90 m/min maximum 2 kg
	0 to 40 m/min　maximum 10 kg （optional）
Power requirements⁵	100 to 240 AC, single phase, 50/60Hz、700 VA or less (standard)
Mass⁶	225 kg
Environmental conditions⁷	Temperature: 0°C to 35°C, Relative humidity: 30% to 85%, non-condensing
Protection class	Conveyor IP66, other parts IP40
Exterior	Stainless steel (SUS304)

1: The detectable area is shown above. 2: The entrance and exit may require covers depending on the length of a product. 3: Variable depending on Product No. 4: Sum total of product weight on the conveyor. 5: Allowable power fluctuation range in ±10%. 6: Mass without option 7: Belt speed and maximum product weight are restricted at the temperature between 30℃ and 35℃.

Related Links

Library

Brochure

Brochure	Release Date
XR75 Series X-ray Inspection System Brochure	01/12/2022

IMAGES

VIDEOS

Multi-Lane Inspection Solution with Checkweigher and X-ray Inspection System
Space-saving and cost-effective combined solution with Multi-Lane Checkweigher and X-ray Inspection System improves the production efficiency.

XR75 Next Generation X-Ray Inspection Technology
The new XR75 X-Ray Inspection Model is the highest standard in X-Ray Inspection Technology. With a lifetime three times the conventional models, you will be able to reduce lifetime costs by 20% or more. Learn more about the XR75 X-Ray Model.

XR75 TCO (A.L.L.) Technology Introduction
Introduction of Anritsu's A.L.L. technology which significantly lowers Total Cost of Ownership of X-ray Inspection System.

X-ray inspection system for bulk flow
Contaminants can be detected at high sensitivity by feeding products in bulk before packaging as compared to feeding them after packaging.
