Specific Application: Multi-Lane Checkweigher

This space-saving checkweigher supports divided filling packaging and tube filling lines, enabling multi-lane inspection and centralized production record control with a single indicator.

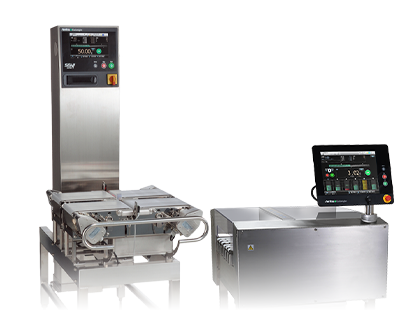

Multi-Lane Checkweigher

Compact, accurate and flexible

The next generation Multi-Lane Checkweigher comes in 150 models to accommodate nearly any line production application requiring high-speed precision weighing of small packaged products. With up to 12 independent lanes, Anritsu offers tremendous productivity in a space-efficient form factor.

Efficient, space-saving design

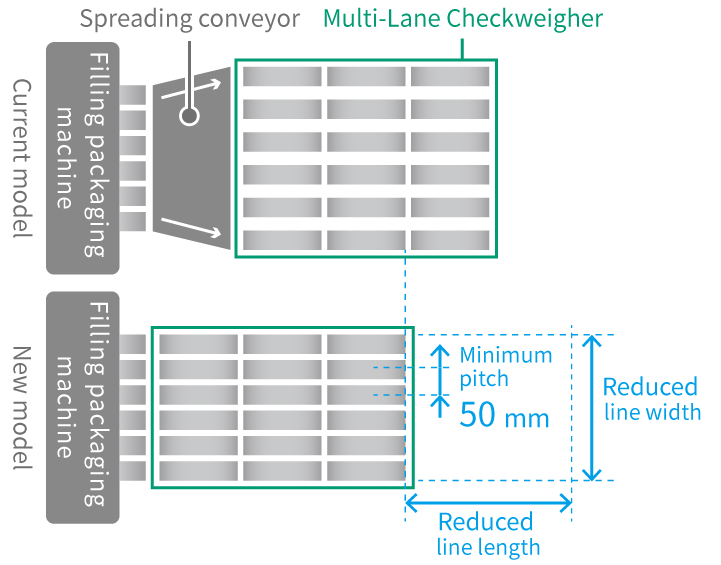

The space-saving design eases line integration.
The center pitch of the conveyor can be set to as little as 50 mm.
No extra spreading conveyors required as the checkweigher can receive packages at the same center pitch as that of a filling packaging machine. This ensures proper conveyance posture of the product.

Independent Lanes

Each lane can be individually started and stopped.
Each Lane can be individually configured for different products amd weight ranges(optional) for maximum system flexibility.

Dual-Lane Checkweigher

Ideal for weight inspection of products produced in dual lanes from high-speed filling machines, such as tube, pouch, and pillow packaging.

Dual-Lane Operation

Two independent weighing lanes controlled by a single indicator, enabling simultaneous inspection and reducing footprint.

Line-specific operation is possible

The two lines operate independently and can be activated. Furthermore, switching between them is easily accomplished via the operation screen.

Extensive product lineup

We offer a wide range of models, including high-precision models with a maximum accuracy of ±0.01 g and waterproof models.

DOWNLOAD BROCHURE CONTACT US

Solutions for pharmaceutical industries >

Checkweigher Product Page >

Overview
External Dimensions
Specifications
Library

Overview

Features
Description

A space-saving checkweigher for lines where multiple lanes of products are inspected with just one unit, such as a divided filling packaging or tube filling lines. The checkweigher allows centralized control of production records for multiple lanes with just one indicator.

External Dimensions

Below are the specifications for the multi-lane checkweigher. For information on other models, please contact us.

Related Links

Specifications

＊ MID (Measuring Instruments Directive, 2014/32/EU) not complied.

Model		KWS6233FP06
Lane		6
Weighing range		1.2 to 600 g
Scale interval		0.01 g
Maximum throughput ¹		200 products/min per lane
Maximum accuracy (3σ) ¹		±0.010 g
Display		15-inch color LCD
Operation method		Touch panel (Start, Stop, Home are direct push buttons)
Indication range		600.9 g
Preset memory		Maximum 50
Classification		2 (3 as an option)
Product size ²	Width	10 to 40 mm
	Length	46 to 230 mm
	Height	5 to 60 mm
Belt speed		15 to 60 m/min
Power requirements		100 Vac to 120 Vac +10% –15% or 200 Vac to 240 Vac +10% –15%, single phase, 50/60 Hz, 550 VA, rush current 30 A (typ.) (130 ms or less)
Air inlet (with exclusive-use rejector)		0.4 MPa to 0.9 MPa, 0.2ℓ [A.N.R.] (Maximum capacity per rejection operation per lane)
Mass		200 kg
Environmental conditions		0°C to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
Protection class		IP30 compliance
Exterior		Stainless steel (SUS304)
Data output		USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)

1: The speed and accuracy vary according to the products to be weighed, the rejector and setting conditions.
2: Consult us about semi-transparent and transparent products.

Note: The rejector may be self-standing type.
Note: The noise level of the checkweighers does not exceed 70 dB(A).
Note: Weighing range, accuracy, and throughput other than above are available at your request.
Note: Contact our sales representative for models other than 6 lanes (2 to 12 lanes).
