X-ray Inspection

XR76 Series

Detect Better. Waste Less. Operate Smarter. XR76 sets a new standard in X-ray inspection—delivering confidence, efficiency, and sustainability.

Bringing Ease and Peace of Mind to Your Production Sites

Anritsu delivers innovative solutions to address the challenges facing the food industry such as labor shortages, rising costs, and food waste. The XR76 series X-ray inspection systems not only improves detection performance but also contributes to labor savings through features such the revamped intuitive user interface, significant reduction in false detections, and long-life technology. This reduces re-inspection effort, simplifies equipment operation, reduces downtime, and food waste, bringing unprecedented efficiency and peace of mind to your production facilities.

Enhanced Detection Capability

A newly developed high-performance X-ray sensor has been adopted, significantly improving the resolution of X-ray images. It is now possible to capture fine structures and shapes clearly, enabling high-precision detection of minute metal contaminants and low-density foreign objects that were previously difficult to detect. This achieves up to 40% sensitivity improvement, contributing to enhanced product quality.

Increased Yield through Reduced False Rejects

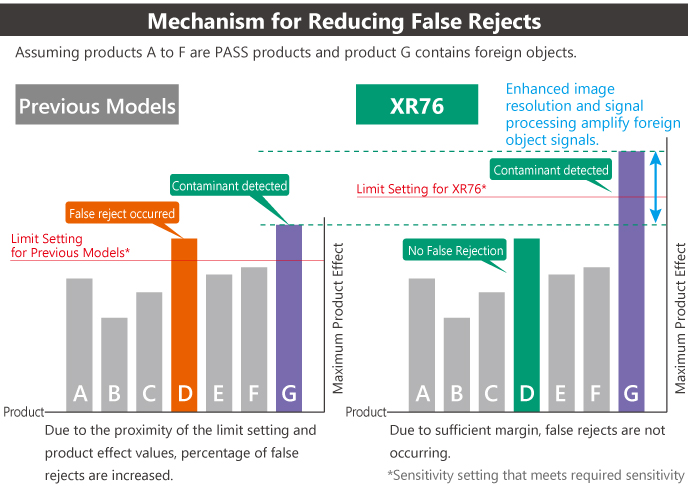

Improved detection performance enables setting detection limits with ample margin relative to required sensitivity levels. This significantly minimizes false reject rates and improves yield. Additionally, it reduces the effort required for re-inspection and contributes to reducing food loss.

Stabilized Detection on High-Speed Production

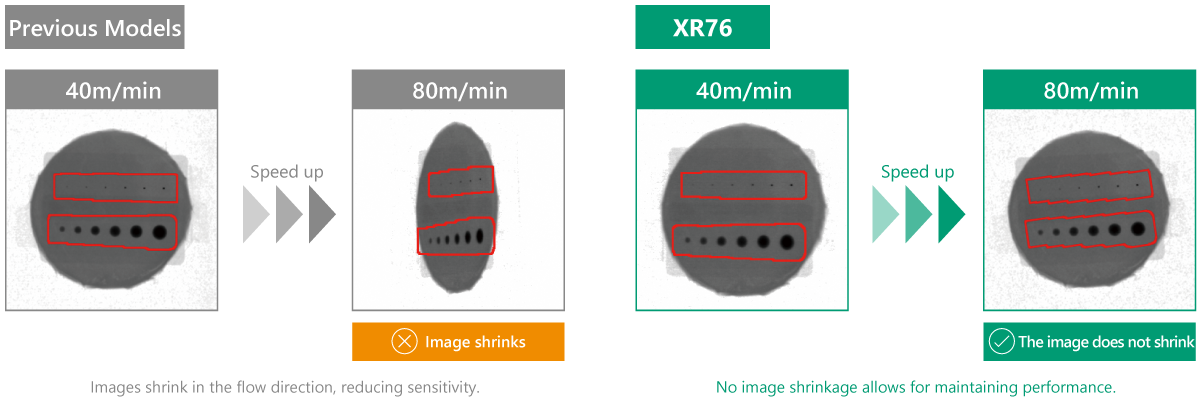

On high-speed production lines, conventional machines struggle with distorted X-ray images due to rapidly transported products, reducing foreign object detection levels. However, improvement in the sensor design on the XR76 allows for faster scan speeds producing clearer images with no distortion even at extremely higher belt speeds, significantly increasing detection performance.

1-Pass Product Setup

Using the 1-Pass Product Setup mode, product set-up time is　dramatically reduced, by entering basic information and passing a single　product sample through the machine. A safety margin is automatically　set for the limit values to reduce the false rejection rate. As a result, while　maintaining high levels of detection performance, manual adjustment　after automatic setup is no longer required*.

*Verification that the sensitivity meets your quality standard is still necessary.

Intuitive and User-Friendly Operability

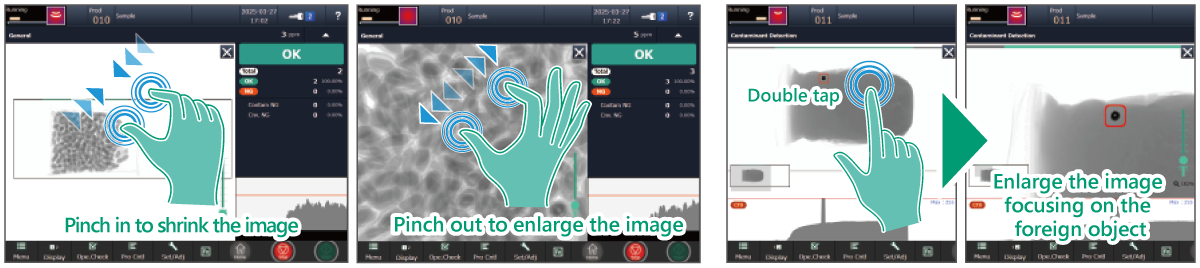

The newly developed screen design and user interface enable operation as intuitive as using a smartphone. Intuitive operation includes pinch-in/out for zooming X-ray images, double-tapping to enlarge foreign object areas, and swiping to scroll through lists.

For further product detail, please refer to the product brochure which you can download from the button below.

DOWNLOAD BROCHURE contact us

X-ray Product Top Page >

Overview
External Dimensions
Specifications

Overview

Features
Description

Enhanced Detection Capability
Increased Yield through Reduced False Rejects
1-Pass Product Setup
Intuitive and User-Friendly Operability
Stabilized Detection on High-Speed Production
A.L.L. Technology: Minimizing TCO and Downtime
Variety of Quality Inspection Functions Available

Detect Better. Waste Less. Operate Smarter. XR76 sets a new standard in X-ray inspection—delivering confidence, efficiency, and sustainability.

External Dimensions

Related Links

Specifications

Model	KXS7622AVCTV	KXS7634AVCTV
Detection area^{1, 2}	Maximum width 240 mm, maximum height 120 mm	Maximum width 390 mm, maximum height 220 mm
Belt width	270 mm	420 mm
Conveyor speed/Maximum product weight³	10 to 60 m/min, maximum 5 kg	10 to 60 m/min, maximum 5 kg
Conveyor speed/Maximum product weight³	61 to 90 m/min, maximum 2 kg	-
Mass⁴	230 kg	290 kg
Display	15-inch LCD with capacitive touch panel
Exterior	Stainless steel (SUS304)
Preset memory	1000 (initial setting: 200)
X-ray output	Tube voltage 30 to 80 kV (accuracy: within ±3 %), tube current 0.4 to 3.3 mA (accuracy: within ±5 %), maximum 100 W
Safety	X-ray leakage maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Environmental conditions	Temperature: 0°C to 35°C, Humidity: 30 % to 85 %, non-condensing
Power requirements	100 Vac to 240 Vac, single phase, 50/60 Hz, 700 VA or less, Allowable power fluctuation range ±10 %
Protection class	IP66⁵

1: The product size should fall below the detection area.
2: The entrance and exit may require covers depending on the length of a product.
3: Sum total of product weight on the conveyor.
4: Mass without option.
5: Waterproof protection class is equivalent to IPX6, excluding the duct. Dustproof protection class is equivalent to IP6X excluding negative pressure condition.
Note: The noise level of the KXS7622AVCTV is 72 dB(A) in terms of A-weighted sound pressure level. The noise level of the KXS7634AVCTV is 70 dB(A) in terms of A-weighted sound pressure level.

Related Links

Library

VIDEOS

XR76 Series X-ray Inspection System
The XR76 series thoroughly pursues labor-saving by significantly reducing false detections, offering intuitive operation similar to a smartphone, and incorporating long-life technology.

Discover XR76 Series: Enhanced Detection Capability
Discover the enhanced detection capabilities of the XR76 series, equipped with a newly developed X-ray sensor. This video highlights the significant improvement in contaminant detection sensitivity compared to the previous model.

Discover XR76 Series: Increased Yield through Reduced False Rejects

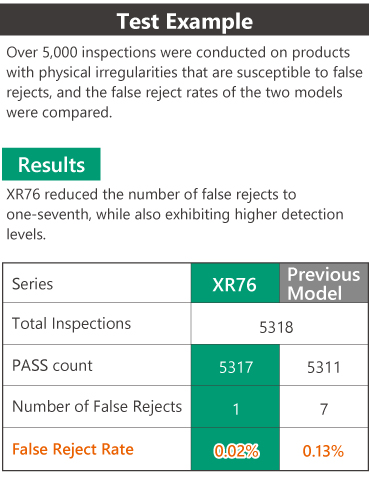

With improved detection performance, the XR76 achieves higher sensitivity and minimizes false rejects. This video features a demonstration comparing false reject rates between the previous model and the XR76, using 7,000 actual products.
